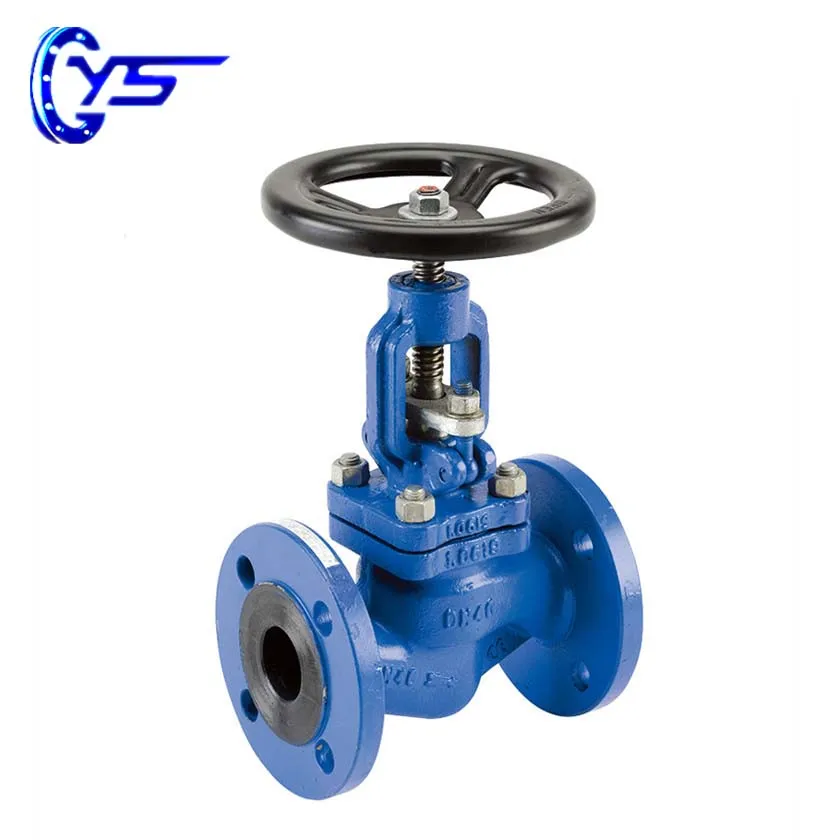

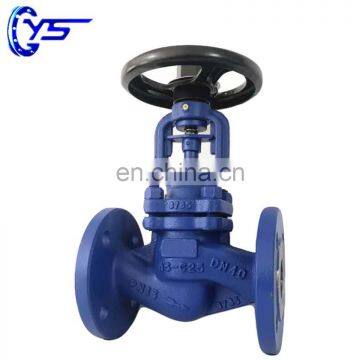

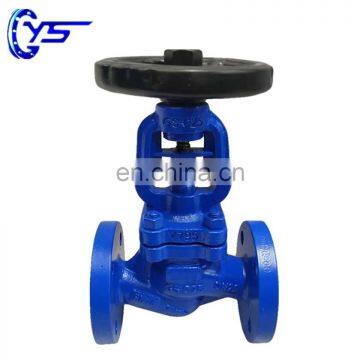

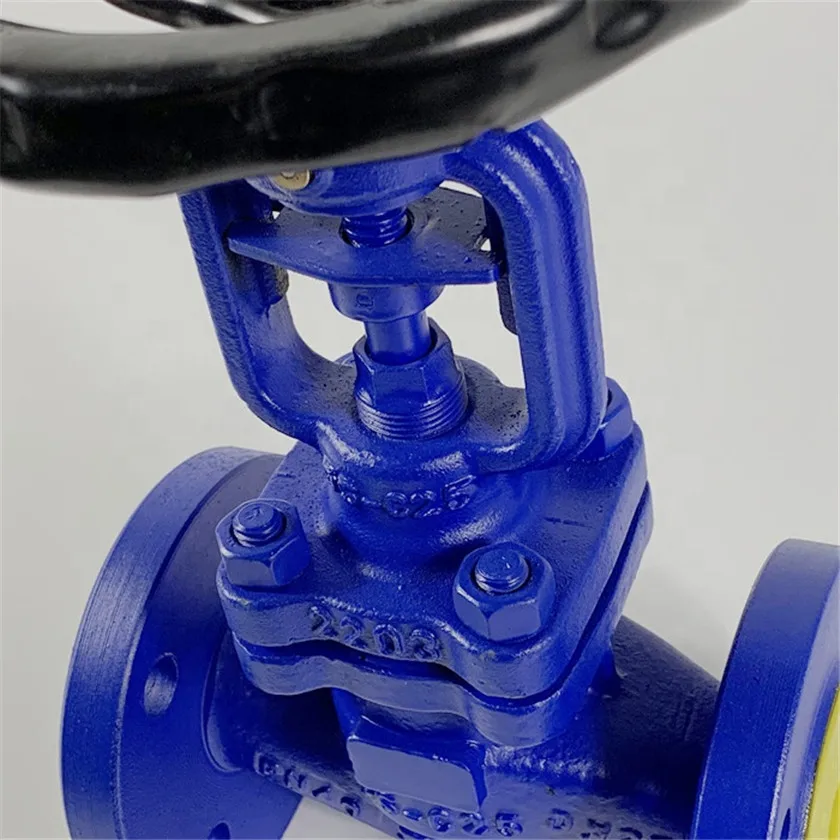

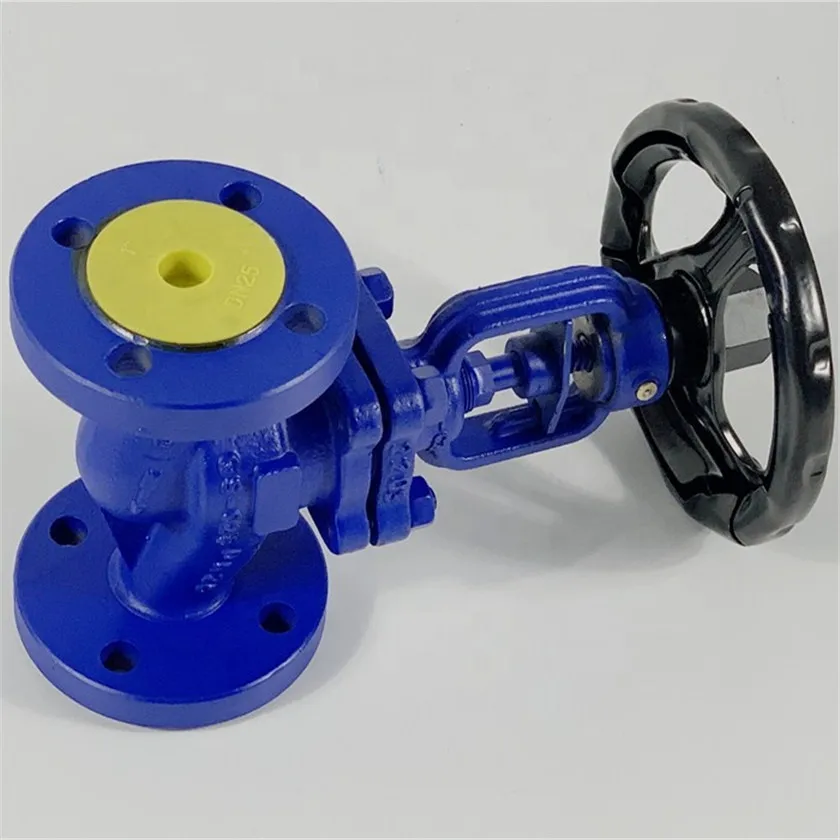

Bellows Globe Valve With Hand Wheel For Agriculture And Industry

Name: Bellows Globe Valve With Hand Wheel For Agriculture And Industry
Brand: YaoSheng
Availability: InStock

FOB Price

US$ 30.26 - 31.54 / Piece

10 Pieces(Min. Order)

Port Tianjin/Shanghai/Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YaoSheng	Place of Origin	Hebei, China
Model Number	WJ41H-16	Application	General
Power	Manual	Port Size	DN15~DN200
Media	Base

Product Description

The sylphon bellows globe valve produced by HebeiYaosheng IM&EX Trading Co., LTD is extensively used in petro-chem industry, pharmacy and power industry ect.And it is applicable to the pipelines where the nominal pressure is ≤1.6Mpa by functions of open/close.

Main parts and materials
No.	Main parts	Materials
1	Valve bady	Grey Iron
2	Bonnet	Grey Iron
3	Sylphon bellows	Stainless steel
4	Stem	Stainless steel
5	Yoke nut	Ductile Iron

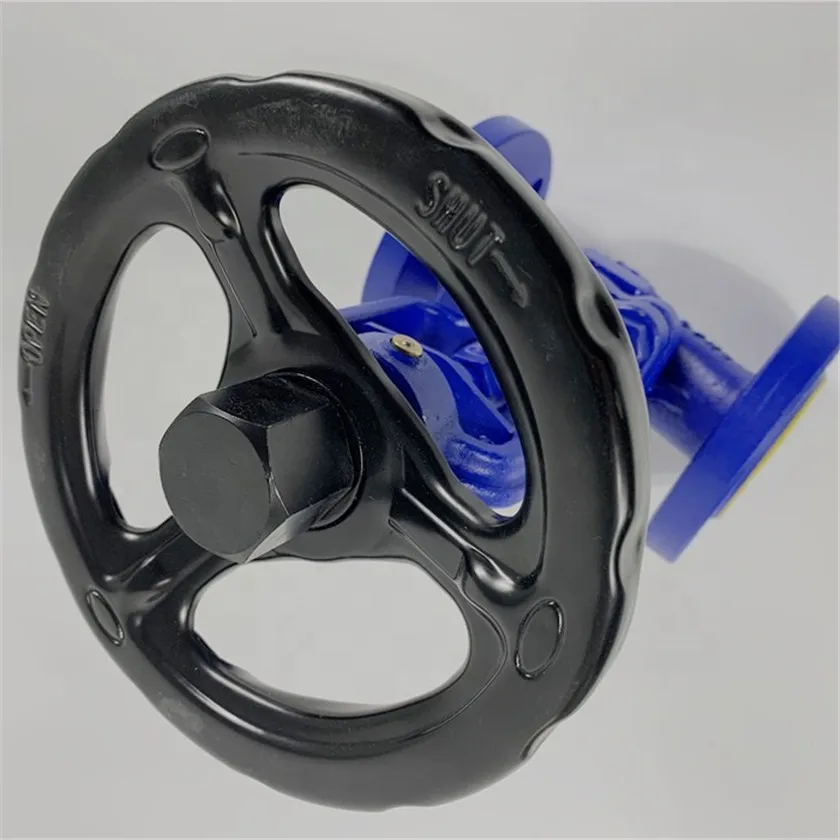

6	Hand wheel	Grey Iron

Function and specification
Type	PN(MPa)	Testing pressure (MPa)			Suitable temperature(℃)	Suitable medium
Type	PN(MPa)			Strength (water)	Suitable temperature(℃)	Suitable medium	Enclose (water)
WJ41H-16	1.6	2.4	0.6	≤200	Vapour, Water, Oil

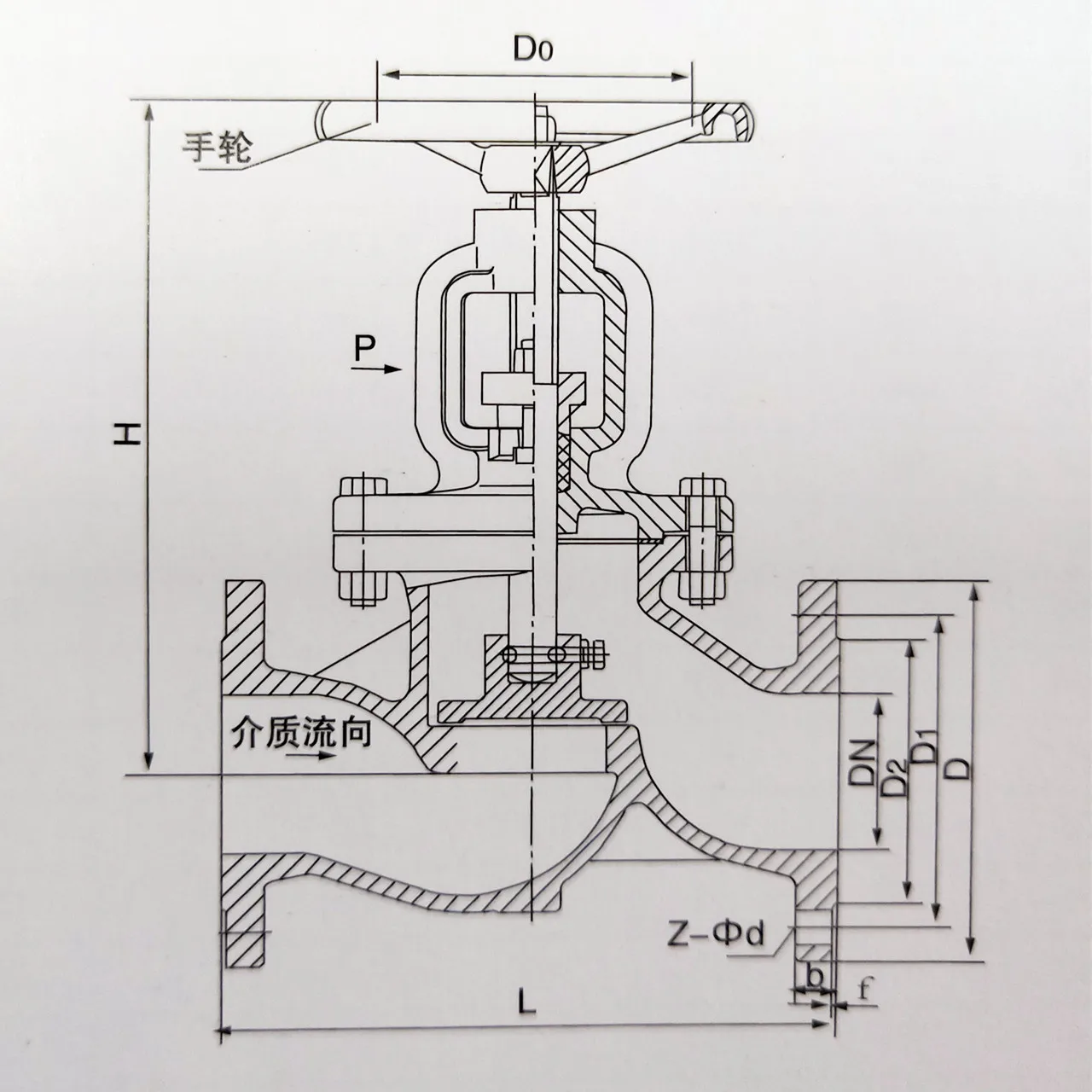

Outline and connecting measurement
Type	DN(mm)	Measurement(mm)						Reference Weight(kg)
Type	DN(mm)			L	D1	H	Z-Фd	Reference Weight(kg)
WJ41H-16	15	130	65	200	4-14	3.25
		20	150	75	200	4-14	4.1
		25	160	85	220	4-14	5.5
		32	180	100	225	4-19	7.9
		40	200	110	260	4-19	9.3
		50	230	125	285	4-19	12.6
		65	290	145	300	4-19	19.5
		80	310	160	341	8-19	27.1
		100	350	180	366	8-19	38.75
		125	440	210	432	8-19
		150	480	240	464	8-23

Tips:

1.The utility model has the advantages of simple structure and convenient manufacture and maintenance.

2.The working distance is small and the opening and closing time is short.

3.Good sealing, low friction between sealing surfaces and long service life.

Production process

Product packaging

We usually use plastic bags and cartons to packing the valve .

Cartons usually are located on pallets
We also pack the valve by plywood cases

Company Profile

Hebei Yaosheng IM & EX Trading Co., Ltd located in B # industrial park, Xushui district, Baoding city, Hebei province, is a professional company integrating the research, development, manufacture and sales.

Standards such as GB, JB, US API, ANSI, British BS, German DIN, Japanese JIS, GOST, and French NF are mainly adopted. There are about 100 series of products, such as, gate valve, globe valve, check valve, ball valve, butterfly valve, bottom valve, drain valve, filter, and flange, which have been widely used in fields of petroleum, petrochemical, chemical, electric power, construction, medicine, water supply and drainage.

Products have been widely launched in the market of European and Middle East and Southeast AISA, mainly including the United States, Romania, Spain, Vietnam, Indonesia, Malaysia, Russia, Kazakhstan, Ukraine and other countries.

Certifications

Exhibition

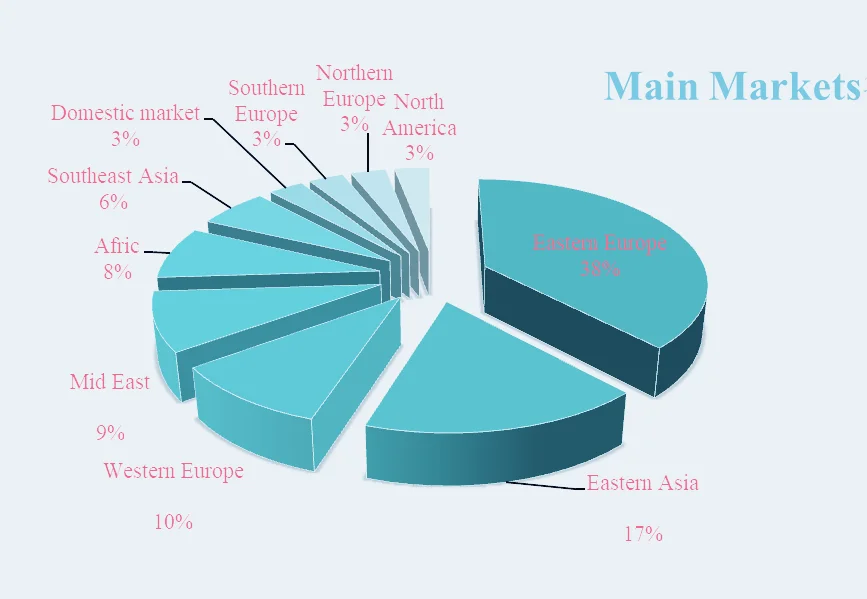

Main Markets
