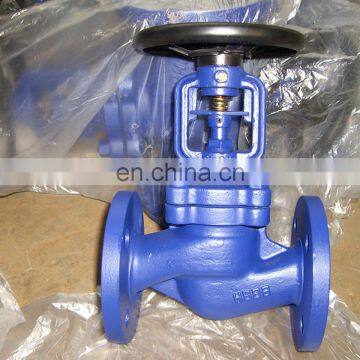

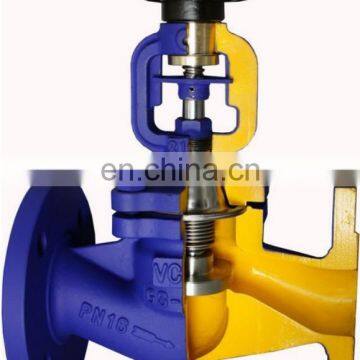

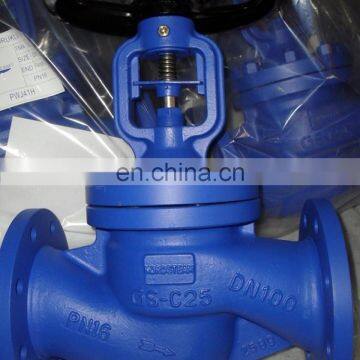

Low Temperature DWJ41H DN80 DN100 Bellows Globe Control Valve

Name: Low Temperature DWJ41H DN80 DN100 Bellows Globe Control Valve
Brand: YaoSheng
Availability: InStock

FOB Price

US$ 28.43 - 29.36 / Piece

10 Pieces(Min. Order)

Port Tianjin/Shanghai/Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YaoSheng	Place of Origin	Hebei, China
Model Number	DWJ41H-16/25/40	Application	General
Power	Manual	Port Size	DN15~DN300
Media	Base

Product Description

The low temperature sylphon bellows globe valve produced by HebeiYaosheng IM&EX Trading Co., LTD is extensively used to pipelines such as petroleum industry, medicine, power etc and the working pressure of medium is 1.6/4.0 Mpa, working temperature of the medium is -20~350℃.

Main parts and materials
No.	Main parts	Materials
1	Valve bady	Stainless Steel
2	Bonnet	Stainless Steel
3	Stem	Stainless steel
4	Yoke nut	Grey Iron
5	Sylphon bellows	Stainless steel

Function and specification
Type	PN(MPa)	Testing pressure (MPa)			Suitable temperature(℃)	Suitable medium
Type	PN(MPa)			Strength (water)	Suitable temperature(℃)	Suitable medium	Enclose (water)
DWJ41H-16	1.6	2.4	1.8	-20~350	Vapour, Water, Oil
DWJ41H-25	2.5	3.8	2.8
DWJ41H-40	4.0	6.0	4.4

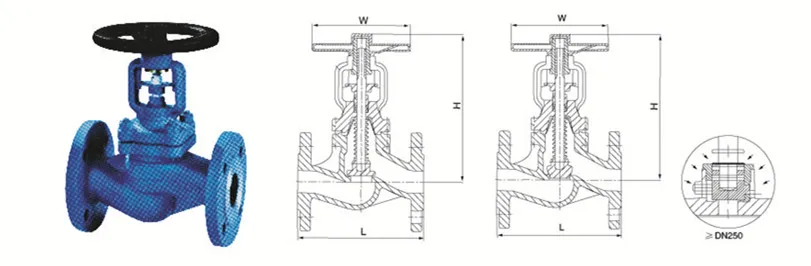

Outline and connecting measurement
Type	DN(mm)	Measurement(mm)						Reference Weight(kg)
Type	DN(mm)			L	W	H	h	Reference Weight(kg)
PN16	15	130	120	195	7	4.2
		20	150	120	195	7	7.4
		25	160	140	207	12	12
		32	180	140	218	13	19
		40	200	160	225	14	30
		50	230	180	230	15	47
		65	290	180	272	19	77
		80	310	200	290	23	120
		100	350	250	355	28	188
		125	440	300	410	35	288
		150	480	300	425	42	410

Tips:

1.The utility model has the advantages of simple structure and convenient manufacture and maintenance.

2.The working distance is small and the opening and closing time is short.

3.Good sealing, low friction between sealing surfaces and long service life.

Production process

Product packaging

(1)we usually use cartons to package our valve.

(2)We also use plywood cases to package our valve.

(3)One 20' container can in bulk loaded on 20pcs plywood cases more or less.

(4)We can pack according to specific customers' requests.

(5)Customers' logos are available on package of the ball valve

Company Profile

Hebei Yaosheng IM & EX Trading Co., Ltd located in B # industrial park, Xushui district, Baoding city, Hebei province, is a professional company integrating the research, development, manufacture and sales.

Standards such as GB, JB, US API, ANSI, British BS, German DIN, Japanese JIS, GOST, and French NF are mainly adopted. There are about 100 series of products, such as, gate valve, globe valve, check valve, ball valve, butterfly valve, bottom valve, drain valve, filter, and flange, which have been widely used in fields of petroleum, petrochemical, chemical, electric power, construction, medicine, water supply and drainage.

Products have been widely launched in the market of European and Middle East and Southeast AISA, mainly including the United States, Romania, Spain, Vietnam, Indonesia, Malaysia, Russia, Kazakhstan, Ukraine and other countries.
