Russian Standard Cast Steel Flange Gate Valve PN16 DN80
- tianjin ningbo shanghai
- T/T Credit Card
You May Like
-
March Expo Chinese Supplier 1600mm Gate Valve Russian Cast Steel Gost Gate Valve With CE Certificate
-
GOST WCB Gate Valve Py16 With Good Prices Made in China
-
GOST Flange Type 8 Inch PN10/16 Cast Steel Wedge Manual Gate Valve
-
Gost Cast Steel Valve Z41h-16c Rising Stem Gate Valve Manufacturer
-
GOST RUSSIA WCB GATE VALVE
-
GOST Flanged Gate Valve Manufacturer
Product Details
| Brand Name | HBYS | Place of Origin | Hebei, China | |
| Model Number | Z41H-16C | Material | Casting | |
| Application | General | Structure | Gate | |
| Standard or Nonstandard | Standard | Pressure | Low Pressure | |
| Power | Manual | Port Size | Standard | |
| Media | Water |
Product Description

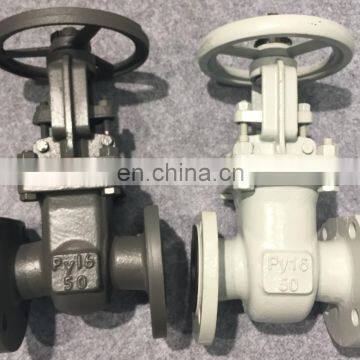

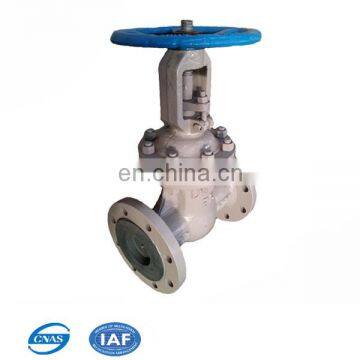

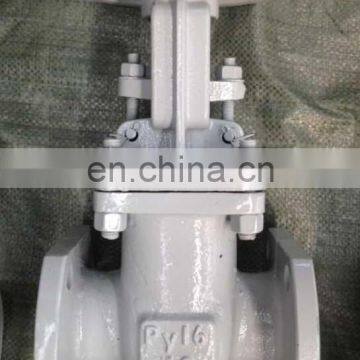

Russian standard cast steel flange gate valve PN16 DN80
The gate valve can only be fully opened and fully closed to be used for cutting in the pipeline. It has such features as unlimited installation direction, small disturbed current, low pressure drop, shorter face-to-face dimension, good sealing performance and wide application range. The most important feature of the steel gate valve of
Hebei Yaosheng IM & EX Trading Co.,Ltd. is that it can be ensured that Good sealing performance.

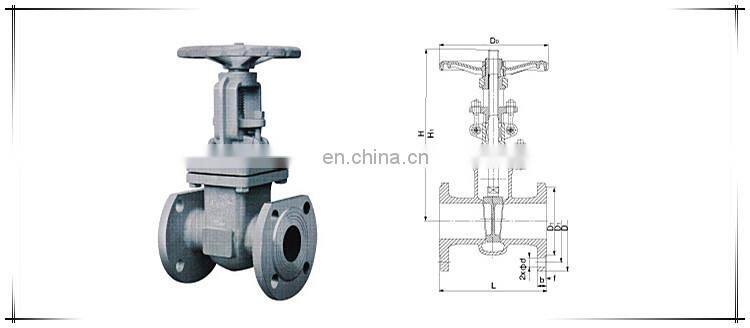

♦ Product structure chart
♦ Main parts and materials
| Parts name | Material |
| Valve body Bonnet | WCB |
| Disc | WCB+Stainless steel |
| Stem | Carbon steel Stainless steel |
| Yoke nut | Brass |
♦ Function and specification
| Type | Nominal pressure | Testing pressure | Suitable temperature | Suitable medium | |
| Z41H-16C | 1.6 | Strength(Water)(MPa) | Enclose(Water)(MPa) | ≤425 | WaterVapourOil |
| 2.4 | 1.8 | ||||
♦ Outline and connecting measurement
| Type | Nominal DN(mm) | Measurement(mm) | Reference Weight(kg) | ||||||||
| L | D | D¹ | D² | b-f | Z×Φd | H | H¹ | D° | |||
| Z41H-16C | 50 | 180 | 160 | 125 | 102 | 16-3 | 4×Φ18 | 288 | 341 | 180 | 15.5 |
| 80 | 210 | 195 | 160 | 133 | 18-3 | 4×Φ18 | 343 | 426 | 215 | 26 | |
| 100 | 230 | 215 | 180 | 158 | 20-3 | 8×Φ18 | 392 | 486 | 245 | 35.5 | |
| 150 | 280 | 280 | 240 | 240 | 24-3 | 8×Φ22 | 559.5 | 704 | 275 | 69 | |
| 200 | 330 | 335 | 295 | 295 | 26-3 | 12×Φ22 | 696 | 896 | 320 | 108 | |
Hebei Yaosheng IM & EX Trading Co.,Ltd Locates in the B zone of Xushui Industrial Park of China Hebei province,which is Chinese largest corporation of High-middle-low Pressure Valve and flange.
Our corporation is the provincial-level high and new technology enterprise, which owns the power to engage in import and export trade, and the HBYS brand is rated as "the famous brand in Hebei Province", the HBYS series of products win the title of "the famous-brand product of Hebei", and it is the first class supplier of oil and gas group.
The company products has already explored the European and American, South Korean markets, most of the products also far sold to the Russia, Pakistan, Kazakhstan, Ukraine, Vietnam, Indonesia, Malaysia, Thailand, Dubai and other countries, and the products win the trust and good reputation of the customers.

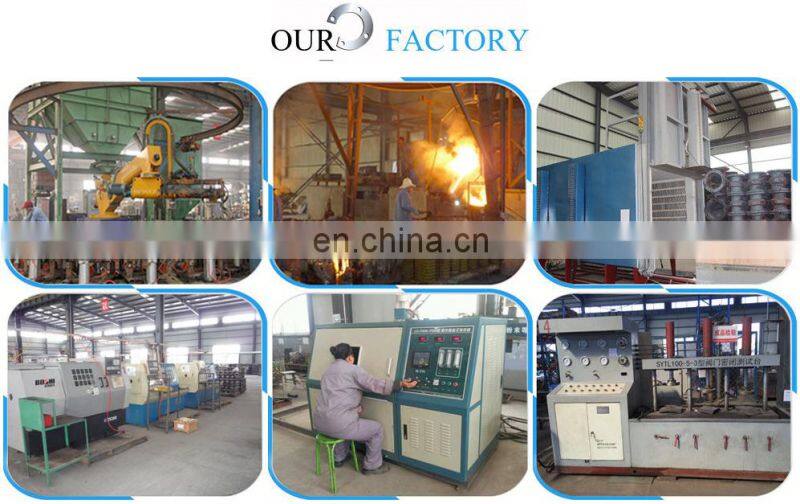

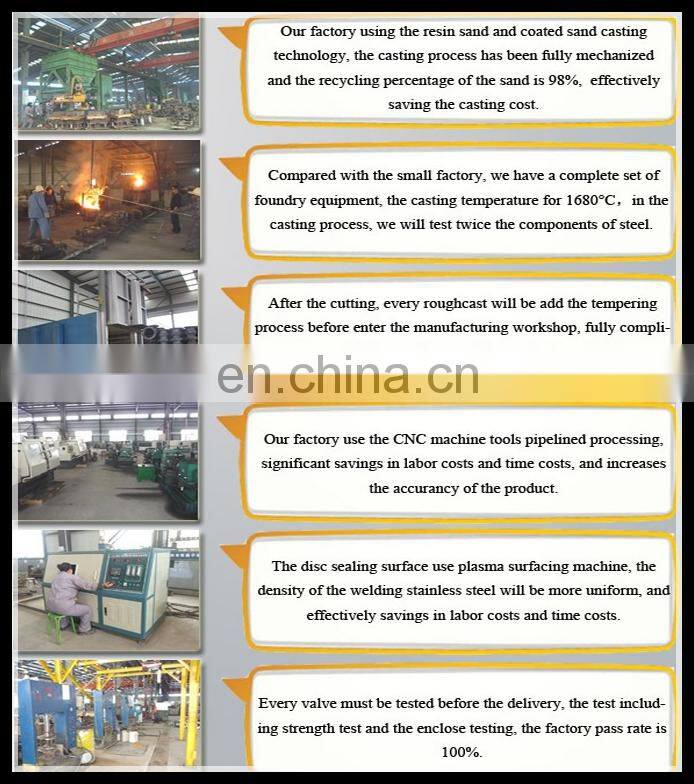

OUR GATE VALVES FACTORY

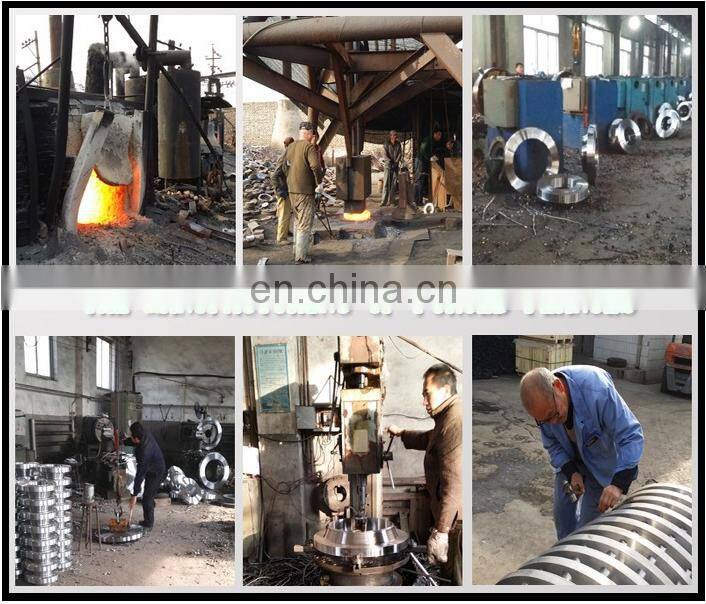

OUR FLANGES FACTORY
(1)we usually use paking palletized to package our gate valve
(2)we also use plywood cases to package our gate valve
(3)One 20' container can in bulk loaded on 20pcs plywood cases more or less.
(4)We can pack according to specific customer requests.
(5)Customers' logos are available on package of the gate valve.
