Home > Products > IRON VALVE > 8 inch ductile cast iron resilient seated water gate valve pn16

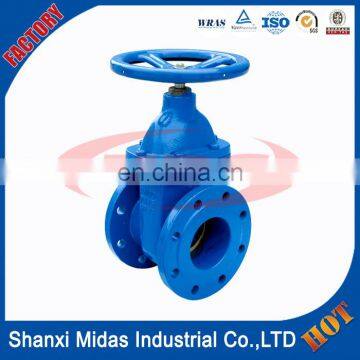

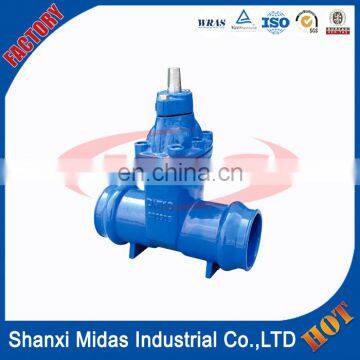

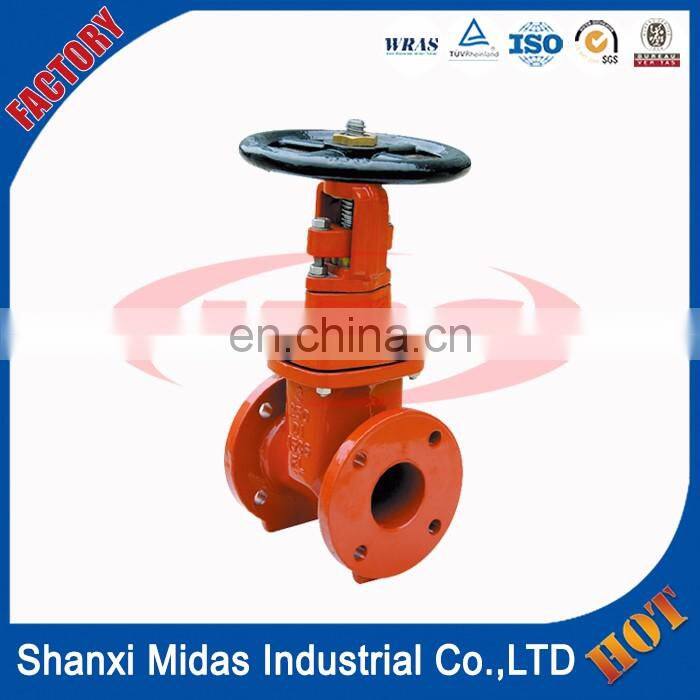

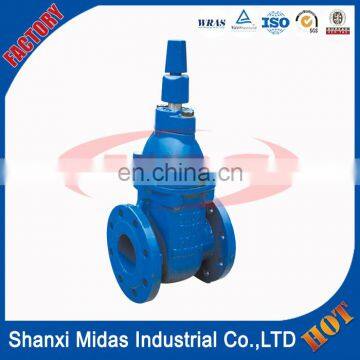

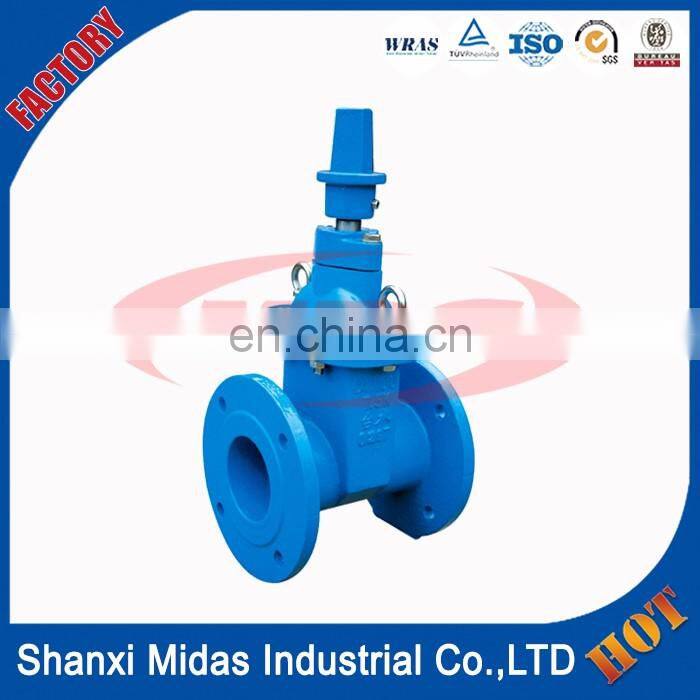

8 inch ductile cast iron resilient seated water gate valve pn16
- 100000 Piece / Pieces per Month
- Tianjin Qingdao
- T/T Credit Card
You May Like
-
ductile cast iron non rising stem gate valve 3 inch for hdpe pipe
-
4 inch ductile cast iron ggg50 water gate valve for pvc pipe
-
DIN3352 /EN1171 36 inch ductile cast iron ggg50 big size resilient seated flanged gate valve
-
50mm ductile cast iron ggg50 manual slide DIN 3355 F5 metal seated gate valve PN16
-
ansi b 16.34 gg25 carbon steel flange globe valve
-
ductile cast iron automatic double orifice air release valve PN16
Product Details
| Brand Name | MDS | Place of Origin | Shanxi, China | |
| Model Number | gate valve | Material | Casting | |
| Application | General | Structure | Gate | |
| Standard or Nonstandard | Standard | |||
| Power | Manual | Port Size | DN40-DN600mm | |
| Temperature of Media | Normal Temperature |
Product Description
8 inch ductile cast iron resilient seated water gate valve pn16
1 | Standard | DIN 3352-F4 ,DIN 3352-F5, BS5163, AWWA C509 ,AWWA C515 Flange drilling is according to DIN2501, BS4504 and ANSI B16.1 PN10,PN16,PN25 | |
2 | Type | Flanged End , Socked End ,Mechanical Joint, non rising stem / rising stem | |
3 | Material | Body | Ductile iron GGG40/50 or Cast IronGG25 |
Wedge | Ductile iron GGG40/50+EPDM/NBR or metal seated | ||
Stem | stainless steel 2Cr13 , SS304,SS316 | ||
Bolt and Nuts | Carbon Steel with zinc plated or SS304,316 | ||
4 | Port Size | DN40-DN600 | |
5 | Pressure | PN10/PN16/PN25 | |
6 | Media | Water, oil, gas, etc | |
7 | Coating | Internal and external with fusion bonded epoxy coating min250μm | |
8 | Packaging | Plywood case | |

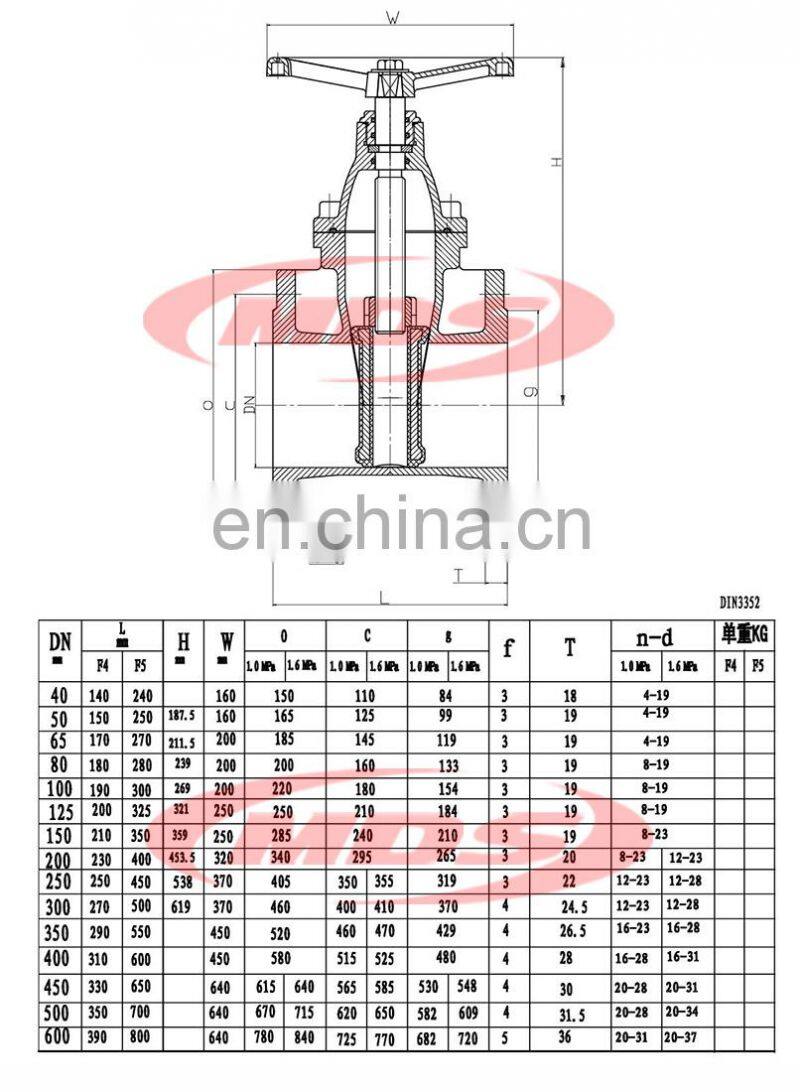

NO. | PART NAME | MATERIAL |
1 | BODY | DUCTILE IRON |
2 | WEDGE | DUCTILE IRON |
3 | STEM NUT | BRASS |
4 | STEM | STAINLESS STEEL |
5 | GASKET | NBR |
6 | BONNET | DUCTILE IRON |
7 | BONNET BOLT | CARBON STEEL |
8 | O-RING | NBR |
9 | LOCATING RING | BRASS |
10 | O-RING | NBR |
11 | BONNET NUT | BRASS |
12 | MINIPAD | TFL |
13 | DUST RING | NBR |
14 | WHEEL | DUCTILE IRON |
15 | WASHER | CARBON STEEL |
16 | BOLT | CARBON STEEL |
It’s our pleasure to serve the water and wastewater industry, We hope we get the opportunity to do business with you soon!
Shanxi Midas Industrial Co.,LTD
Email: info#(#=@)
Tel: 0086-351-5257620
1. How is your price?
A: Although we have brand-name products, our prices are very favorable and competitive.Because of our best price, customers from all over the world come to purchase our products.
2. How long is your warranty?
A: Our Warranty is 12 month.
3. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
4. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
5. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
6. Could you specially design and produce for clients?
A: Sure, we have all kinds of professional engineers.We can design and produce special products according to customers' request. Such as: special size, special control, OEM, etc.
7. What’s the MIDAS main market?
A: Our main market is African, Middle East Countries, South American, Asian.
8. What’s your payment?
1) 100% T/T
2) 30% in advance, others before shipment.
3) L/C
