China Manufacturing Ductile cast iron Manual Concentric Lug Wafer Butterfly Valve



China Manufacturing Ductile cast iron Manual Concentric Lug Wafer Butterfly Valve

NO Parts Name  Material
1 body Cast iron/ductile iron/stainless steel/carbon steel
2 upper shaft SS416/carbon steel/tianium steel/ SS316/monel
3 disc AI-Bronze/monel/CF8M/WCB/ductile iron
4 seat EPDM/PTFE/buna/hypalon/viton/neoprene
5 bushing P.T.F.E/lubricating
6 O-ring EPDM/buna/hypaion/viton/neoprene
7 pin SS416/carbon steel/tianium steel/SS316/monel



Outline Dimensions&Connection Dimensions(mm)&Weight(kg)

SIZE A B C D d0 L ISO5211 K E 4-d D0 N-M HXH & Weight(kg)
2'' 161 80 42 52.7 12.6 32 F07 90 70 4-9 125 4-M16 11×11 90 3.8
2.5'' 175 89 45.8 64.4 12.6 32 F07 90 70 4-9 145 4-M16 11×11 90 4.2
3'' 181 95 45.8 74.7 12.6 32 F07 90 70 4-9 160 8-M16 11×11 45 4.7
4'' 200 114 52 104 15.77 32 F07 90 70 4-9 180 8-M16 11×11 45 9.0
5'' 213 127 55 123.3 18.92 32 F07 90 70 4-9 210 8-M16 14×14 45 10.9
6'' 226 139 55.8 155.6 18.92 32 F07 90 70 4-9 240 8-M20 14×14 45 14.2
8'' 260 175 61.6 202.5 22.1 45 F10 125 102 4-12 295 12-M20 17×17 30 18.2
10'' 292 203 67.2 250.5 28.45 45 F10 125 102 4-12 355 12-M24 22×22 30 26.8
12'' 337 242 76.9 301.5 31.6 45 F10 140 102 4-12 410 12-M24 22×22 30 40
14'' 368 267 76.9 333.3 31.6 45 F10 140 102 4-12 470 16-M24 22×22 22.5 56
16'' 400 309 86.5 389.6 33.15 52 F14 197 140 4-18 525 16-M27 27×27 22.5 96
18'' 422 328 105.6 440.5 38 52 F14 197 140 4-18 585 20-M27 27×27 18 122
20'' 480 361 131.8 491.6 41.15 65 F14 197 140 4-18 650 20-M30 36×36 18 202
24'' 562 459 151.36 592.5 50.65 70 F14 276 165 4-20 770 20-M33 36×36 18 270

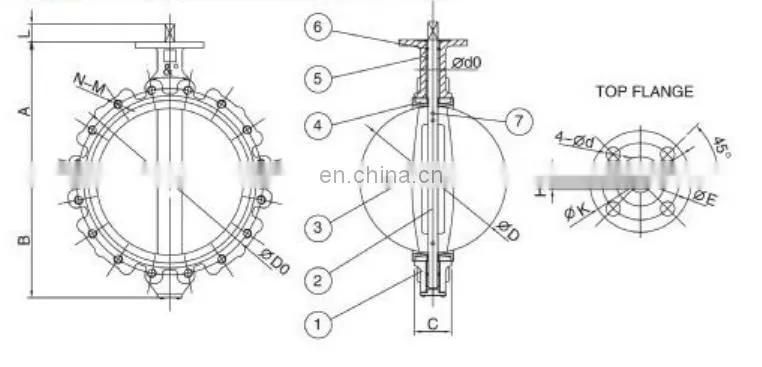

Product Drawing
