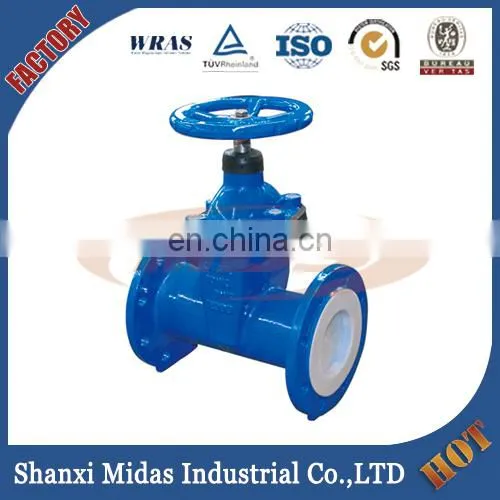

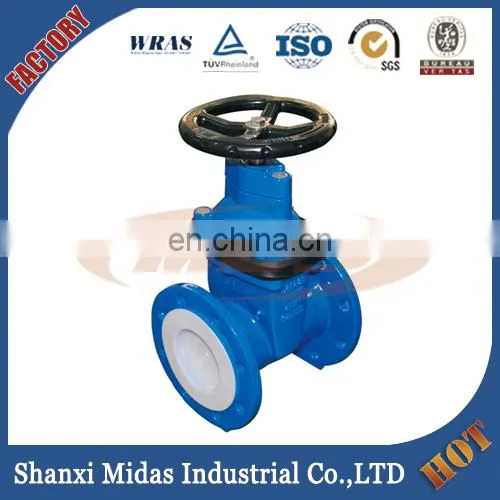

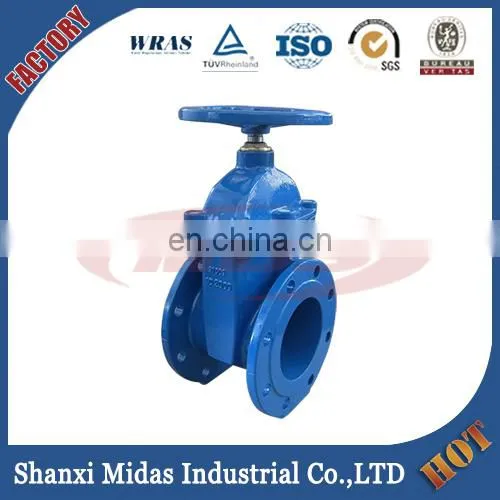

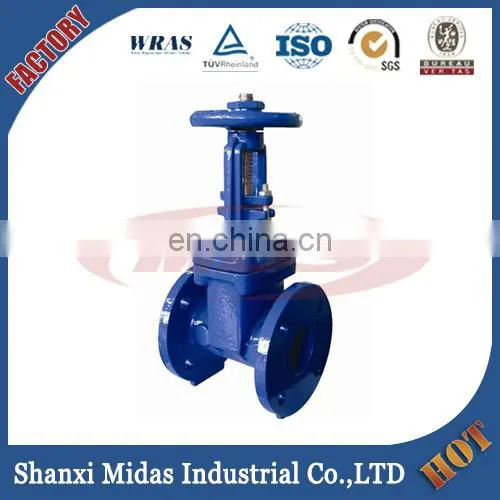

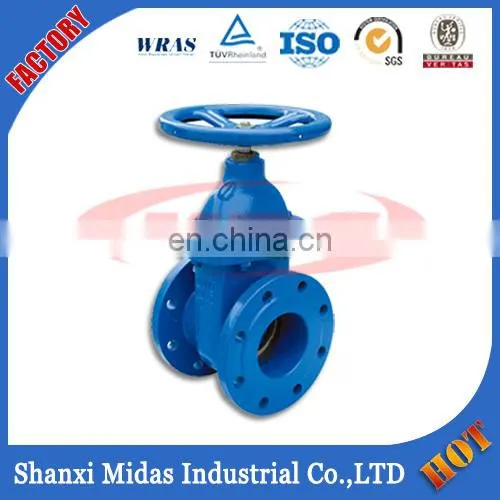

DIN F4 NRS metal seated cast iron gate valve,stem gate valve 3 inch, sluice water gate valve
| 1 | Product Name | PN10/16/25 Ductile iron DIN 3352 gate valve |
| 2 | Port Size | DN40-DN600 |
| 3 | Media | Water |
| 4 | Temperature | Medium Temperature |
| 5 | Power | Hydraulic |
| 6 | Pressure | PN10/PN16/PN25 |
| 7 | Structure | Gate |
| 8. | Payment | T/T, L/C,etc |
| 9 | Packing | Plywooden case |
2.MAIN PARTS AND MATERIALS
NO. |
PART NAME | MATERIAL |
| 1 | BODY | DUCTILE IRON |
| 2 | WEDGE | DUCTILE IRON |
| 3 | STEM NUT | BRASS |
| 4 | STEM | STAINLESS STEEL |
| 5 | GASKET | NBR |
| 6 | BONNET | DUCTILE IRON |
| 7 | BONNET BOLT | CARBON STEEL |
| 8 | O-RING | NBR |
| 9 | LOCATING RING | BRASS |
| 10 | O-RING | NBR |
| 11 | BONNET NUT | BRASS |
| 12 | MINIPAD | TFL |
| 13 | DUST RING | NBR |
| 14 | WHEEL | DUCTILE IRON |
| 15 | WASHER | CARBON STEEL |
| 16 | BOLT | CARBON STEEL |
It’s our pleasure to serve the water and wastewater industry, We hope we get the opportunity to do business with you soon!
Shanxi Midas Industrial Co.,LTD
Email: info#(#=@)
Tel: 0086-351-6814868
1. How is your price?
A: Although we have brand-name products, our prices are very favorable and competitive.Because of our best price, customers from all over the world come to purchase our products.
2. How long is your warranty?
A: Our Warranty is 12 month.
3. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
4. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
5. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
6. Could you specially design and produce for clients?
A: Sure, we have all kinds of professional engineers.We can design and produce special products according to customers' request. Such as: special size, special control, OEM, etc.
7. What’s the MIDAS main market?
A: Our main market is African, Middle East Countries, South American, Asian.
8. What’s your payment?
1) 100% T/T
2) 30% in advance, others before shipment.
3) L/C
