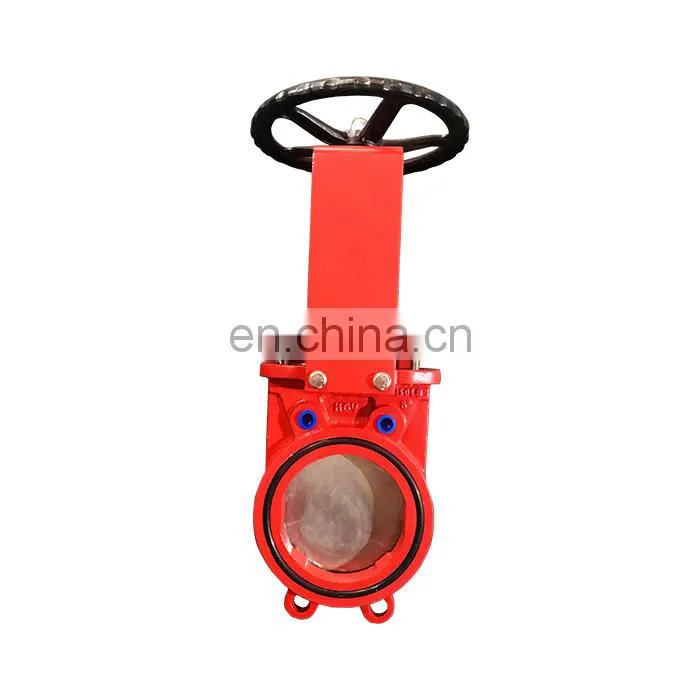

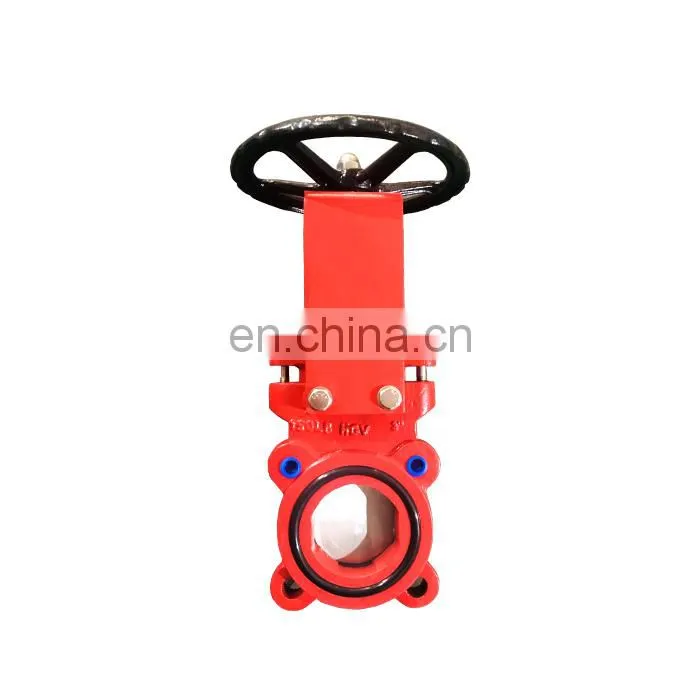

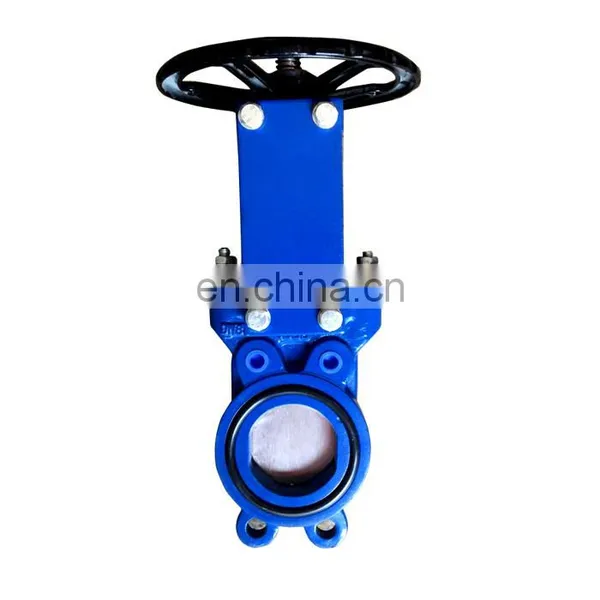

DN50 DIN Ductile Cast Iron Soft Seat Knife Gate Valve PN10
|
1 |
DESIGN STANDARD |
DIN / ANSI |
|
2 |
PRESSURE |
DN50 to DN400: 10 bar |
|
3 |
SIZE |
DN50/2'' to DN600/24'' |
|
4 |
MATERIALS |
Body: GGG40 |
|
5 |
KNIFE: |
AISI304 / AISI316 |
|
6 |
PACKING: |
Synth+PTFE, Graphite, o-ring |
|
7 |
SEAT |
Abrasion-resistant Natural Rubber (NR) Sleeves |
|
8 |
OPERATION TYPE |
Handwheel, Lever, Bevel Gear, Pneumatic, Hydraulic and Electric actuator. |
|
9 |
SECTORS |
Mineral Processing / Pulp and Paper / Steel Industry |
|
10 |
APPLICATIONS |
Knife gate valves are designed to provide isolation in various applications including oil sands slurries, pulp stock and waste water. |
|
11 |
ACCESORIES & OPTIONS |
Flushing plate, Locking devices, Injection holes, Emergency closing devices, Limit switches, Proximity switches, Solenoid valves, Filters, Emergency system, Junction box, Stem extensions, etc... |
1. How is your price?
A: Although we have brand-name products, our prices are very favorable and competitive.Because of our best price, customers from all over the world come to purchase our products.
2. How long is your warranty?
A: Our Warranty is 12 month.
3. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
4. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
5. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
6. Could you specially design and produce for clients?
A: Sure, we have all kinds of professional engineers.We can design and produce special products according to customers' request. Such as: special size, special control, OEM, etc.
7. What’s the MIDAS main market?
A: Our main market is African, Middle East Countries, South American, Asian.
8. What’s your payment?
1) 100% T/T
2) 30% in advance, others before shipment.
3) L/C
