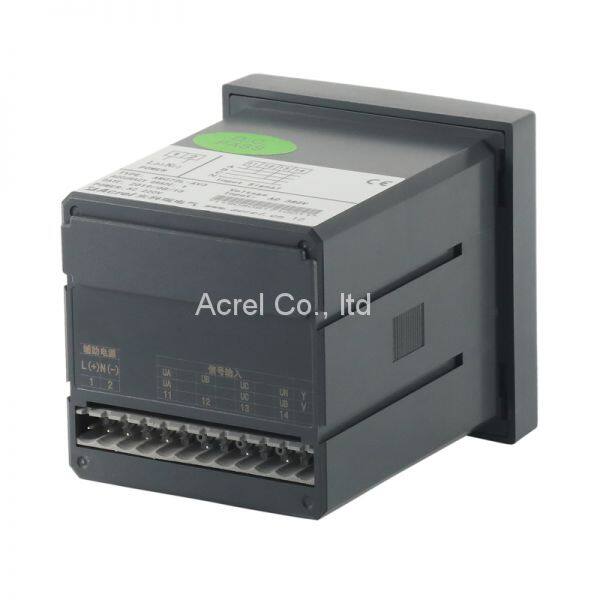

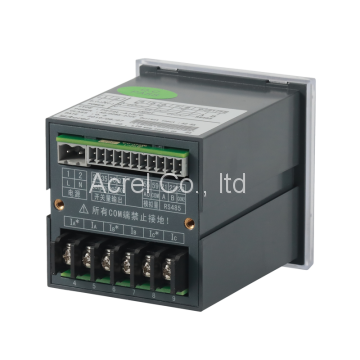

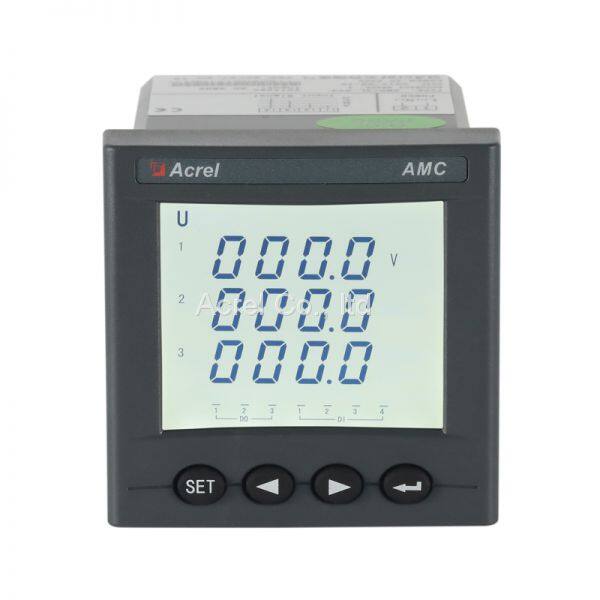

Acrel Three Phase Panel Current Meter With Alarm AMC72L-AI3
- Shanghai
- T/T L/C
- 7 days
You May Like
-
Acrel AIL100-8 Ground Faults Location Device With 8 Channels
-
Insulation Faults Monitoring Alarm and LCD Display Device For ICU/CCU
-
Acrel AID10 Sound Alarm Indicator For Medical Insulation Monitoring IT System
-
AC Current Transmitter BA Series Current Transformer ACREL BA05-AI/I
-
Acrel PZ72L-DE Multifunction DC Energy Power Monitor Meter With RS485
-
Acrel PZ96-E4 Three Phase Power Meter With 4-20mA Analog Output
Product Details
| Brand Name | Acrel | Place of Origin | China | |
| Model Number | AMC72L-AI3 | Phase | Three Phase | |
| Operating Temperature | -10℃~55℃ | Dimensions | 72*72mm | |
| Display Type | Analog Only | Accuracy Class | 0.5 |
Product Description
General
AMC series intelligent power collection and monitoring device is a smart meter designed for power monitoring needs of power systems, industrial and mining enterprises, utilities, and intelligent buildings. It integrates measurement of power parameters (such as single-phase or three-phase current, voltage, and active power). Power, reactive power, apparent power, frequency, power factor) and power monitoring and assessment management. At the same time, it has a variety of peripheral interface functions for users to choose: with RS485 communication interface, MODBUS-RTU protocol can meet the needs of communication network management; 4-20mA analog output can correspond to measured electrical parameters, meet DCS Such interface requirements; with switch input and relay output can realize the function of "remote signal" and "remote control" of circuit breaker switch. High-brightness LED/LCD display interface, parameter setting and control through buttons, ideal for real-time power monitoring systems. Can directly replace conventional power transmitters and measuring instruments. As an intelligent, digital front-end acquisition component, the instrument has been widely used in various control systems, SCADA systems and energy management systems.
Technical Parameter
Technical Parameter | Value | ||
Input | Rated value | Voltage: AC100V, 220V or 380V, current: AC1A or 5A | |
Overload | Voltage: 1.2 times rated value(continuous) 2 times rated value(1 second) | ||
Frequency | 45Hz~65Hz | ||
Power consumption | ＜0.5VA | ||
Accuracy | Class 0.5 | ||
Function | Display | LED or LCD | |
Communication | RS485(Modbus-RTU) | ||
Alarm | 1 channel passive relay,contact capacity 3A/30VDC, 3A/250VAC | ||
Analog output | DC4~20mA( load<500Ω) | ||
Switching | Input | 4 channels or 2 channels passive contact Input | |
Output | 2 channels switching output, NO relay contact,capacity 3A/30VDC, 3A/250VAC | ||
Auxiliary power | Voltage range | AC/DC 85~265V | |
Power consumption | <5VA | ||
Insulation resistance | ≥100MΩ | ||
Environment | Temperature | Operating:-10°C~+55°C Storage: -25°C ~+70°C | |
Humidity | ≤93%(no condensation) | ||
Altitude | ≤2500m | ||
Dimensions
Outline(unit :mm) | Panel Size | Housing Size | Cut-out | ||||
Width | Height | Width | Height | Depth | Width | Height | |
48 square | 49 | 49 | 44 | 44 | 93 | 45 | 45 |
72 square | 75 | 75 | 66.5 | 66.5 | 94.3 | 67 | 67 |
96 square | 96 | 96 | 90 | 90 | 77.8 | 92 | 92 |
