Help CenterT-BOTA CZ-150CY 150L Ozone Aging Test Machine / Climate Ozone Accelerated Aging Test Chambers/ Ozone Aging Resistance Tester
Related Products
-
TBT-1232D Geotextiles Geosynthetics Bursting Strength Tester MachineUS$ 3,000 - 5,000MOQ: 1 Set -
Good Quality DW1410 Ultraviolet Accelerated Weathering TesterUS$ 8,000 - 10,000MOQ: 1 Set
-
T-BOTA DW1410 Ultraviolet Accelerated Aging Test ChamberUS$ 2,000 - 7,000MOQ: 1 Set
-
UV Accelerated Aging Test Chamber DW1410US$ 2,000 - 7,000MOQ: 1 Set
-
DW1410 ULTRAVIOLET ACCELERATED WEATHEROMETERUS$ 8,000 - 10,000MOQ: 1 Set

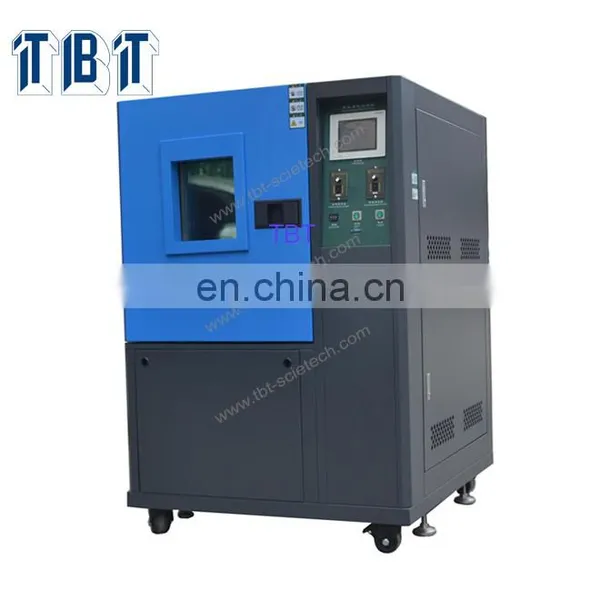

Ozone aging test machine
Model: CZ-150CY
Specification
|
Product name |
Ozone aging test machine |
|
Model |
CZ- 150CY |
|
Inside chamber capacity |
150L |
|
Inside chamber size(mm) |
500×600×500 W×H×D |
|
Overall dimension(mm) |
Around 1000×1500×1150(mm) W×H×D |
|
Weight |
Around 200kg |
|
Working noise |
≤70db In front of the machine is 1 meter away from the machine and measured 1.2 meters above the ground |
Other function
|
temperature range |
RT+10℃~60℃ |
|
Humidity range |
≤65%RH Note: The relative humidity meter does not display, the humidity measurement needs to use the humidity measuring instrument to measure |
|
Ozone concentration range |
0pphm~1000pphm |
|
Turntable speed |
1-7r/min Adjustable speed |
|
Stretching speed |
0.5HZ±0.025HZ(30times/min) |
|
Stretch the clamping distance |
0~100mm Adjustable speed |
|
ductility |
1%~100% Adjustable speed |
|
Air flow speed |
Ozone supply air flow rate: 8~16mm/s Temperature and humidity control air flow speed: 600mm/s±100mm/s Note: the gas flow rate can be detected by the gas flow meter and anemometer, the meter does not show the air velocity |
|
Control accuracy |
Temperature fluctuation: ± 0.5 ℃ Temperature uniformity: ± 2 ℃ Temperature deviation: ± 1 ℃ Ozone concentration fluctuation: ± 5pphm% |
sdfdsf
Air aging test machine
CZ-7217M
|
1. Capacity |
|
|
Capacity |
80 L |
|
Inside chamber size(mm) |
400×500×400 mm W×H×D |
|
Outside chamber size(mm) |
Around 850×1300×850 mm W×H×D |
|
Net weight |
Around 100kg |
|
2. Function |
|
|
Test environmental conditions |
Ambient temperature is + 25 ℃, relative humidity ≤ 85% RH, no test chamber sample conditions (unless otherwise stated) |
|
Temperature range |
RT+10℃→260℃ |
|
Temperature control performance |
Temperature deviation: ± 2 ℃ Temperature uniformity: ≤ 2.5% ℃ Temperature fluctuation: ± 0.5 ℃ Temperature resolution: 0.1 ℃ |
|
Temperature rising speed |
RT→260℃ whole range average more than 3.5℃/min |
|
3. Noise |
Less than 70db(A) (1m from the box measured, 1.2 meters above the ground) |
