Home > Products > Concrete testing machine > T-BOTA HT-225 Concrete Test Hammer

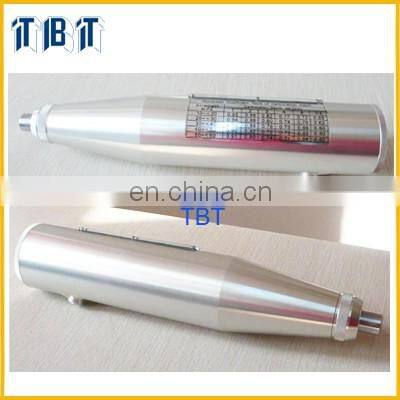

T-BOTA HT-225 Concrete Test Hammer
- China Shanghai OR Nanjing Seaport
- T/T Credit Card
You May Like
Product Details
| Brand Name | TBT | Place of Origin | Jiangsu, China | |
| Model Number | HT-225 | Power | Electronic | |
Product Description
HT-225 Concrete Test Hammer
Brief introduction:
The test hammer submit to standard of GB/T9138-1988 and JJG817-93 and JGJ/T23-2001. HT-225 concrete test hammer is applied to test the compressive strength of building concrete components, bridge and so on. Concrete Test Hammer is designed specifically for the non-destructive testing of concrete structures.
In addition it is possible to determine the variation in concrete quality between different sections of a structure with case. this method is rebound hardness of mortar which is directly related to the compressive strengths of the material being tested.
Trait:
1)Center rod is made from imported material, high accuracy and durable resistance.
2)The shell is made form high Aluminum or high polymer material in order to perfect protect instrument from damage and extend use life.
3)Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate. Compared with other suppliers in the line of business, the product is more accuracy, good quality, and best price and longer use life.
Parameter
Test range: 10~60Mpa
Standard impact energy: 2.207J(0.225Kgf.m)
Stroke of rebound hammer: 75mm
Friction of pointer slider: 0.5N~0.8N
Sphere radius of rebound pole SR: 25mm±1mm
Average rebound value on steel anvil Rm: 80±2
Size: Φ54*278mm
Weight: ≈1KG
Concrete Test Hammer
Schmidt hammer
Rebound Hammer
Schmidt concrete test hammer
---Carton box, wooden case or specified package
1) Inner package: dust-proof plastic bag
2) Outer package: standard export wooden case with pallet
3) Suitable for international transport through shipping by sea, by air or any other delivery method.
(Note: we can provide special packages according to buyer’s requirements.)
