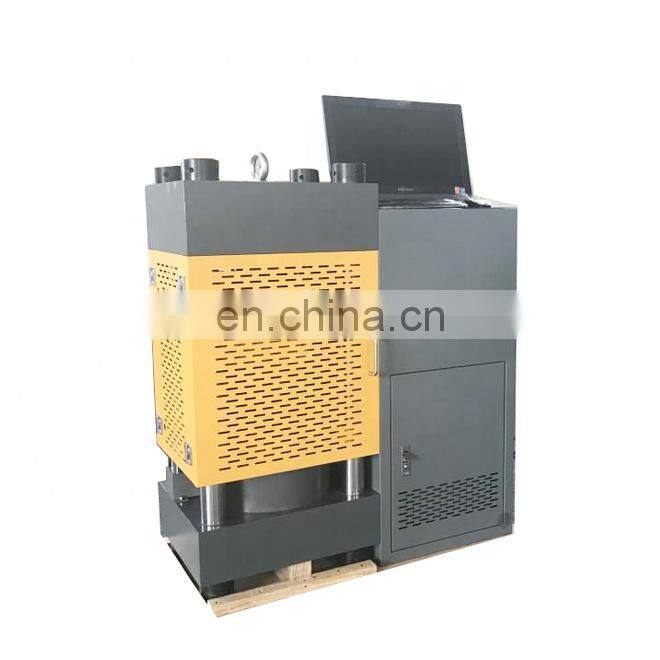

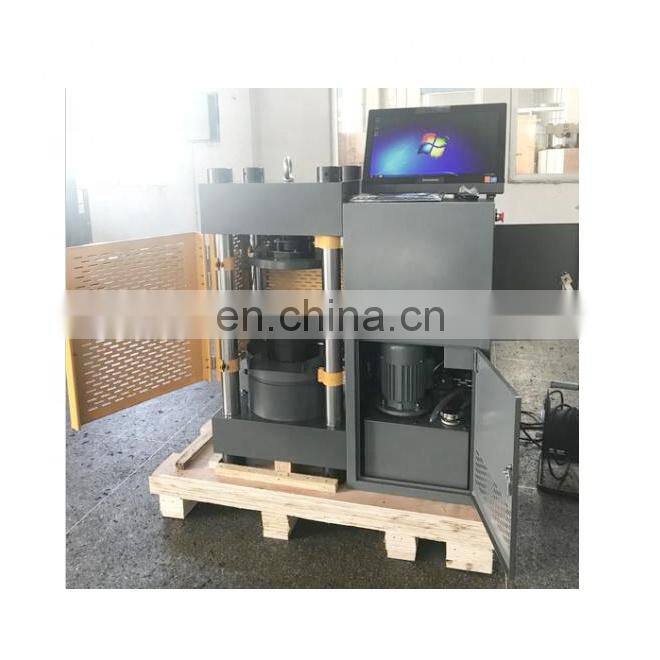

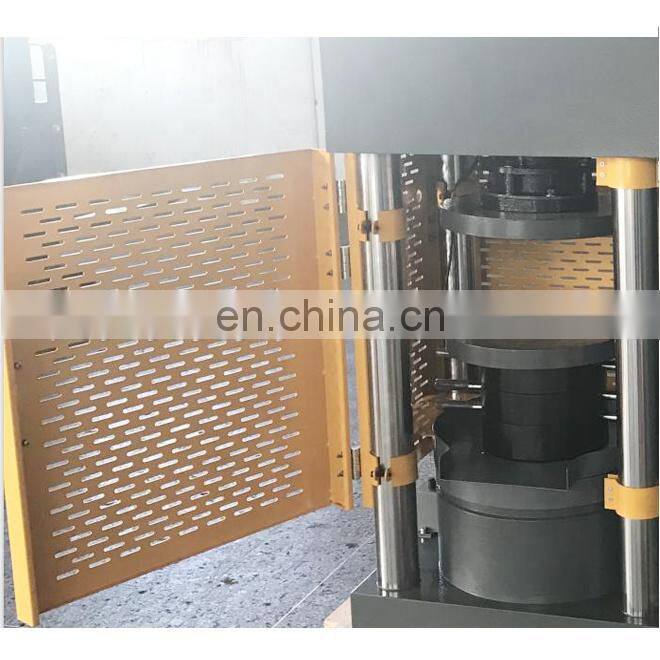

T-BOTA Automatic compression testers for cubes and cylinders and blocks Compression Testing machine
- 1000 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
-
PC Controlled Electro hydraulic Universal Tensile Testing Machine
-
ASTM,GB Standard hydraulic universal testing machine with 12 months warranty
-
Computer Automatic Data Collection Servo Automatic Universal Testing Machine
-
2000kN 220V Four Column Hydraulic Compression Testing Machine with digital display
-
T-BOTA 220V 1000KN Good Quality Digital Display Hydraulic Universal Testing Machine
-
TBTCTM-2000(S) 200kN 220V 50/60Hz 1Ph Motorised Compression Tension Machine (complete with grips)
Product Details
Brand Name | TBT | Place of Origin | Jiangsu, China | |
Model Number | TBTCTM-2000AG | Power | Hydraulic |
Product Description
With PC and servo control Hydraulic Concrete Compression /compressive/ pressure Testing Machine, Computer Controlled Electro-hydraulic Servo Compression Testing Machine
Compression testing machine w/PC & Servo Control
Model: TBTCTM-2000AG
1. Description
The testing machine is designed for testing the compression strength of brick, cement mortar and concrete specimen Also, it can used for testing the compression strength of some other building material if the proper compression jig is equipped.
It is elector-hydraulically powered and the pressure applied on the specimen can be displayed directly on the rated pace; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed.
II. Technical specification:
Model |
TBTCTM-2000AG |
Capacity |
2000KN max. |
Measuring range |
0~2000 |
Relative error |
±1% |
Pressure plate size |
D295*T32mm (round) upper plate D295*T45mm (round) lower plate |
Bearing plate size |
D200*T50mm *3pcs D200*T75mm *1pc |
Maximum distance between upper and lower plate |
3310mm |
Piston stroke |
100mm |
Loading speed |
Around 0.2~10KN/s |
Power supply |
220VAC 750W |
Dimensions |
Around 900×400×1000 (L*W*H) |
Net weight |
Around 780kg |
