UV1610 Cheap Uv-spectrophotometer uv Vis Spectrophotometer

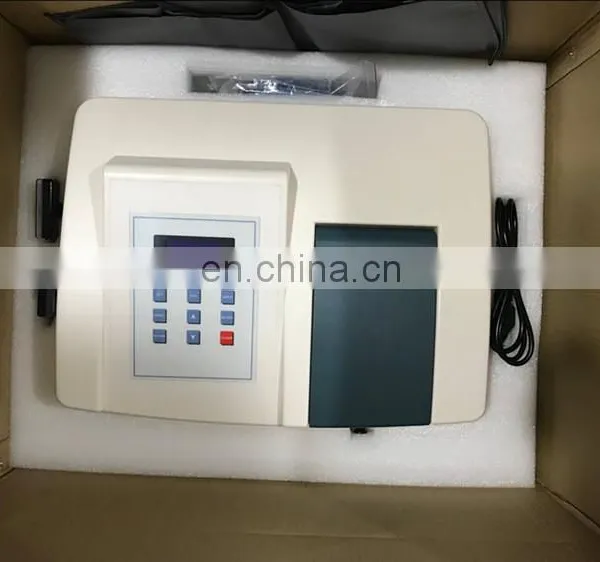

UV1610 Cheap Uv-spectrophotometer uv Vis Spectrophotometer photo-1
UV1610 Cheap Uv-spectrophotometer uv Vis Spectrophotometer photo-2
UV1610 Cheap Uv-spectrophotometer uv Vis Spectrophotometer photo-3
UV1610 Cheap Uv-spectrophotometer uv Vis Spectrophotometer photo-4
UV1610 Cheap Uv-spectrophotometer uv Vis Spectrophotometer photo-5
UV1610 Cheap Uv-spectrophotometer uv Vis Spectrophotometer photo-6
US$ 560 - 560 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
YOKE/OEM
Place of Origin:
Shanghai, China
Model Number:
UV1600
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name YOKE/OEM
Place of Origin Shanghai, China
Model Number UV1600
Size 590*460*220mm
Weight 16kg
Measurement Range 190~1100nm
Wavelength Range 190~1100nm
Product Description

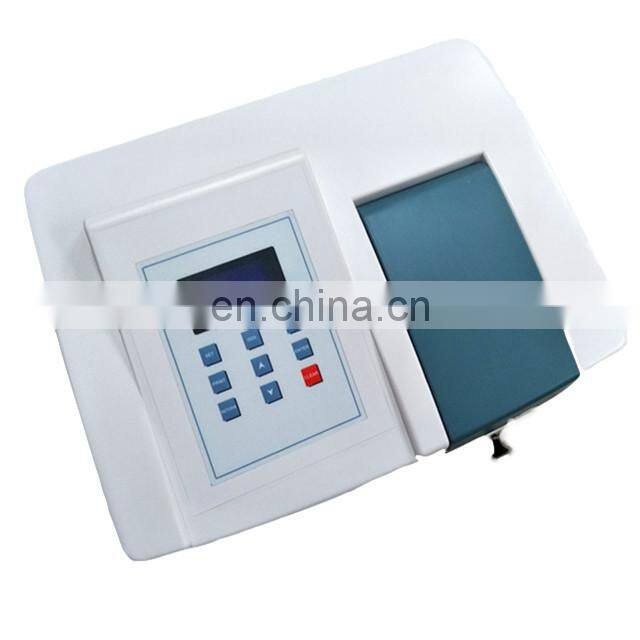

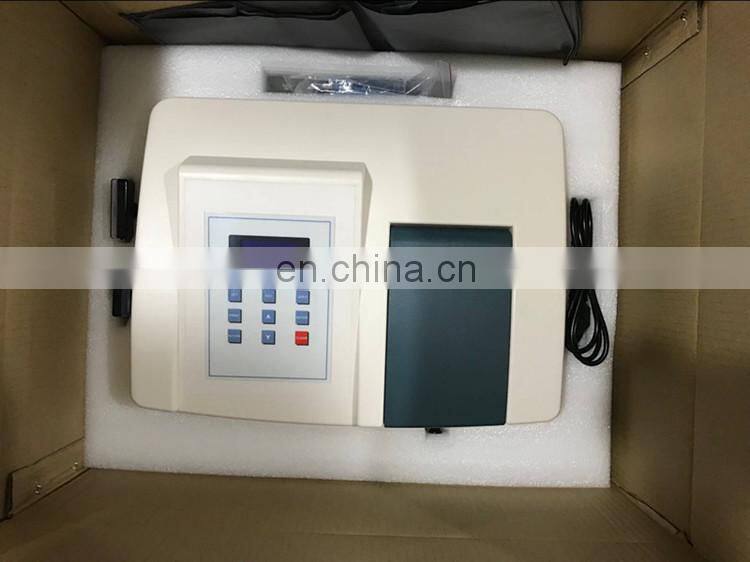

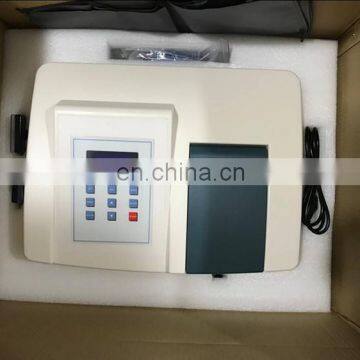

UV1600 UV Vis Spectrophotometer

1. Unique optical system, 1200 lines/mm grating and imported receiver to ensure its sound performance.
2. The instrument has basic functions of Photometric analysis, Quantitative analysis. With PC software, the
instrument expands the applications, such as spectral scanning, kinetics, DNA/protein analysis, multiwavelength
test, etc.
3. Adopts 51 microcomputer system, and store 200 test data and 100 standard curves;
4. Plug type deuterium lamp and tungsten lamp transfer lamps without optics debugging.
5. Large sample chamber can accommodate 5-100mm cuvettes of all kinds.

Model
UV1600
UV1610
Optical System
Single Beam, Grating 1200 lines/mm
Wavelength Range
190~1000nm
Spectral Bandwidth
2 nm
4 nm
Wavelength Accuracy
1nm
Wavelength Repeatability
<=0.5nm
Photometric Accuracy
0.5%T
Photometric Repeatability
0.3%T
Photometric Range
0-200%T; -0.3~3A
Stray light
0.3%T
Stability
±0.002A/h @500nm
Baseline Flatness
±0.002 A
Noise
±0.001 A
Wavelength Setting
Auto
Light Source
Imported Deuterium & Tungsten lamp
Display
128*64 LCD
Detector
Imported Silicon Photodiode

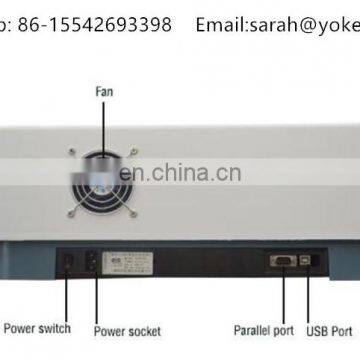

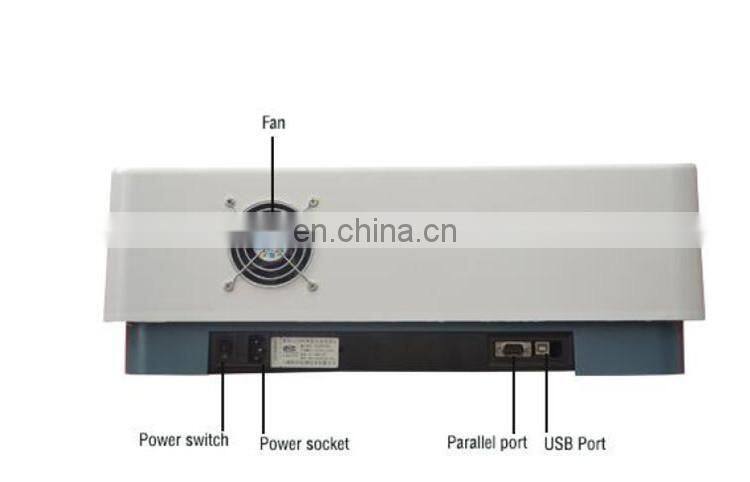

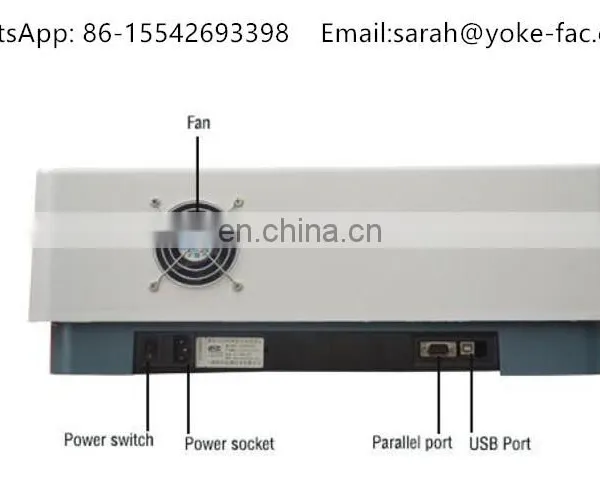

Output
USB port & Parallel port ( Printer)
Power
AC 220V/50Hz; AC 110V/60Hz
Shipping size/weight
730*610*390mm/20kg
Related products

1000 series cheap uv vis spectrophotometer.

This series is a simple single beam spectrophotometer. The wavelength is set manually from the dial on the front panel. Direct readout of transmission or absorption on the LED display. Measured values can be transferred to PC via RS232 port for further analysis. Low price and simple design make the model ideal tool for education or routine analysis..

1200 Series Single Beam Spectrophotometer

1. 70* 40mm blue-lit LCD displays T, A, C, K, B.

2. Adjust automatically 0%A and 100%T.
3. Large sample compartment can accommodate 5-100mm path length cuvettes.

4. Can make test of Quantitative and Kinetics with professional PC software.

5. Automatic control of the switching of deuterium and tungsten lamp, manual wavelength setting.

6. Store 50 groups of measuring data and 10 groups of K & B value.

2000 Series Single Beam Spectrophotometer

1. Screen displays wavelength. The reading is clear and accurate and the minimum wavelength display is 0.5nm, which changed the reading mode of the traditional dial.
2. Adopts 128* 64mm dot matrix LCD display.
3. Adjust automatically 0%A and 100%T.
4. Large sample compartment can accommodate 5-100mm path length cuvettes.
5. Can make test of Quantitative and Kinetics with professional PC software.
6. Automatic control of the switching of deuterium and tungsten lamp, automatic wavelength
calibration, manual wavelenghth setting.
7. Store 200 measuring data and 50 standard curve.

Color Screen Single beam/Double beam uv vis         Spectrophotometer

1. 7 inches color LCD and windows Graphic interface make the instrument easy to operate.
2. The in-house memory is capable of saving up to 5000 test data or 500 working curves.
3. Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan, DNAProtein test, multi-wavelength test, etc
4. The USB port can be used for data transfer, which is easily exported to Excel for further processing, analysis and storage.
5. Plug type deuterium lamp and tungsten lamp transfer lamps without optics debugging.
6. Large room for samples can hold cuvettes of various specifications.
7. Extensive accessories are optional, such as auto 8-cell holder, peltier/sipper system, reflection accessories, 21 CFR compliant software, etc.

Touch Screen Single beam/Double beam uv vis
Spectrophotometer

1. 8 inches high resolution color touch LCD and windows Graphic interface make the instrument easy to operate. The finger touch and mouse can be used equally in the same user interface.                                                                                 2. the in-house massive memory is capable of saving up to 1024M for test data & working curves. It supports
USB & SD card storage. The USB port can be used for data transfer, which is easily exported to Excel for further
processing, analysis and storage.
3. Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan,
DNAProtein test, multi-wavelength test, etc
4. Plug type deuterium lamp and tungsten lamp transfer lamps without optics debugging.
5. Large room for samples can hold cuvettes of various specifications.
6. Extensive accessories are optional, such as auto 8-cell holder, peltier/sipper system, reflection accessories, 21 CFR compliant software, etc.
