UV/VIS Single Beam Spectrophotometer

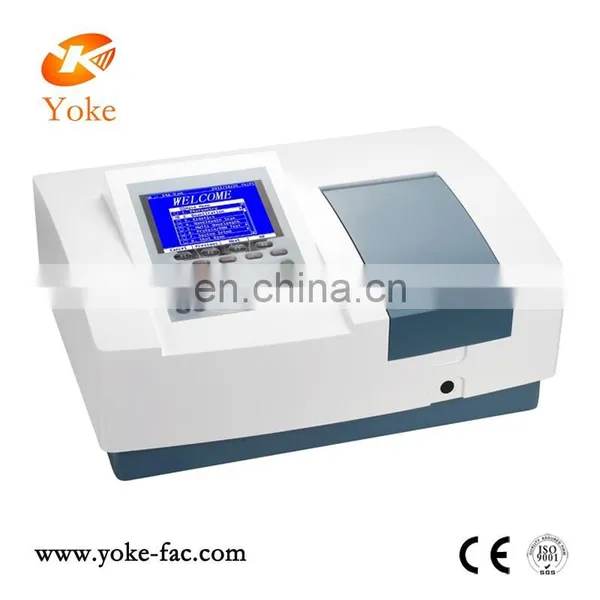

UV/VIS Single Beam Spectrophotometer photo-1
UV/VIS Single Beam Spectrophotometer photo-2
US$ 1,100 - 1,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
YOKE/OEM
Place of Origin:
Shanghai, China
Model Number:
UV1801
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name YOKE/OEM
Place of Origin Shanghai, China
Model Number UV1801
Size L590*W475*H250mm
Weight 20kg
Measurement Range 190-1100nm
Wavelength Range 190-1100nm
Focal Length Contat
Product name
 UV/VIS  single beam spectrophotometer
Product Description

Features:

1.With advanced circuit measurement and control system, make the instrument with higher reliability and low noise.

2.Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan, DNAProtein test, multi-wavelength test, etc

3.Plug type deuterium lamp and tungsten lamp transfer lamps without optics debugging.

4.Large room for samples can hold cuvettes of various specifications.

5.Auto 8-cell holder is optional.

Specifications:

ModelUV1801UV1801SUV1800
Optical SystemSingle Beam, Grating 1200 lines/mm
Wavelength Range190 -1100 nm
Spectral Bandwidth1nm0.5/1/2/4/5nm2nm
Wavelength Accuracy0.3nm0.5nm
Wavelength Repeatability0.1nm0.2 nm
Photometric Accuracy±0.3%T±0.5%T
Photometric Repeatability0.1%T(0~100%T)
Photometric Range-0.3-3A
Stray Light0.05%T@220nm,360nm
Stability±0.001 A/h @500 nm
Baseline Flatness±0.002 A
Noise±0.001 A
Scanning SpeedFast, Mid, Slow
Wavelength settingAuto
KeyboardMembrane keypad
Light SourceDeuterium & Tungsten lamp
Display320*240 dots LCD
DetectorSilicon Photodiode
OutputUSB port & Parallel port ( Printer)
PowerAC 220V/50Hz; AC 110V/60Hz
Dimension590*460*220mm520*400*200mm
Weight25kg19kg
Company Information

Yoke Instrument was founded in 2007. we are a specialized manufacturer in producing analytical instruments ranging from Spectrophotometer, Analytical Balance, Moisture Analyzer, PH Meter,Conductivity Meter to Stirrer, etc..Our products have been exported to Eastern Europe, Middle East, North America and Asia.



Our exhibition:





Our certification:





Packaging & Shipping





FAQ

What about the technical support and quality issue?

1.If any questions in installation and operation,customers can send us email.We will provide customers for detailed solution or operation video.

2.For over ten years’ experience in instrument,we have great confidence in our product quality and fact have also proved that our instruments works well during warranty period. However,If there any parts are broken during warranty period, we will replace you for free in your next order.



What about the payment?

We accept T/T,LC,western union,moneygram.



What about the shipping?

1.For sample order,it will be sent within 7days after payment received  by express:UPS,TNT,FEDEX OR by air transportation.

2.For bulk order,it would be sent by sea.But the delivery time is  according to order quantity.

Contact us

Sarah Wang

Shanghai Yoke Instrument Co., Ltd.

Add: No.22, Lane 5018, Shangnan road, Pudong, Shanghai, China

Mobile phone/WhatsApp: 86-15542693398

Skype:sarah2010

Email:sarah@yoke-fac.com
