Handheld Laser Power Meter for 15w

Handheld Laser Power Meter for 15w photo-1
US$ 1,040 - 1,200 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Model Number:
TS15
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CNI
Place of Origin Jilin, China
Model Number TS15
Operating Temperature 5°C-45°C (41°F-113°F)
Dimensions 134x242x44mm
Measuring Voltage Range 100-240 VAC or DC 12V-3.34A
Measuring Current Range 5 mW - 15 W
Accuracy Class 0.1mW
Product Description

CNI developed thermopile laser power meter, it is composed of LP100 header and TS/ HS series probe. This power meter can accurately measure various laser power, it is equipped with PC software to store measured data and portable built-in rechargeable battery, which is easy to operate.

CNI, as the international leading designer and manufacturer of laser system, fully understands customers' actual demand for laser power measurement and analysis, a few series of customized power measurement instrument can be offered. CNI sincerely provides with best configuration which can meet customers' demand of measurement and funding level based on the actual application understanding, advanced technology and measuring instrument selection. In order to make customers gain higher cost performance, CNI offers modular selection which can easily extend configuration in future demand change.


SPECIFICATIONS
Header Model
LP100
Probe Model
TS15
Power Range
5mW-15W
Sensitive Diameter
22mm
Detector Coating
Broadband
Detector Element
Thermopile
Wavelength Range
0.19-25 μm
Max. Average Power Density
15 kW/cm2
Sensitivity
5 mW
Calibration Uncertainty(k=2)
±2%
NEP(Noise Equivalent Power)
0.5 mW
Response Time(0-90%)
<1 sec.
Linearity
±1%
Total Weight
1.284 kg
Cooling Method
Air
Computer Connecter
USB 1.1 and USB 2.0
Instrument Power
100-240 VAC, 50/60 Hz, DC 12V-3.34A
Temperature(Operating)
5°C - 45°C (41°F - 113°F)
Temperature(Storage)
-20°C - 70°C (-4°F - 158°F)

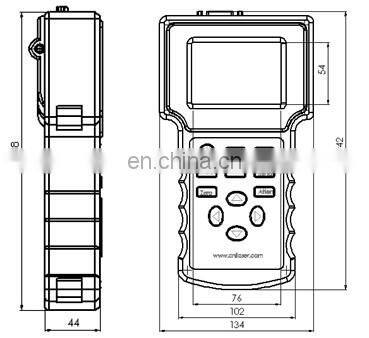

Dimensions
Packaging&Delivery
Certifications
Company information

Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.

Exhibitions
Customer Visit
Contact Us

FAQ

1. What about the delivery?

      TNT     UPS     FEDEX     DHL

2. What about the warranty?

       For 1 year

3.How to pay?

      T/T     Western Union


4. How to visit our factory?

 You can contact us by following ways to apply for visiting our factory:

(1) International Tel: +86-431-85603799

(2) Fax: +86-431-87020258

5. How to find nore product of our company?

 Search our web to find more products(including more contact way )
