Home > Products > Cross Roller Bearings > RB11020UUCC0P5 110*160*20mm crossed roller bearing
RB11020UUCC0P5 110*160*20mm crossed roller bearing
USD $1 - $10000
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
-
RB12016UUCC0P5 120*150*16mm crossed roller bearing
-
RB13015UUCC0P5 130*160*15mm crossed roller bearing
-
RB13025UUCC0P5 130*190*25mm crossed roller bearing
-
RB14016UUCC0P5 140*175*16mm crossed roller bearing
-
RB14025UUCC0P5 140*200*25mm crossed roller bearing
-
RB15013UUCC0P5 150*180*13mm crossed roller bearing
Product Details
| Brand Name | MONTON | Model Number | RB11020UUCC0P5 | |
| Outside Diameter | 1, 100 | Bore Size | 1, 100 |
Product Description

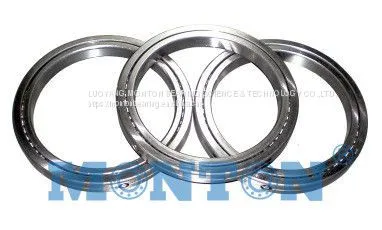

RB11020UUCC0P5 110*160*20mm crossed roller bearing
| Bearings | inner ring | outer ring | Roller pitch circle diameter | width | Greasing hole | Chamfer | Shoulder height | Basic load rating（radial） | weight | |||
| d | D | dp | B B1 | a-b | r(min) | ds | Dh | C | C0 | Kg | ||
| (mm) | (mm) | (mm) | (mm) | (mm) | kN | kN | ||||||
| 110 | RB11020 | 110 | 160 | 133 | 20 | 3.5-1.6 | 1.6 | 120 | 143 | 34 | 54 | 1.56 |
Model RB (Separable Outer Ring Type for Inner Ring Rotation)
Cross-Roller Ring basic type, with a separable outer ring, and an inner ring integrated with the main body.It is used in locations where the rotational accuracy of the inner ring is required. It is used, for example, in the swivel portions of index tables of machine tools.
