1.6KW 12 Volt Hydraulic Pump Motor For Electric Car
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | JINLE | Place of Origin | Jiangsu, China | |
| Model Number | ZD1230 | |||
| Certification | CE | Torque | 6N.m | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Series Wound | |
| Efficiency | IE 4 | Protect Feature | Drip-proof | |
| Continuous Current(A) | Current | Speed(RPM) | 2350RPM | |
| Commutation | Brush |
Product Description

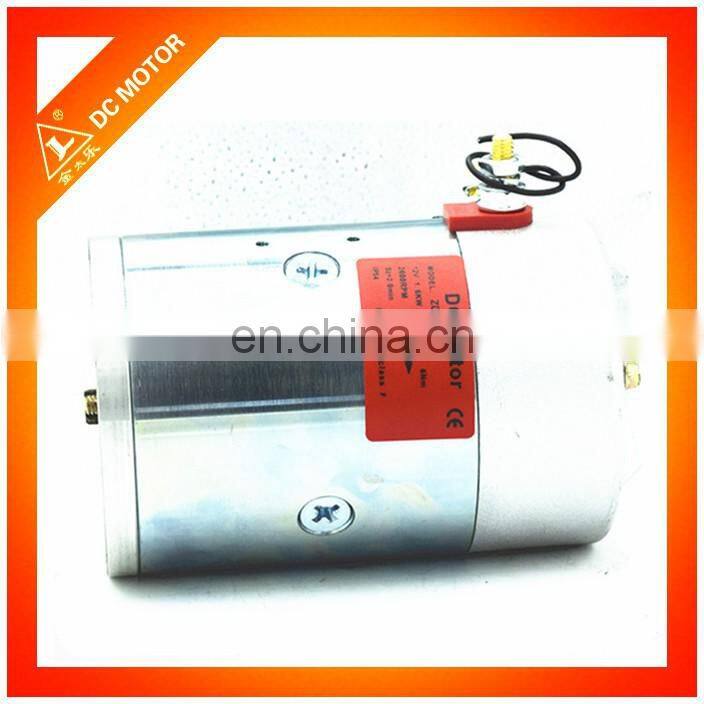

1.6KW 12 Volt Hydraulic Pump Motor For Electric Car
Features of 1.6KW 12 Volt Hydraulic Pump Motor For Electric Car:
100% copper wire
stable running, high efficiency, low noise
good service after sale
12V, 24V, 48V, 60V etc. on your request
Customized production is available!
Supply for OEM Production!
nearly 20 years' manufacturing experience
Specification of 1.6KW 12 Volt Hydraulic Pump Motor For Electric Car:
| Type | ZD1230 |
| Voltage | 12V |
| Power | 1.6KW |
| Speed | 2350RPM |
| Rotation | CW |
| O.D. | 114mm |
| Operating Mode | S3 |
| Insulation Class | F |
| Protection Degree | IP54 |
| Weight | 7.5kg |
| Torque | 6N.m |
Welcome to inquire about 1.6KW 12 Volt Hydraulic Pump Motor For Electric Car.
Technical Data
Type | Voltage | Power | Speed | Rotaion | O.D. |
ZDY1256 | 12V | 200W | 3000RPM | BI-DIRECTIONAL | 56mm |
ZDY112 | 12V | 0.5KW | 2300RPM | CW | 80mm |
ZDY113 | 12V | 0.8KW | 3600RPM | CW | 80mm |
ZDY113S | 12V | 0.8KW | 3200RPM | CCW | 80mm |
M108XXN | 12V | 0.8KW | 3300RPM | CW | 80mm |
MA08XXN | 12V | 0.8KW | 3200RPM | BI-DIRECTIONAL | 80mm |
ZDY118 | 12V | 1.2KW | 3200RPM | CW | 80mm |
W8923 | 12V | 1.4KW | 2220RPM | BI-DIRECTIONAL | 114mm |
W9144 | 12V | 1.4KW | 2150RPM | BI-DIRECTIONAL | 114mm |
W8930B | 12V | 1.5KW | 2300RPM | BI-DIRECTIONAL | 114mm |
W8901P | 12V | 1.5KW | 2220RPM | BI-DIRECTIONAL | 114mm |
ZD1230 | 12V | 1.6KW | 2350RPM | CW | 114mm |
N1612 | 12V | 1.6KW | 2350RPM | CW | 114mm |
N1612C | 12V | 1.6KW | 2350RPM | CW | 114mm |
W5692 | 12V | 1.6KW | 2450RPM | CW | 114mm |
ZD193A | 12V | 1.6KW | 2600RPM | CCW | 114mm |
W8999 | 12V | 1.6KW | 2350RPM | CCW | 114mm |
MD12160 | 12V | 1.6KW | 2500RPM | CW | 114mm |
ZD1223 | 12V | 1.6KW | 2350RPM | CW | 114mm |
ZD1200 | 12V | 1.6KW | 2500RPM | CW | 114mm |
ZD1201 | 12V | 1.6KW | 2500RPM | CW | 114mm |
56363 | 12V | 1.6KW | 2500RPM | CW | 114mm |
ZD193 | 12V | 1.6KW | 2600RPM | CW | 114mm |
ZD1240 | 12V | 1.6KW | 2350RPM | CW | 114mm |
W6599 | 12V | 1.7KW | 2650RPM | CW | 114mm |
ZD1221 | 12V | 2.0KW | 2800RPM | CW | 114mm |
ZD12250 | 12V | 2.2KW | 2800RPM | CW | 114mm |
ZD1973BF | 12V | 3.0KW | 3000RPM | CCW | 127mm |
N2463 | 24V | 200KW | 3000RPM | BI-DIRECTIONAL | 63mm |
MB08XXN | 24V | 0.8KW | 3000RPM | BI-DIRECTIONAL | 80mm |
ZDY211S | 24V | 0.8KW | 3100RPM | CCW | 80mm |
M208XXN | 24V | 0.8KW | 3200RPM | BI-DIRECTIONAL | 80mm |
ZDY211 | 24V | 0.8KW | 3600RPM | CW | 80mm |
ZD2480 | 24V | 0.8KW | 3000RPM | CCW | 130mm |
ZDY24800 | 24V | 0.8KW | 3200RPM | CCW | 80mm |
ZDY218 | 24V | 1.2KW | 3200RPM | CW | 80mm |
ZD2409A | 24V | 1.2KW | 2350RPM | BI-DIRECTIONAL | 126mm |
W9405 | 24V | 2.0KW | 2600RPM | CCW | 114mm |
W8950 | 24V | 2.0KW | 3300RPM | CCW | 114mm |
ZD2931 | 24V | 2.0KW | 2600RPM | CW | 114mm |
N2024C | 24V | 2.0KW | 2700RPM | CW | 114mm |
ZD2930 | 24V | 2.0KW | 2600RPM | CW | 114mm |
MD24160 | 24V | 2.0KW | 2700RPM | CW | 114mm |
N2024 | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZD223A | 24V | 2.2KW | 2600RPM | CCW | 114mm |
ZD2420 | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZD293A | 24V | 2.2KW | 2750RPM | CCW | 114mm |
ZD2900 | 24V | 2.2KW | 2800RPM | CW | 114mm |
ZD2940 | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZD223AF | 24V | 2.2KW | 2600RPM | CCW | 114mm |
ZD24250 | 24V | 2.5KW | 3000RPM | CW | 114mm |
N3024 | 24V | 3.0KW | 3000RPM | CW | 127mm |
ZD2973BF | 24V | 3.0KW | 3000RPM | CCW | 127mm |
ZD2371 | 24V | 4.0KW | 3100RPM | CW | 127mm |
ZD2973 | 24V | 4.0KW | 3100RPM | CW | 127mm |
ZD2973A | 24V | 4.0KW | 3100RPM | CW | 127mm |
XQD-3C | 24V | 4.0KW | 3100RPM | CW | 142mm |
ZD4201 | 48V | 2.0KW | 2700RPM | CW | 114mm |
ZDY418 | 48V | 0.8KW | 3200RPM | CW | 80mm |
ZD4201A | 48V | 2.0KW | 2700RPM | CCW | 114mm |
QZD4842 | 48V | 4.0KW | 2030RPM | BI-DIRECTIONAL | 170mm |
ZDY618 | 60V | 0.8KW | 3200RPM | CW | 80mm |
ZD6202 | 60V | 2.0KW | 2600RPM | CW | 114mm |
ZD7202 | 72V | 2.0KW | 2600RPM | CW | 114mm |
1,sample service: samples can be provided.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get the samples?
A: Yes! Definitly! The samples will be sent to you.
