Home > Products > Motor > S729 factory made 0.8NM 1.2NM 4.7NM to 108NM high torque 4RPM to 698RPM Brushless DC Motor 24V Planetary Reduction Gear Motor

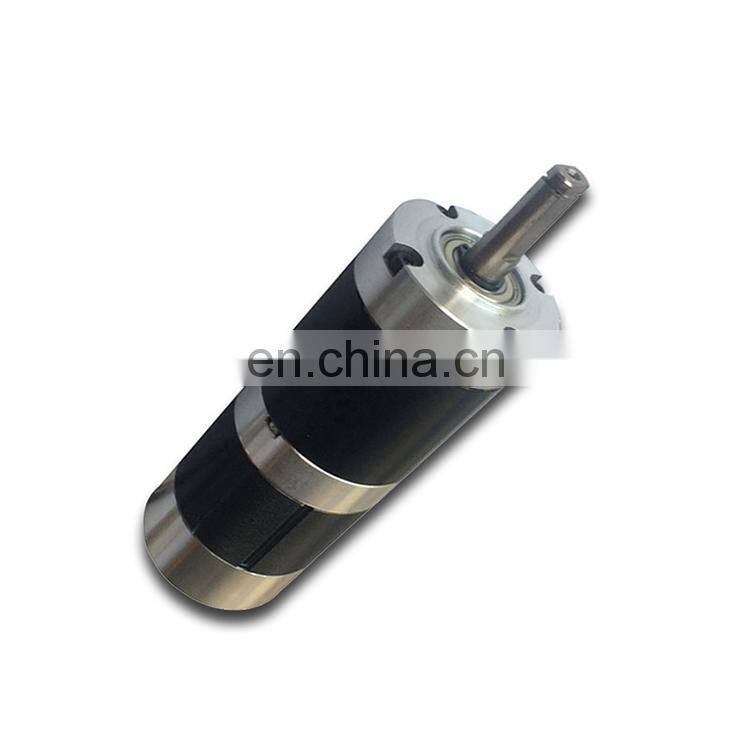

S729 factory made 0.8NM 1.2NM 4.7NM to 108NM high torque 4RPM to 698RPM Brushless DC Motor 24V Planetary Reduction Gear Motor
- 1000 Piece / Pieces per Month
- T/T Credit Card
- S902 motor diameter 56mm 12V 2NM torque brushless dc motor 24v 300w
- S213 24V 12 Volt high torque micro 12v dc gear motor, dc 12v 50 rpm 37mm gear box electric motor
- S215 24V 12 Volt China Supplier DC Spur Gear Motor 31MM Mini Gear Box Electric Motor 12RPM High Torque Reversible
- S215 24V 12 Volt China Supplier DC Spur Gear Motor 31MM Mini Gear Box Electric Motor 12RPM High Torque Reversible
- S216 24V 24 Volt 12V Whosale Custom For Robot Low Rpm Gear Motor
- S216 24V 24 Volt 12V Whosale Custom For Robot Low Rpm Gear Motor
Product Details
Brand Name: | McMaster | Place of Origin: | Jiangsu, China | Model Number: | S729 |
Type: | Gear Motor | Certification: | CCC, ROHS | Torque: | 154 N.m |
Usage: | Boat, Car, Fan, Home Appliance | Construction: | Permanent Magnet | Efficiency: | IE 2 |
Protect Feature: | Totally Enclosed | Continuous Current(A): | 3.4 A | Speed(RPM): | 2.4 rpm |
Commutation: | Brushless |
Product Description
Product: S729 factory made 0.8NM 1.2NM 4.7NM to 108NM high torque 4RPM to 698RPM Brushless DC Motor 24V Planetary Reduction Gear Motor
Brushless DC Motor 24V BLDC Motor Planetary Reduction Gear Motor
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Model | Voltage (VDC) | No Load | Rated Load | Toque (N.m) | Ratio | Stage | Power (W) | Length (mm) | ||
Current (A) | Speed (r/min) | Current (A) | Speed (r/min) | |||||||
S729 | 24 | 0.78 | 2.7 | 3.39 | 2.4 | 153.6 | 836 | 4 | 38 | 151 |

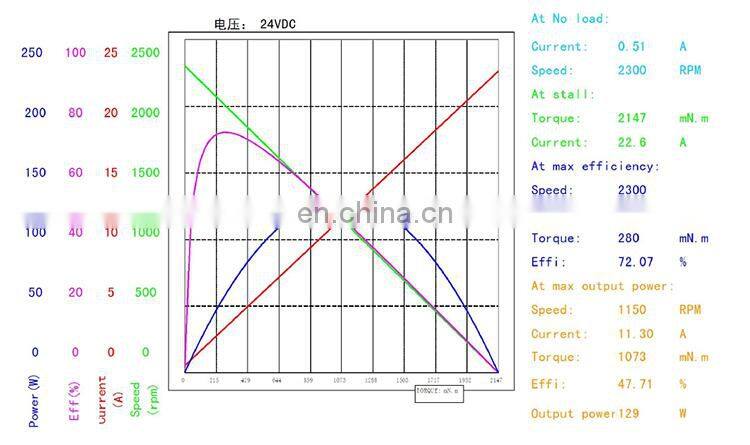

Voltage (VDC) | No Load | Rated Load | Toque (N.m) | Moment of Inertia (Kg.cm2) | EMF constant (V/rpm) | torque constant (N.m/A) | Length (mm) | ||
Current (A) | Speed (r/min) | Current (A) | Speed (r/min) | ||||||
24 | 0.51 | 2298 | 3.39 | 2000 | 0.28 | 0.116 | 0.01017 | 0.0971 | 75 |
S729 factory made 0.8NM 1.2NM 4.7NM to 108NM high torque 4RPM to 698RPM Brushless DC Motor 24V Planetary Reduction Gear Motor
Brushless DC Motor 24V BLDC Motor Planetary Reduction Gear Motor
Each motor is packed in a foam box, 3pcs in a carton and 45 cartons in a pallet. If you have any special needs, please let us know, we can design packaging according to your request.
McMaster Electrics Co., Ltd is a professional company specializing in electrical and mechanical products, providing expert solutions and technical support. Our products include electrical motors, gear and gearboxes, transmissions and drive solution, HVAC fan/blower, controllers, pumps and relative components. We have been a reliable business partner for our North American and European customers since 2001. We provide high quality electrical motor, gearbox, fan/blower, controller, pump, ect. We also provide expert solutions and technical support to help your projects to be more competitive and successful. We have Headquarter and sales/service office in US, technical support/service company in China, Joint Ventures in Changzhou area and long term strategic manufacturing partners all over China. Contact us for your inquiry and you will have a pleasant and satisfied experience working with us in return.
1. Q: Can you provide detailed technical data and drawing?
A: Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.
2. Q: Can I visit your factory before we place an order?
A: Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.
3. Q: How to control the products quality in your company?
A: With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
S729 factory made 0.8NM 1.2NM 4.7NM to 108NM high torque 4RPM to 698RPM Brushless DC Motor 24V Planetary Reduction Gear Motor
Brushless DC Motor 24V BLDC Motor Planetary Reduction Gear Motor
