Automatic Oil Particle Counter

I. Overview

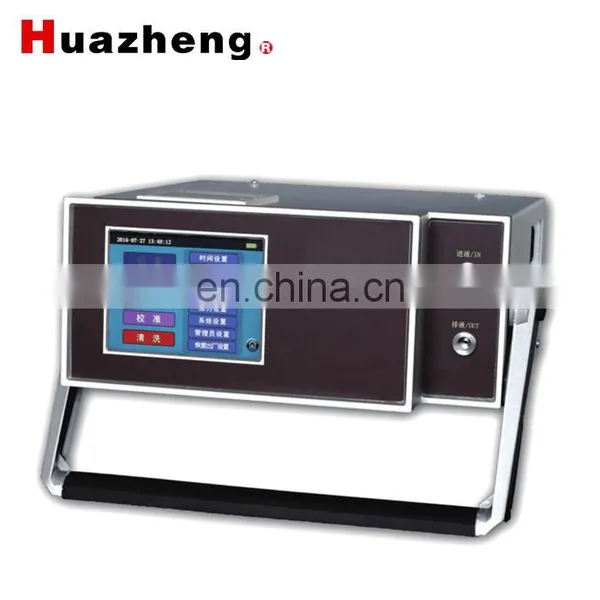

The HZJS-1B portable oil particle counter is designed using the principle of photoresist (shading method) to detect the size and number of particles in a liquid. Can be widely used in aviation, aerospace, electric power, petroleum, chemical, transportation, port, metallurgy, machinery, automobile manufacturing and other fields for hydraulic oil, lubricating oil, transformer oil (insulating oil), automotive oil (turbine oil), gear Oil, engine oil, aviation kerosene, water-based hydraulic oil and other oils are used to detect solid particle contamination, and to detect insoluble particles in organic liquids and polymer solutions.

II. technical indicators

1. Measurement range: 1um ~ 100um
2. Measurement channel: 8 channels, particle size can be set arbitrarily (according to the selected calibration curve particle size range)
3. Sampling volume: ≥0.2ml
4. Sampling speed: 5 ~ 80ml / min
5. Resolution: <10%
6. Coincidence error limit: 10,000 grains / ml
7. Pressure range: low pressure: 0~6bar high pressure: 3~400bar
8. Viscosity range: maximum 350cst
9. Data Storage: 1000 Groups
10. Power supply: AC220V±10%; 50Hz; ≤200W
11. Battery capacity: 5200mA
12. Battery continuous working time: 4 to 6 hours
13. Data output: built-in printer and RS232 interface

From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
