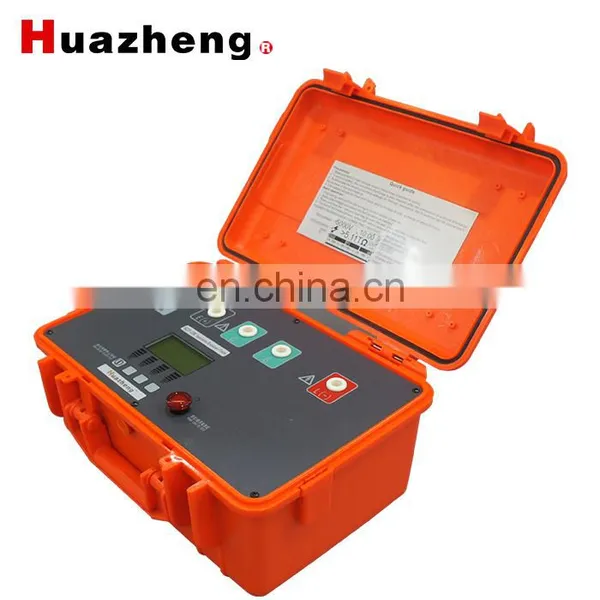

power transformer insulation resistance tester 15kv insulation resistance meter
Feature
High-voltage insulation resistance tester, with 5 range: 500V, 1000V, 2500V, 5000V, 10000V, 15000V,test up to 15TΩ, manual voltage regulation function.
Strict accordance with the safety standards for design
Insulation resistance range 15TΩ @ 15 kv
Short circuit current can be adjusted, maximum 5mA (Can be ordered as high as 10mA, short circuit current products).
Automatic display polarization index (PI), induced electric absorption test values than (DAR), and can test the leakage current and capacitance.
Anti-jamming performance is superior, the interference current reaches 2 mA, still ensure accuracy of test instruments.
2 methods for power: use of lithium ion batteries, battery life can be up to 4 hours (10000V @ 100MΩ).
Insulation resistance simulation column.
Perfect protection function, and the spare fuse prompt functions.
III. Specification Parameter
IEC 61010-1 CAT.IV 600V
IEC 61326 EMC specification: test, control and electrical equipment for testing
IEC60529 IP64 (Outer closed state)
battery:16.8V Lithium ion rechargeable battery
Battery Life:10000V@100M, 4 hour
size(L x W x H):37cm x 27cm x 17cm
weight:3.6kg
Test voltage accuracy: the nominal value 100% to 110%
Voltage measurement accuracy:5%+3V
Current test range:10mA
current measure precision:5%+0.2nA
short-circuit current: 5mA
Capacitance test range:20uF
Capacitance testing accuracy:15%+0.03uF
Insulation resistance testing range and accuracy (T:23±5ºC ,RH :45 – 75%)
| 500V | 1000V | 2500V | 5000V | 10000V |
Unspecified | <1M | <1M | <1M | <1M | <1M |
5% | 1M-10G | 1M-20G | 1M-100G | 1M-100G | 1M-200G |
20% | 10G -100G | 20G-200G | 100G-1T | 100G-1T | 200G-2T |
Unspecified | > 100G | > 200G | > 1T | > 1T | > 2T |
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
