Factory price Factory price 10kv insulation resistacnce tester mega ohm meter
Feature
Intelligent High-voltage insulation resistance tester, with 5 range: 500V, 1000V, 2500V, 5000V, 10000V, test up to 10TΩ.
Strict accordance with the safety standards for design
Insulation resistance range 10TΩ @ 10 kv
Short circuit current can be adjusted, maximum 5 mA (Up to 10mA short circuit current product can be ordered.
Automatic display polarization index (PI), Induced electric absorption ratio test values (DAR), and can test the leakage current and capacitance.
The anti-interference performance is superior. When the interference current reaches 2mA, the instrument still ensures the test accuracy.
Rapid discharge of capacitive test products, no need for manual discharge when testing cables, automatic rapid discharge of instruments.
2 power supply modes: the battery is powered by lithium ion battery, and the battery life can reach 4 hours (10000V @100m test resistance). It can also be charged while in use. In case of power failure, it can be automatically converted from AC power supply to battery power supply.
Insulation resistance simulation column.
Perfect protection function, and the spare fuse prompt functions.
III. Specification Parameter
IEC 61010-1 CAT.IV 600V
IEC 61326 EMC specification: test, control and electrical equipment for testing
IEC60529 IP64 (Outer closed state)
AC Power:220V±10%,50/60 HZ ,20 VA
battery:16.8V Lithium ion rechargeable battery
Battery Life:10000V@100M, 4 hour
size(L x W x H):26cm x 20cm x 16cm
weight:3kg
Test voltage accuracy: the nominal value 100% to 110%
Voltage measurement accuracy:5%+3V
Current test range:10mA
current measure precision:5%+0.2nA
short-circuit current: 5mA
Capacitance test range:20uF
Capacitance testing accuracy:15%+0.03uF
Capacitor discharge rate: from 10000V to 10V,0.5S/µF
Insulation resistance testing range and accuracy (T:23±5ºC ,RH :45 – 75%)
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

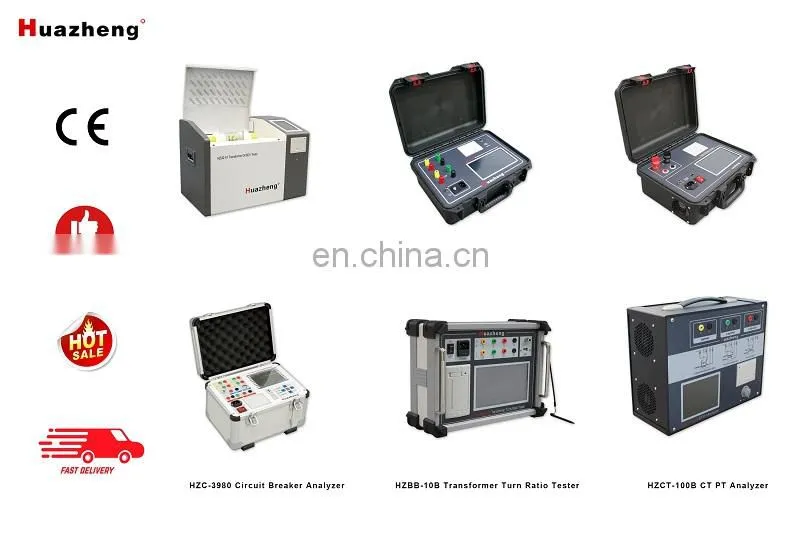

Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
