RCD Consequence Loop/Line Impedance Insulation Resistance Earthing Continuity Tester

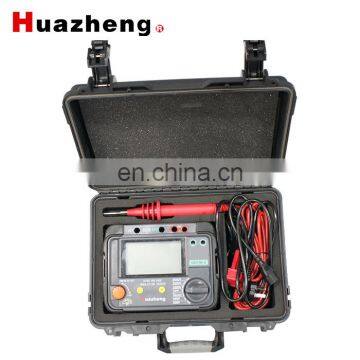

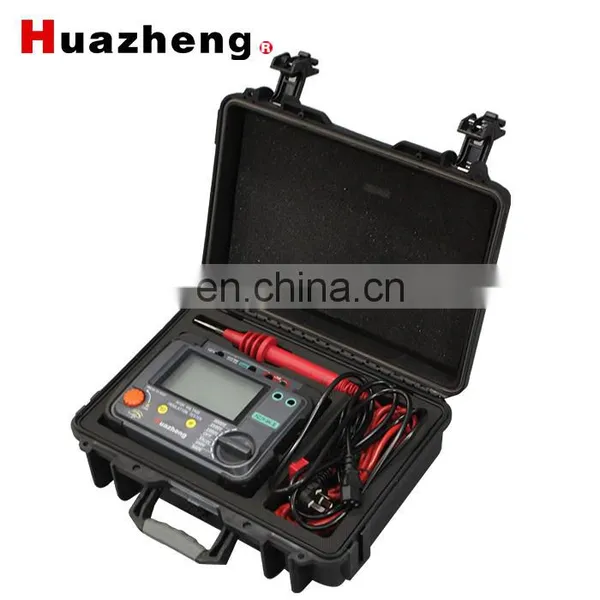

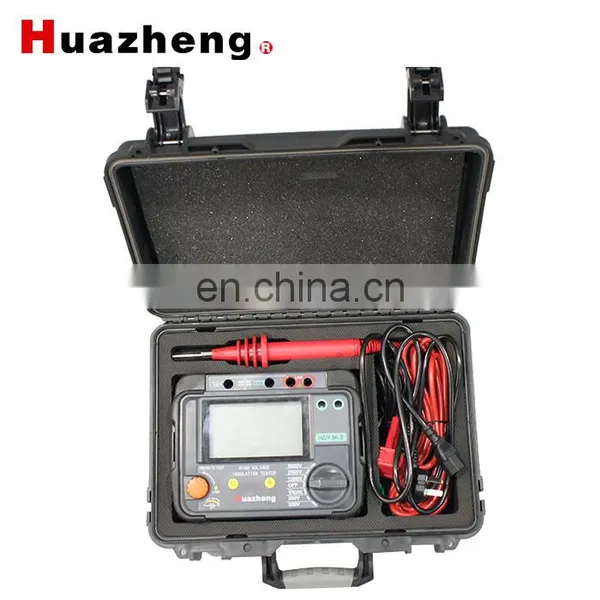

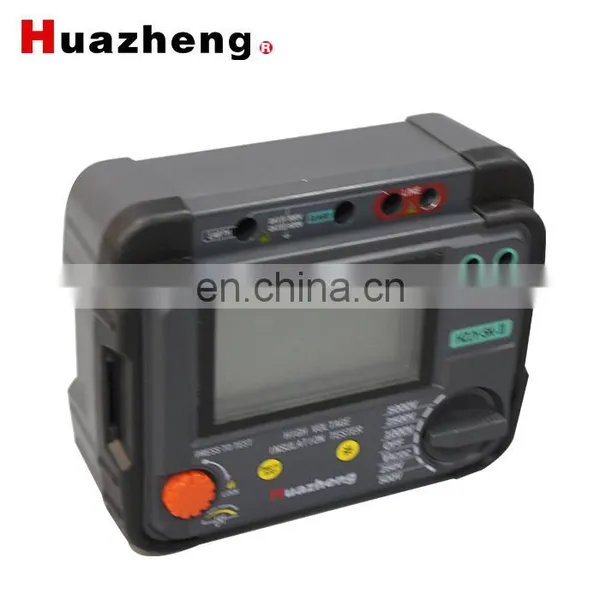

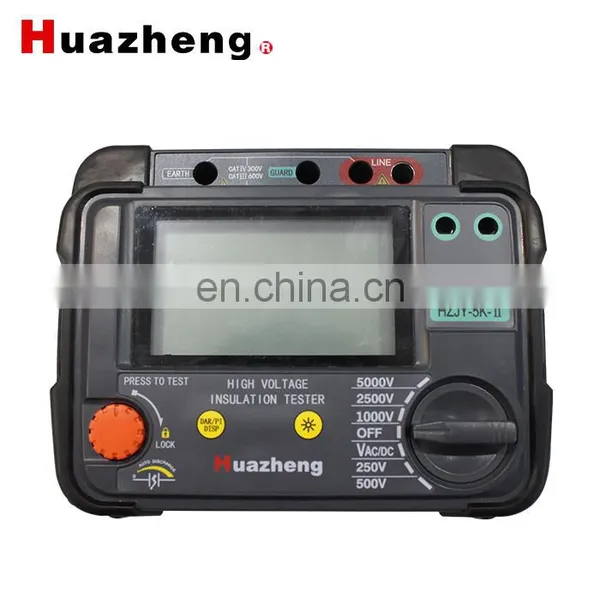

MODLEHZJY-5K-IIare high voltage insulation resistance testers with 5-range(HZJY-5K-II)for measuring insulation resistance.
1. Designed to meet the following safety standards:
IEC 61010-1,-2-30 (CAT III 600V/CAT IV 300V Pollution degree 2)
IEC 61010-031 (Requirements for hand-held probes)
2. With auto-discharge function
When an insulation resistance like a capacitive load is measured, electric charges stored in capacitive circuits are automatically discharged after the measurement. Discharge can be checked on the voltage monitor.
3. Backlight function to facilitate working at dimly illuminated location or at nighttime work.
4. Bar graph display
5. Audible and visible LIVE circuit warning
6.With Auto-power off function
The instrument automatically will turn itself off if there is no function change or button press for 10 min to conserve battery power.
7. Auto-measurement and display of PI (Polarization Index), DAR(Dielectric Absorption Ratio)
Specification
Rated voltage | 250V | 500V | 1000V | 2500V | 5000V |
MeasuringRange | 0.1~100.0MΩ | 0.1~99.9MΩ 80~1000MΩ | 0.1~99.9MΩ 80~999MΩ 0.80~2.00GΩ | 0.1~99.9MΩ 80~999MΩ 0.80~9.99GΩ 8.0~100.0GΩ | 0.1~99.9MΩ 80~999MΩ 0.80~9.99GΩ 8.0~99.9GΩ 80~20000GΩ |
Display range | 0.1~100.0 MΩ | 0.1~1000 MΩ | 0.1M~2.00 GΩ | 0.1M~100.0 GΩ | 0.1M~2000 GΩ |
Open circuit Voltage | DC250V +10% ,-10% | DC 500V + 20%,-10% | DC 1000V + 20%,-0% | DC 2500V +20%,-0% | DC5000V +20%,-0% |
Rated Current |
|
| 1MΩ 1mA~1.2mA | 2.5MΩ 1mA~1.2mA | 5MΩ 1mA~1.2mA |
Short-circuit Current | 5mA±0.5mA | ||||
Accuracy | ±5%±3dgt | ±5%±3dgt±20% | |||
Voltage monitor for insulation resistance range
MODLEHZJY-5K-II:30 – 6000V (resolution 10 V): ±10%rdg±20V
This monitor is used to check whether electric charges stored no the equipment under test are discharged or not. The voltage value measured and displayed on the LCD is a reference value. Please note that the indicated value, when an external AC voltage is applied to the instrument, is not a correct value.
Voltage measurement range
Range | 250V | 500V | 1000V | 2500V | 5000V | VAC/DC | ||||
Output at Short-circuit | 600mA | 110mA | ||||||||
When rated current is outputted | 650mA/0.25MΩ | 800mA/0.5MΩ | 1000mA/1MΩ | 1350mA/2.5MΩ | 1350mA/5MΩ | |||||
Output at open circuit | 40mA | 40mA | 50mA | 80mA | 150mA | |||||
Stand-by | 25mA | |||||||||
Backlight on | Increased by 40mA | |||||||||
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
