HZRC300 Hot Sale|0.01ohm Accuracy Clamp Ground Meter Digital Clamp Earth Tester
HZRC300 Clamp Ground Meter Digital Clamp Earth Tester Usage
HZRC300 is widely used in the grounding resistance measurement of the power, telecommunications, meteorology, oilfield, construction and the -4- industrial and electrical equipment.
HZRC300 in the measurement of a grounding system with loop current, does not require breaking down the grounding wire, and need no auxiliary electrode. It is safe, fast and simple in use.
HZRC300 earth ground clamp meter can measure the integrated value of the grounding body resistance and the grounding lead resistance.
HZRC300 Clamp Ground Meter Digital Clamp Earth Tester Benefits
1. Wider range: 0.01Ω-1200Ω
2. Stored data: 99 groups.
3. Resistance Resolution: 0.01Ω
4. Size of Jaw: 65*32(mm) / ø32(mm)
5. Sound and light alarm, "beep - beep - beep -" alarm sound.
6. Breakthrough in self-test the boot a long time to wait, start immediately into the test.
7. Breakthrough relay self-test mode, using the most advanced processing algorithms and digital integration technology, a fully intelligent.
8. Break the old product to heavy issues, more in line with characteristics of handheld devices.
9. The new design, panel 6 button operation, the performance through.
10. Lower power consumption: Maximum operating current not exceeding 50mA.
HZRC300 Clamp Ground Meter Digital Clamp Earth Tester Technical Data
Power Supply | 6VDC (4 *5# alkaline battery) |
Working Temperature | -10°C to 55°C |
Relative Humidity | 10% to 90% |
LCD | 4-digital LCD, 47* 28.5mm in length |
Span of Jaw | 28mm |
Net Weight | 1160g |
Dimension(mm) | 285x85x56mm |
Protection Level | Double insulation |
Structural Feature | In the jaw way |
Shift | Automatic |
External Magnetic Field | < 40A/m |
External Electric Field | < 1V/m |
Measuring Time | One second |
Resistance Measurement Frequency | >1KHz |
Maximum Resistance Measurement Resolution | 0.001 O |
Range of Resistance Measurement | 0.01~200 O |

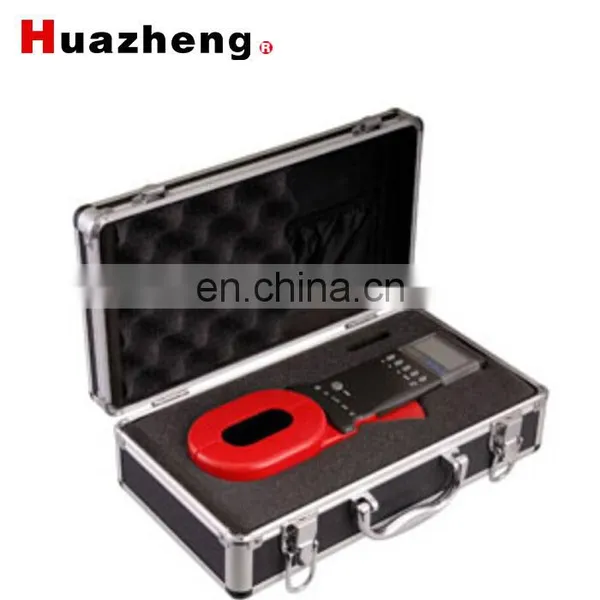

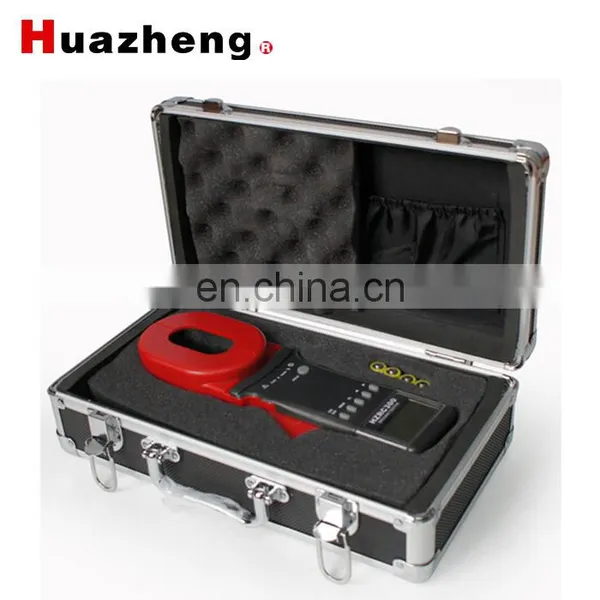

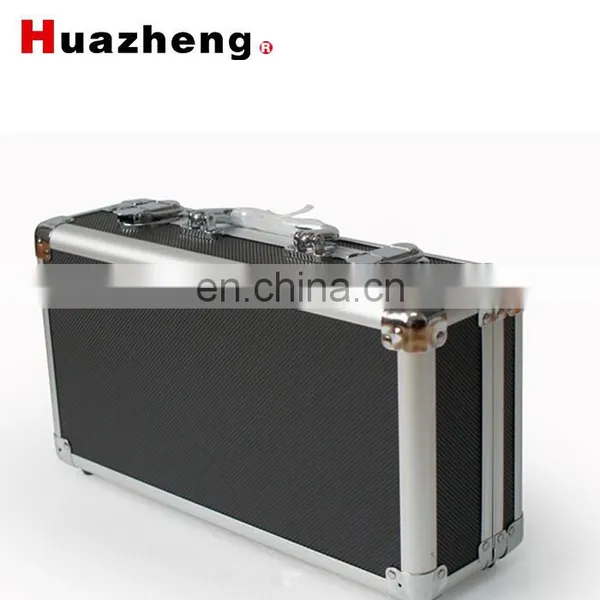

Accessories | Carry Case(1),Strap(1), 5# Alkaline Battery |
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is founded in 2008,the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
Our main products : Insulation Oil Tester, Cable Fault Locator, High Voltage Generator,transformer tester, relay protection tester,insulation resistance tester,Power Quality Analyzer and so on.
Close to Tianjin port, the transportation is convenient. our customers come from More than 50 countries, like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
What's more, gurantee 1 year,life long maintance .Products through the CE, ISO, IEC certification, quality and reliable, factory price.
Warmly welcome all partners to join us for mutual benefits cooperation.
