Circuit Breaker Mechanical Characteristic Tester Vacuum Switch Tube Vacuum Degree Tester

1.HS code is 9030820000.
2.Wooden or carton box with foam inside.
3.No fumigation,not influence the delivery.
4.Standard of CE ISO IEC.
5.Customer OEM packing is also available">circuit breaker analyzer & timer Packaging:
1.HS code is 9030820000.
2.Wooden or carton box with foam inside.
3.No fumigation,not influence the delivery.
4.Standard of CE ISO IEC.
5.Customer OEM packing is also available

circuit breaker mechanical characteristic tester Vacuum Switch Tube Vacuum Degree Tester

Vacuum switch vacuity tester circuit breaker analysis Introduction:

In JB8738-1998(vacuum interrupter arc chamber of 3.6-40.5KV AC high voltage switchgear)established by high-voltage switchgear National Standardization Technical Committee, it is prescribed that the internal gas pressure measurement and allowable storage time limit inspection must be executed for any user and producer of interruption arc chamber of high-voltage vacuum switchgear. At the same time, in National Standardization -JB8738-1998, it is also noticed that allowable storage time limit of interruption arc chamber should be 20 years, and internal gas pressure of the vacuum interrupter arc chamber should be less than 6.6×10^-2Pa.

Vacuum switch vacuity tester circuit breaker analysis  Product Specifications:

1. Detection objects: various models of vacuum switch

   Detection method: using new excitation coil and detect vacuum tube without

   disassembly

   Application area: This instrument is a all-purpose type, can measure the vacuum  of variety models of open magnetic vacuum tube.

   Detection range: 10^-5-10^-1 Pa

   Measurement accuracy: 10^-5-10^-4 Pa, 15%

                                                 10^-4-10^-3 Pa, 15%

                                                 10^-3-10^-2 Pa, 10%

                                                  10^-2-10^-1 Pa, 10%

   Magnetic field voltage: 1700V

   High-voltage of pulsed electric field: 30KV

   Open distance of switch tube in vacuum test: normal open distance

   Testing environment: -20℃~ 40℃

   Weight: 24kg

   Dimension: 420 × 320 × 280 (mm)

   Sampler: magnetic coil

2.

Company Profile

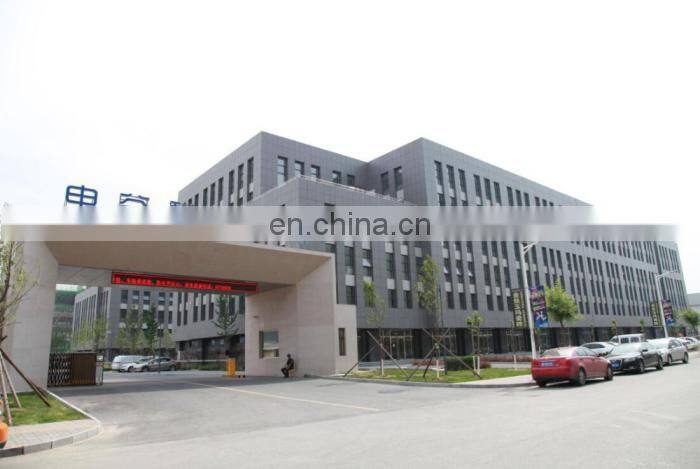

Huazheng Electric Manufacturing (baoding) Co., Ltd.

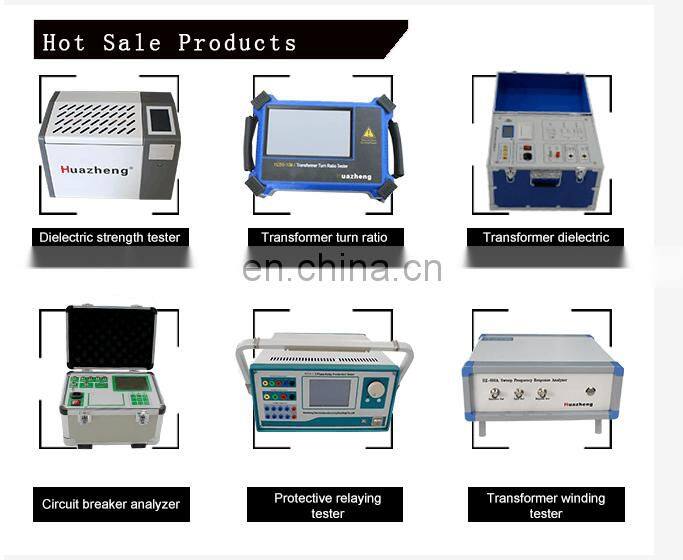

Huazheng Electric Manufacturing (baoding) Co., Ltd. is established in year of 2008, located at Baoding city, Hebei province, China. It is a professional company specializing in the development and production of electric power testing equipment. Main products are transformer oil test series, high voltage test series, safety product test series, cable fault location system, relay & microcomputer protection test, etc. All of our products comply with international quality standard and obtained CE and ISO 9001 certificate. Our products are exported to over 100 countries and regions , and cooperate with some well-known enterprise in the world such as Ausgrid and Orient Oils, etc. We are dedicated to making HUAZHENG brand an industry benchmark in order to realize the dream of the HUAZHENG brand and serve the global clients. You are warmly welcome to visit Huazheng company!
