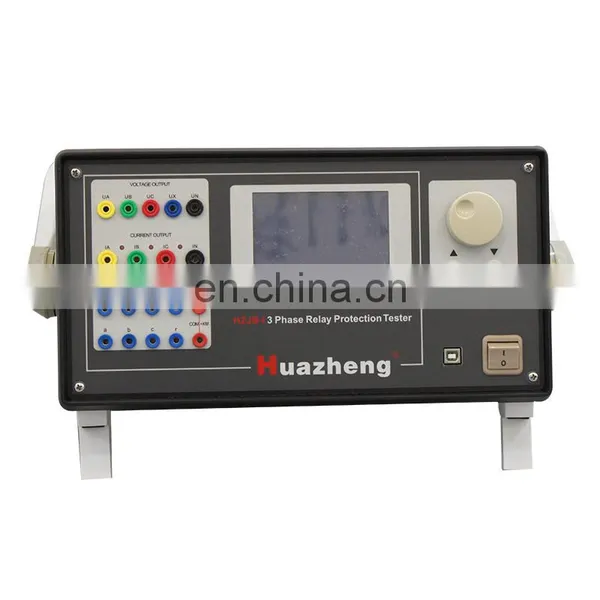

HZJB-I Protection Relay 3-phase Relay Tester Relay Protection Tester

 Protection Relay 3-phase relay tester relay protection tester Description

The host uses high-speed high-performance digital signal processor computing speed, the transmission bandwidth of the fundamental wave 360 points per week can produce high-density fitting sine wave. This is the same output of the highest level. Fidelity waveform distortion, especially in the harmonic output, even for the sixth harmonic, 300Hz can achieve a high density 60 points per cycle D / A's.

Protection Relay 3-phase relay tester relay protection tester Features

1. The standard output of 4 phases of voltage and 3 phases of current

2.The stand-alone operation is convenient

3. Dual operation model, connect computer for work

4.Strong function of software

5.The amount of switch quantity contacts is rich

6.Large LCD screen

7. Self-protection

8.Independent DC power output

9.Cost-effective

 Protection Relay 3-phase relay tester relay protection tester Technical Data

Alternating current output

Output accuracy: 0.5magnitude

Phase current output (effective value): 0~40A

Three parallel phase current output (effective value): 0~120A

Phase current value with long time under permission (effective value): 10A

Phase current maximum power output: 420VA

Three parallel phase current maximum power output: 900VA

Three parallel phase current maximum work time: 10s

Frequency range (base wave): 20~1000Hz

Harmonic frequency number: 1~20 time

Direct current output

Output accuracy: 0.5magnitude

Current output: 0 ~ ± 10 A/each phase, 0 ~ ± 30 A/every three parallel

Maximum output of load voltage: 20v

Alternating current output

Output accuracy: 0.5magnitude

Phase voltage output (RMS): 0 ~ 120v

Line voltage output (RMS): 0 ~ 240v

Phase voltage/line voltage power output: 80VA/100VA

Frequency range (base wave): 20 ~ 1000Hz

Harmonic frequency number: 1 ~ 20 times

Direct voltage output

Output accuracy: 0.5magnitude

Phase voltage output amplitude: 0 ~ +160v

Line voltage output amplitude: 0 ~ + 320v

Phase voltage/line voltage power output: 70VA/140VA

From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
