Home > Products > Deep Groove Ball Bearings > Press Welder Bearing MR63 Miniature Bearing MR63

Press Welder Bearing MR63 Miniature Bearing MR63

FOB Price

US$ 0.2 - 0.3 / Set

10 Sets(Min. Order)

Port qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Model Number	MR63
Number of Row	Single Row	Seals Type	open
Precision Rating	p0 p6 p5 p4 p2	Bore Size	2.99, 3

Product Description

press welder bearing MR63 miniature bearing MR63 bearings

MR63 bearing 3x6x2mm

Bearing MR63

MR63 Miniature deep groove ball bearings

MR63 ball bearing

MR63 GCr15 bearing

drilling bearing MR63

Miniature deep groove ball bearing size: d: 1-9mm; D: 3-30mm

size: 3x6x2mm

Weight: 0.2KG

MF63 : 3x6x2mm

Seals Type: Open, Z, ZZ, RS, 2RS, RZ

Material: GCr15; stainless steel, ceramics

MR63 bearing is a kind of multi-purpose miniature bearing. CLUNT Bearing manufacture this MR63 bearing through strict inspection which sales in mass in Europe and North America market. It widely used in precision instruments, micro motor, remote control model, etc industries. We have a large stock of MR63 bearing which could guarantee deliver in time

Products name	press welder bearing MR63 miniature bearing MR63 bearings
Series	miniature series
Material	Chrome steel (Gcr15)
Service	OEM service
Tolerance Grades	ABEC-1(P0), ABEC-3(P6), ABEC-5(P5), ABEC-7(P4)
Noise Level	EMQ V1 Z2, EMQ V2 Z3, EMQ V3 Z4, EMQ V4
Sealing/Shield	Open, Z, ZZ,RS, 2RS,RZ,2RZ
Product Advantage	A:Very smooth hand feeling B:High precision, long life, low noise C:high-end technology D:good aftersales service
Package	A: tube package+outer carton+pallets B: single box+outer carton+pallets C: tube package+middle box+outer carton+pallets D: According to your’s requirement
	other range
1) 6000 series:	604.605.606.607.608.609.6000.6001.6002.6003.6004.6005.6006.6007.6008.6009.6010.6011. 6012.6013.6014.6015.6016.6017.6018.6019.6020.6021.6022.6024.6026.6028.6030.6032.6034. 6036.6038.6040.6044.6048.6052.6056.6060.6064.6068.6072.6080.6088.6092
2) 6200 series:	624.625.626.627.628.629.6200.6201.6202.6203.6204.6205.6206.6207.6208.6209.6210.6211. 6212.6213.6214.6215.6216.6217.6218.6219.6220.6221.6222.6224.6226.6228.6230.6232.6234. 6236.6238.6240.6248.6252
3) 6300 series:	634.635.636.637.638.639.6300.6301.6302.6303.6304.6305.6306.6307.6308.6309. 6310.6311.6312.6313.6314.6315.6316.6317.6318.6319.6320.6321.6322.6324.6326.6328.6330.6334.6340
4) 6400 series:	6403.6404.6405.6406.6407.6408.6409.6410.6411.6412.6413.6414.6415.6416.6417.6418.6419.6420.6422..6426
5) 6700 series:	673.674.675.676.677.678.679.6700.6701.6702.6703.6704.6705
6) 6800 series:	685.686.687.688.689.6800.6801.6802.6803.6804.6805.6806.6807.6808.6809.6810.6811.6812
7) 6900 series:	695.696.697.698.699.6900.6901.6902.6903.6904.6905.6906.6907.6908.6909.6910.6911.6912
8)16000 series:	16001.16002.16003.16004.16005.16006.16007.16008.16009.16010.16011.16012.16013.16014.16015
9)Inch R series	R156,R166,R3,R3A,R168,R188,R4,R4A,R6,R8,R8-7, R10,R12,99502H
10)Inch 16 series	1601,1602,1603,1604,1605,1606,1607,1614,1615,1616, 1620,1621,1622,1623,1628,1630,1633,1635

Introduction of Deep Groove Ball Bearing

Deep groove ball bearings are most commonly used rolling bearings . It can carry much heavy axial loads after increase of radial clearance , can used for carrying pure axial loads .

Deep Groove Ball Bearing Application:

The deep groove ball bearing can be used in many different places such as: Gearbox, instruments and meters, electric motor, electric appliance, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, construction machinery, and so on.

Features:

1. Seals: Open Type, Sealed Type, Shielded Type;

2. Cage: Machined Brass Cage, Steel Cage, Plastic Cage;

3. Outer Ring: With our Without Snap Ring Groove;

4. Precision Grade: P0, P6, P5, P4;

5. Clearance Grsde: C2, C0, C3, C4, C5;

6. Vibration Grade: Z1V1, Z2V2, Z3V3.

CLUNT catalog

1.deep groove ball bearing

MR series bearing	BORE(d)	O.D.(D)	WIDTH(B)	WEIGHT
	mm	mm	mm	g
	inch	inch	inch	g
MR 52	2	5	2	0.13
MR 52	0.0787	0.1969	0.0787	0.13
MR 62	2	6	2.5	0.32
MR 62	0.0787	0.2362	0.0984	0.32
MR 72	2	7	2.5	0.44
MR 72	0.0787	0.2756	0.0984	0.44
MR 82X	2.5	8	2.5	0.57
MR 82X	0.0984	0.3150	0.0984	0.57
MR 63	3	6	2	0.20
MR 63	0.1181	0.2362	0.0787	0.20
MR 83	3	8	2.5	0.52
MR 83	0.1181	0.3150	0.0984	0.52
MR 93	3	9	2.5	0.71
MR 93	0.1181	0.3543	0.0984	0.71
MR 74	4	7	2	0.28
MR 74	0.1575	0.2756	0.0787	0.28
MR 84	4	8	2	0.38
MR 84	0.1575	0.3150	0.0787	0.38
MR 104	4	10	3	1.00
MR 104	0.1575	0.3937	0.1181	1.00
MR 85	5	8	2	0.32
MR 85	0.1969	0.3150	0.0787	0.32
MR 95	5	9	2.5	0.55
MR 95	0.1969	0.3543	0.0984	0.55
MR 105	5	10	3	0.88
MR 105	0.1969	0.3937	0.1181	0.88
MR 106	6	10	2.5	0.65
MR 106	0.2362	0.3937	0.0984	0.65
MR 126	6	12	3	1.30
MR 126	0.2362	0.4724	0.1181	1.30
MR 117	7	11	2.5	0.67
MR 117	0.2756	0.4331	0.0984	0.67
MR 137	7	13	3	1.40
MR 137	0.2756	0.5118	0.1181	1.40
MR 128	8	12	2.5	0.75
MR 128	0.3150	0.4724	0.0984	0.75
MR 148	8	14	3.5	1.80
MR 148	0.3150	0.5512	0.1378	1.80

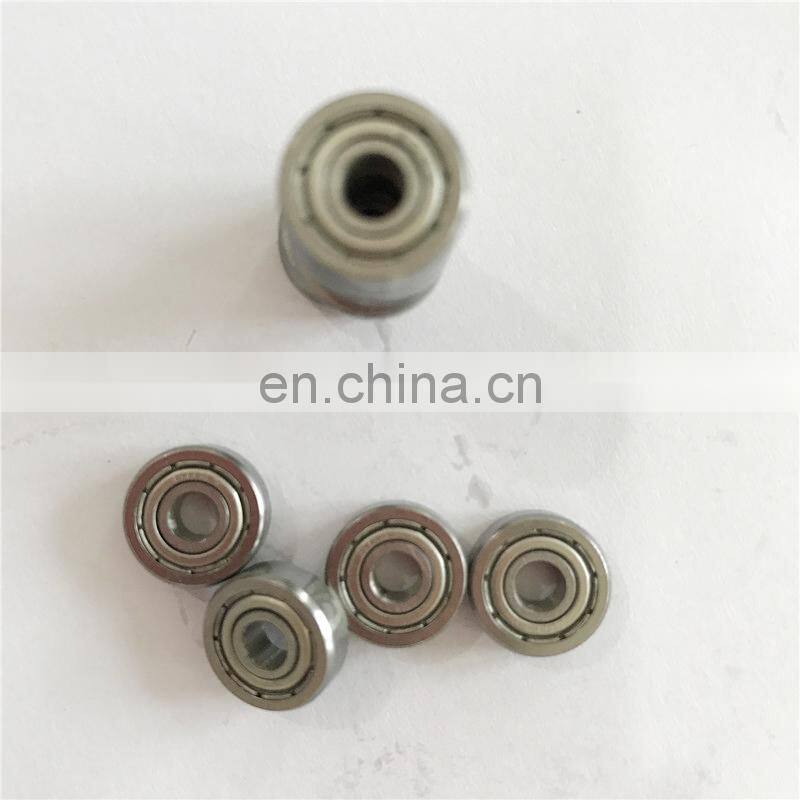

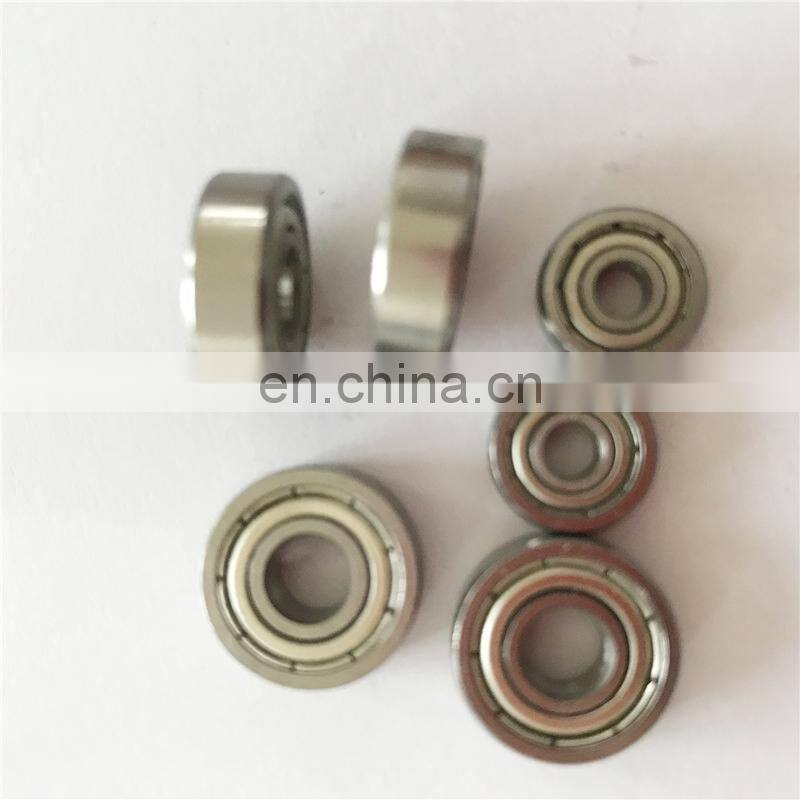

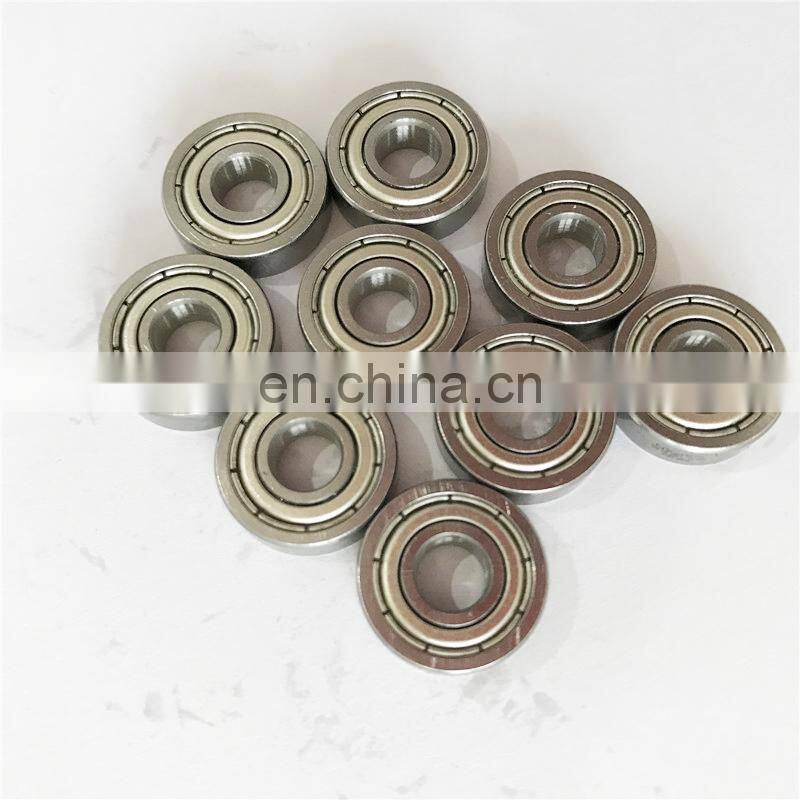

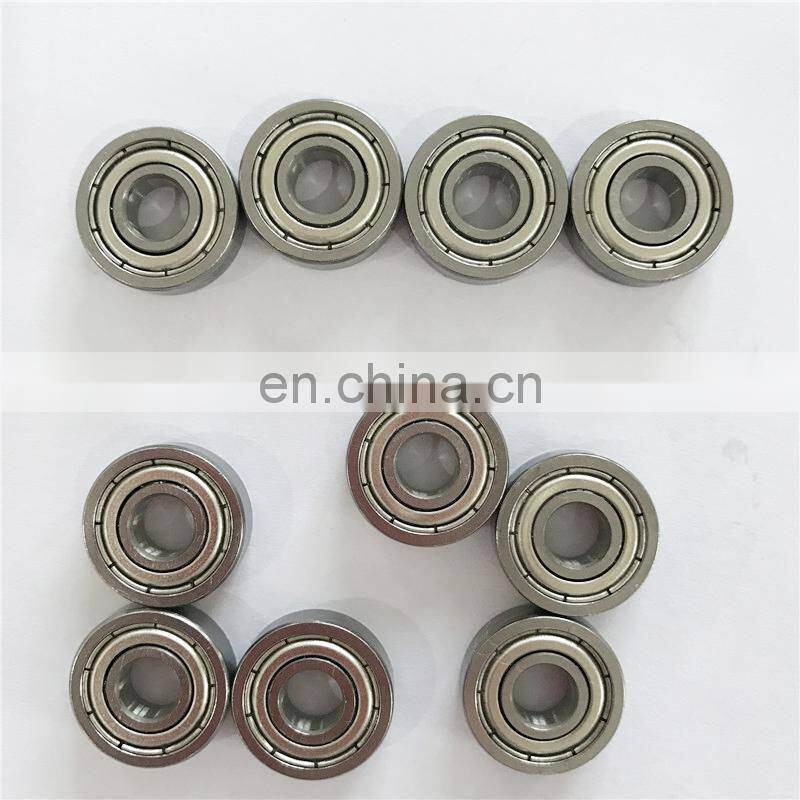

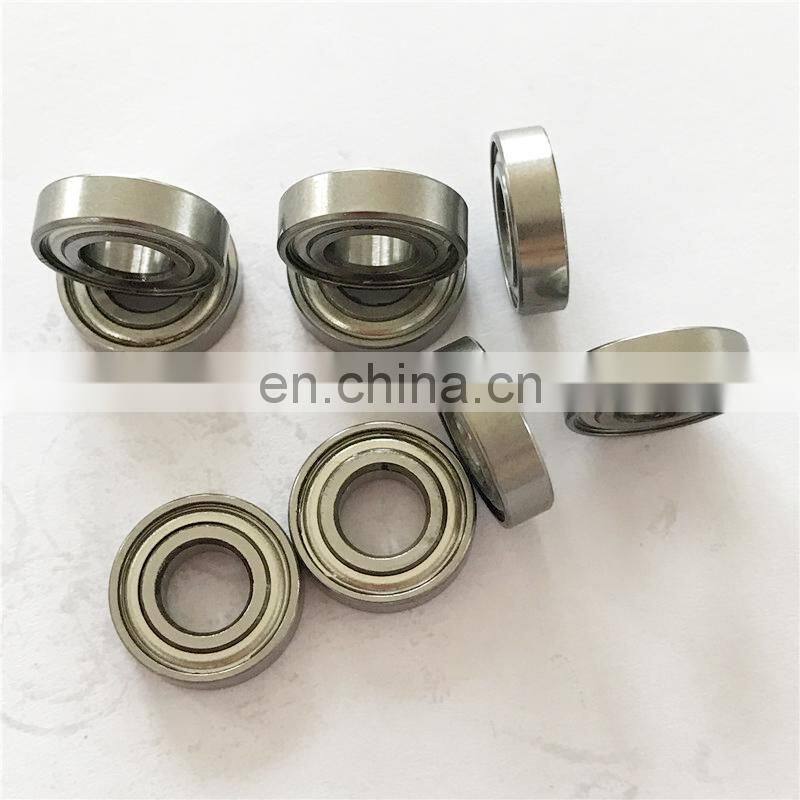

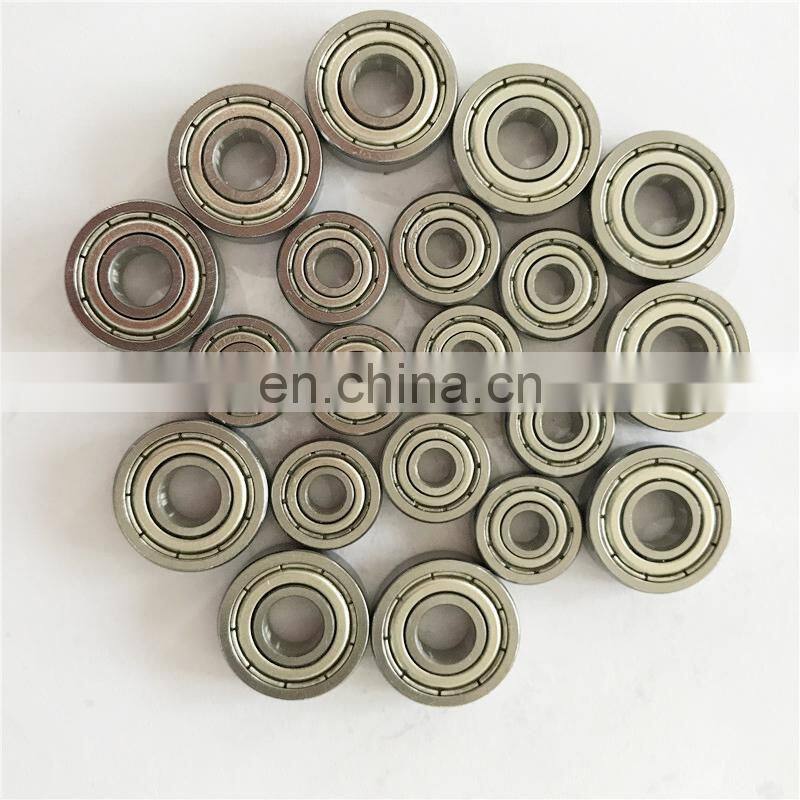

The photos:

Company Information

Jinan Kelunte Bearing Co., Ltd. is a professional bearing manufacturer and is engaged in the imported bearings. Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing,Ceramic Bearing,cylindrical roller bearing, spherical roller bearing . and our brands:CLUNT.

We are the professional supplier of BEARING with high precision quality and pretty competitive price.

We have export the bearings to the European & American Markets/Middle East Market/Asia Market.

We can supply the following bearings.

1. Deep groove ball bearings (68series,69series,60series,62series,63series,64series)

2.Tapered roller bearing(320 series,322 series,323 series)

3.Linear bearing

4.Thrust ball bearing(511 series,512 series,513 series)

5.Cylindrical roller bearing(NU10 series,NJ2 Series,N3 series,NN series

6.Needle roller bearing

7.Angular contact ball bearing(70 series.72 series.73 series.74 series)

8.Spherical roller bearing

9.Thurst roller bearing

10.Spherical ball bearing(230 series,222series,223series)

11.pillow block bearing(UCP series,UCF series,UCT series,UCFL series)

Packaging & Shipping

Packing details:

1.brand Plastic bag+brand color box+carton+wooden pallet.

2.Neutral package+carton+wooden pallet.

3.According to customer request.

4.Own brand:CLUNT package+carton+wooden pallet.

Payment Terms:

TT,Western Union,Paypal

How much Deposite?

T/T 30% of total as deposit, balance 70% Before Shipment

EXHIBITION CUSTOMERS

Our Services

Jinan kelunte bearing Co., Ltd. keep improving and do our best to serve you.

1. OEM and ODM bearing assembly are welcome!

2. Online 24 hours

3. Free sample

We are very honored if you come to visit our factory, welcome at any time

FAQ

Q:Are you factory or trading company?

A:We are factory.

Q:Where is your factory located in?

A:Linqing.

Q:Could i get samples before order?

A:Yes,sure,we can send you samples,let you check quality first.

Q:What is your MOQ?

A:one piece.

Q:What is your delivery time?

A:For small quantity we have in the stock,large quantity need 10-15 days.

Q:What is your payment terms?

A:Western Union,TT,Paypal.

Q:Do you supply OEM?

A:Sure
