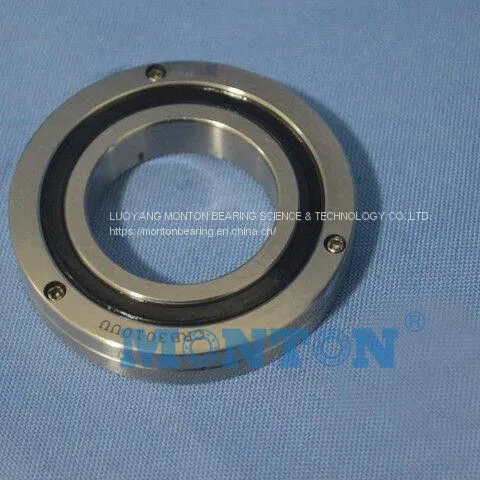

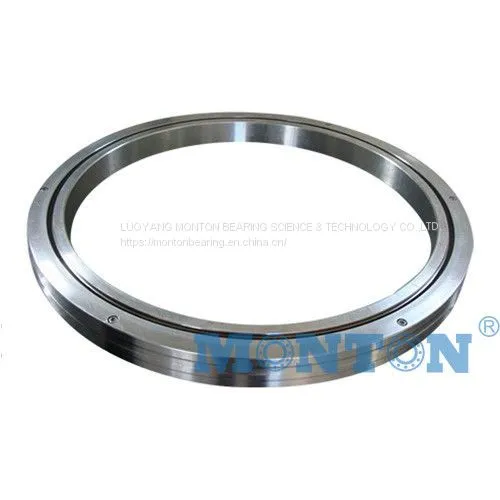

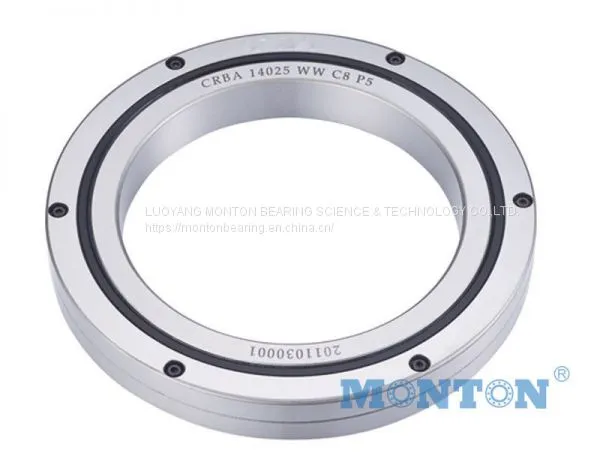

CSF14-3516 cross roller bearing manufacturers robot thin section bearing
| Designation | Dimensions (h/li) | Basic Load ratings(KN) | Weight | |||||||||
| Bearing | d | D | T | D1 | D2 | D21 | D3 | n1-d1 | n2-d2 | Cr | Cor | kg |
| CSF14-3516 | 9 | 55 | 16.5 | 49 | 23 | 14.5 | 15.5 | 8-φ3.5 | 6-M4 | 4.6 | 5.1 | 0.25 |
Harmonic gear bearings Cross cylindrical roller structure, divided according to their use case split outer ring, the inner ring and the outer and inner rings integral whole two categories. Rolling element is a cylindrical roller, 90 ° to each other vertically aligned in a V-raceway. This configuration enables a single bearing can withstand the load axial load, radial load and overturning moment, etc. in all directions, has high bearing stiffness and rotation accuracy complex carrying capacity; these bearings are compact, comes with bearing mounting holes for easy installation directly to the customer, suitable for a variety of different types of harmonic reducer.
Monton series bearings designed for this robot manipulator with R & D and harmonic reducer cross roller bearings, and precision cross roller bearing the same internal structure, have high rigidity, high precision turning, colleagues and can withstand the joint in all directions load. Harmonic gear during operation, these bearings have a crucial role, bearing directly determine the accuracy of gear teeth in the wrong resistance movement, and therefore PRS harmonic gear bearings ensure accuracy of the overall state of the harmonic gear It played a crucial role.
CSF (CSG) type (split outer ring, the inner ring as a whole) is divided into two outer ring, the inner ring structure as a whole, does not require the installation flange and housing for CSG (CSF) series of all types of gear .
Standards of High Load Capactity And High Higidity Crossed Roller Bearing For Harmonic Drive Gear Reducer.
