Replace oil filter V2.1217-08 V2121708 ARGO element OFF-LINE LOOPS oil filters

Name: Replace oil filter V2.1217-08 V2121708 ARGO element OFF-LINE LOOPS oil filters
Brand: Huahang
Price: USD $12 - 45 / Piece

FOB Price

USD $12 - $45 / Piece

5 Pieces(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Shanghai Qingdao Shenzhen Port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Huahang	Place of Origin:	Henan, China	Certification:	ISO9001:2008,CE
Warranty:	1 Year	Weight:	0.3-2.0KG
Dimension(LWH):	OD118 * H165mm	Condition:	New

Product Description

Specification

Oil filter elemnt mainly has hydraulic oil filter element,replacement imported filter element,polymer melt filter ,coalescence
separation filter ,non-standard customized filter element and so on.
Oil filter element is made of high quality fiber glass,stainless steel wire mesh ,sintered felt and other materials.High
strength,high porosity,good permeability,high corrosion resistant,pollutant carrying capacity,good filtering performance and long service life.

Technical data

1.The quality and performance can be guaranteed as original elements.
2.Temperature Range -4°F~212°F
3.Seals: nitrile seals, fluorocarbon seals for corrosive fluids.
4.Collapse pressure rating 21bar-210bar Hydraulic Liquid Filtration)
5.Filtering precision 3, 5, 10,20 and 50 micron.
6.Filter Medium: glass fiber, filter paper, stainless steel sinter fiber and stainless wALL BRANDSe mes
7.Fluid Compatibility Compatible with all petroleum oils,water glycols, oil/water emulsions, high water base fluids,and synthetic fluids compatible with Fluoro Rubber or EPR seals.

Product characteristics

1.Imported filter, uniform pore size, and low resistance, high dust holding capacity
2.Germany imported composite filter folding machine, increase the filter effective filtration area
3. The oil temperature cyproterone resin glue and seal securely
4. The thicker steel skeleton. Compressive drop strong
5.Factory inspection. Reliable quality
6.High pressure

Application

* Engineering machinery
• Ship engine
• Aerial work platform
• Construction and construction
• Agricultural agricultural machinery
• Truck hydraulic power system
• Hydraulic support hydraulic lifting system, mining mobile equipment
• Injection molding machine hydraulic transmission system
• Pulp and paper mill
• Petrochemical Industry - hydrocarbon processing
• Chemical industry - chemical treatment
• Power generation hydraulic system for wind power generation
• Steel and heavy metal smelting - blast furnace hydraulic system
• Pharmaceutical power control system

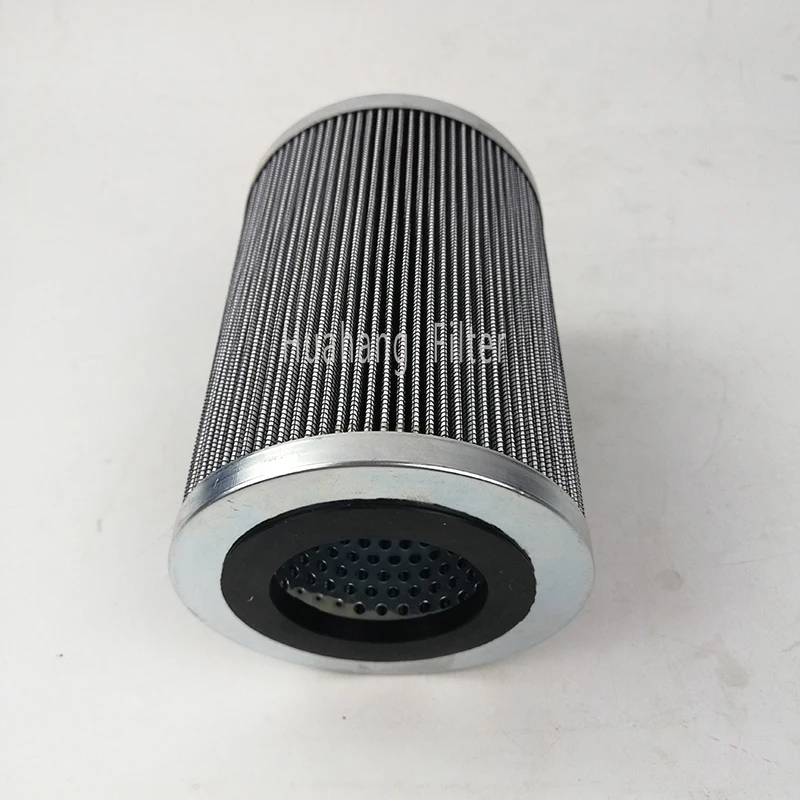

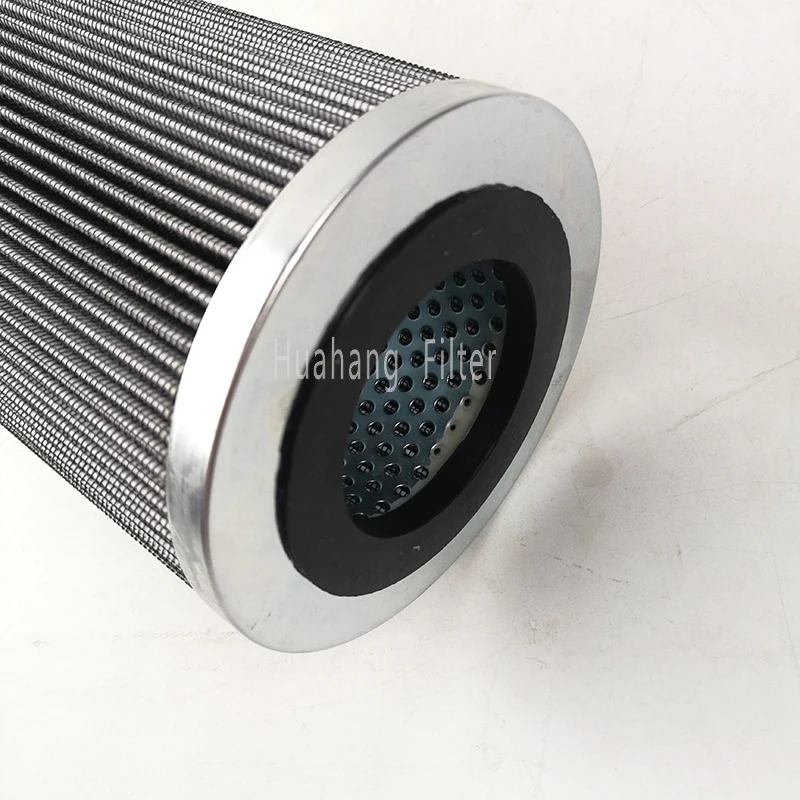

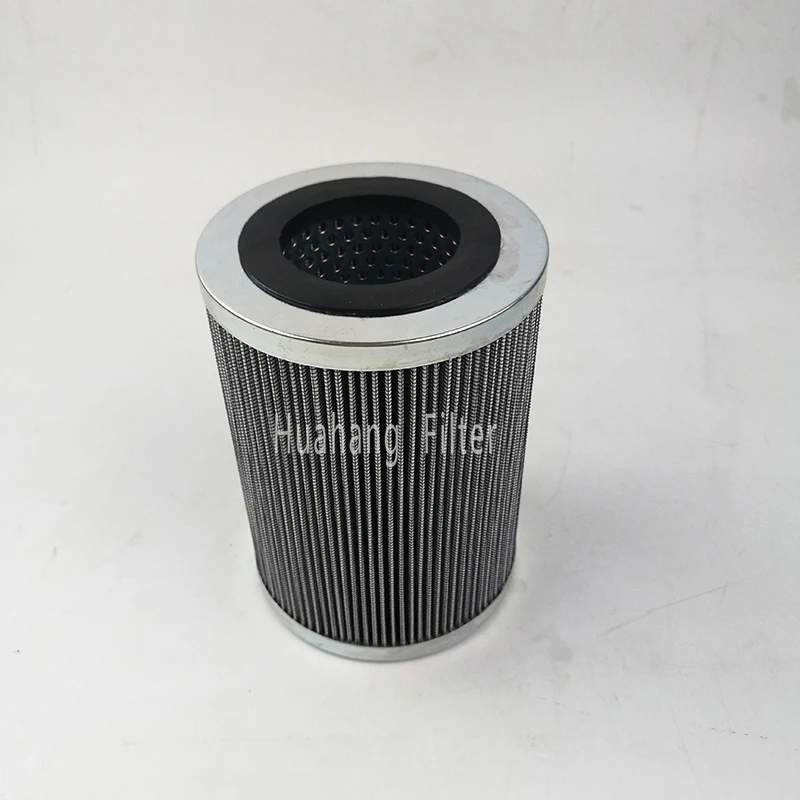

Detailed Images

ARGO V2.1217-08 V2121708 filter	FILTER(PLEATED MATERIAL)	Fiberglass
ARGO V2.1217-08 V2121708 filter	FILTER RATING	21 micron
ARGO V2.1217-08 V2121708 filter	END CAPS	GALVANIZED STEEL SHEET
ARGO V2.1217-08 V2121708 filter	INNER FILTER CORE/ INNER FILTER SKELETON	ARGO V2.1217-06 V2121706 filter
ARGOV2.1217-08 V2121708 filter	WORKING PRESSURE	8 bar or as your need
ARGO V2.1217-08 V2121708 filter	SEAL/ O-RING	NBR ,Si,ERP

Relative Codes

P3.0510-11 AS08001 P3.0510-00 P3.0720-00 P3.0510-11 S2.0920-10 S30712-00 V3.0510-26 V3.0620-88 V3.0823-06 K3.0918-52 P3.0510-02 P3.0720-01 S2.0920-15 S3.0712-05 V3.0510-36 V3.0623-03 V3.0823-08 K3.0920-52 P3.0510-05 P3.0730-51 S2.0920-20 S3.0720-05 V3.0510-56 V3.0623-06 V3.0823-13 K3.0920-62 P3.0510-11 P3.0730-52 S2.0923-00 S3.0817-00 V3.0510-58 V3.0623-08 V3.0823-16
K3.0925-52 P3.0510-50 P3.0817-01 S2.0923-01 S3.0817-02 V3.0520-03 V3.0623-13 V3.0823-18 K3.1026-52 P3.0510-51 P3.0817-12 S2.0923-05 S3.1017-10 V3.0520-06 V3.0623-18 V3.0833-03 K9.1234-52 P3.0510-52 P3.0823-01 S2.0933-05 S3.1017-15 V3.0520-08
V3.0623-26 V3.0833-06 K9.1237-52 P3.0510-53 P3.0823-12 S2.1023-08 S3.1023-05 V3.0520-13 V3.0713-03 V3.0833-08 P2.0613-01 P3.0510-62 P3.0833-01 S2.1023-10 S9.0622-22 V3.0520-16 V3.0720-06 V3.0833-13 P2.0613-02 P3.0520-00 P3.1117-00 S2.1033-01
V2.0833-03 V3.0520-18 V3.0720-08 V3.0833-16 P2.0617-11 P3.0520-01 P3.1117-10 S2.1033-05 V2.0833-06 V3.0520-53 V3.0720-16 V3.0833-18 P2.0717-01 P3.0520-02 P3.1123-00 S2.1033-10 V2.0833-08 V3.0520-56 V3.0723-06 V3.0923-08 P2.0717-02 P3.0520-05
P3.1123-10 S2.1113-00 V2.0920-03 V3.05205-8 V3.0723-08 V3.0933-06 P2.0723-01 P3.0520-51 P7.0610-01 S2.1117-08 V2.0920-06 V3.0525-03 V3.0725-56 V3.0933-08 P2.0723-02 P3.0520-52 S2.0605-10 S2.1117-20 V2.0920-08 V3.0525-06 V3.0725-58 V3.0940-06
P2.0833-01 P3.0520-62 S2.0613-00 S2.1124-01 V2.1217-03 V3.0525-08 V3.0730-53 V3.0940-08 P2.0920-02 P3.0525-01 S2.0613-05 S2.1217-00 V2.1217-08 V3.0525-13 V3.0730-56 V5.1240-06 P2.0920-11 P3.0607-01 S2.0613-10 S2.1217-05 V2.1217-36 V3.0525-16
V3.0730-58 W3.0623-08 P2.0920-22 P3.0613-51 S2.0613-15 S3.0508-50 V2.1260-26 V3.0525-18 V3.0730-68 W3.0720-08 P2.0923-01 P3.0613-52 S2.0717-10 S3.0508-51 V2.1260-36 V3.0607-03 V3.0817-03 W3.0817-06 P2.0933-01 P3.0620-51 S2.0720-05 S3.0508-55
V2.1460-26 V3.0607-06 V3.0817-06 W3.0817-08 P2.0933-02 P3.0620-52 S2.0720-10 S3.0510-00 V3.0510-03 V3.0607-08 V3.0817-08 P2.1030-01 P3.0623-02 S2.0723-00 S3.0510-05 V3.0510-06 V3.0617-06 V3.0817-13 P2.1217-12 P3.0623-11 S2.0823-00 S3.0520-00
V3.0510-08 V3.0617-08 V3.0817-16 P2.1217-21 P3.0712-00 S2.0920-00 S3.0520-05 V3.0510-13 V3.0620-53 V3.0817-18 P2.1220-01 P3.0712-01 S2.0920-01 S3.0623-00 V3.0510-16 V3.0620-56 V3.0817-26 P2.1220-02 P3.0713-01 S2.0920-05 S3.0710-00 V3.0510-18
V3.0620-58 V3.0823-03

TEST STANDARD

Filter anti-rupture verification---------------------------------ISO 2941
Filter structural integrity----------------------------------------ISO 2943
Filter Compatibility verification-------------------------------ISO 2943
Filter filtration--------------------------------------------------- ISO 4572
Filter differential pressure-------------------------------------ISO 3968
Flow-differential pressure test-------------------------------ISO 3968

Packing & Delivery

1.Carton inside,wooden outside,neutral packaging
2.As your requirements
3.By international express,air and sea
4.Shipment port:Qingdao or any other chinese ports
5.7-15 working days after confirming payment
