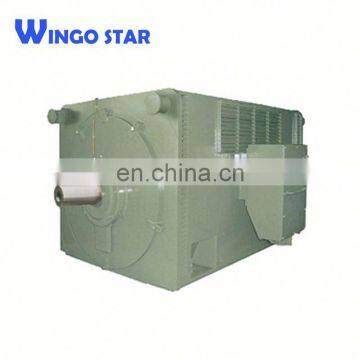

Wingo Star High Voltage y Series Three Phase Powerful Electric Motor 6kv
- Xingang Port China
- T/T Credit Card
You May Like
Product Details
| Brand Name | Wingo Star | Place of Origin | Hebei, China | |
| Model Number | Y |
Product Description
Product Introduction:
Cabinet structure for Y series high voltage motors is adopted and motor case is welded by cast iron with light weight and good rigidity; Lamination structure is adopted or the stator, insulation material with grade F is adopted for the winding of stator and its end has reliable fixing and binding. During the manufacturing period, it is subject to multiple inter-turn impulse voltage test and withstand voltage test to earth and is also to vacuum pressure impregnation (VPI) treatment; The rotor is made with casted aluminum process; The motors are used to drive various machineries, such as blowers, compressor, water pumps, stock-removing machines. It can be serve as the prime movers in coal mines, mechanical industry, power plants and carious industrial enterprises.
Brief introduction for products:
Basic Data | ||
No. | Brand Name | Wingo Star |
1 | Model Number | Y,YR, JR,YKK,YRKK,YKS |
2 | Type | Induction Motor |
3 | Structure | Asynchronous Motor |
4 | Place of Origin | Hebei, China (mainland) |
5 | Insulation Class | Class B/F/H |
6 | Frequency | 50HZ |
7 | Efficiency | IE2 & IE3 |
8 | Output Power | 200KW-4000KW or on request |
9 | Phase | Three Phase |
10 | Pole | 2P, 4P, 6P, 8P, 10P, 12P |
11 | Wire | 100% copper |
12 | Protection Class | IP44/IP54 |
13 | Cooling Method | IC411,IC416,IC0041,IC01,IC611,ICW81A |
14 | Duty: | S1 (continuous) |
15 | Certification | ISO, SABS, CE |
16 | Protect Feature | Totally Enclosed |
17 | AC Voltage | 6000V, 10000V or on request |
18 | Ambient temperature | -15℃≤0≤40℃ |
19 | Altitude: | Not exceed 1000m |
20 | Mounting Type | B3 Etc |
21 | Standard | Confirm to IEC international standard |
22 | Installation | we will send detailed instructions together with the Motors |
23 | Packaging Details | Packed with export requirement protect the motors and convenient for transport. |
24 | Delivery Details | 25-30 Days |
