ET-SGM12C 3V 5V Micro DC Gear Box Lock Motor 6 Volt dc Motor

 Notice: The above specification is just for reference. The gear motor's gear, shaft, speed, ratio, torque                       and motor type can be customized.

                If you can't find the right motor or feel confused, please contact me. Our engineers will help                           you and evaluate the suitable motor for you.

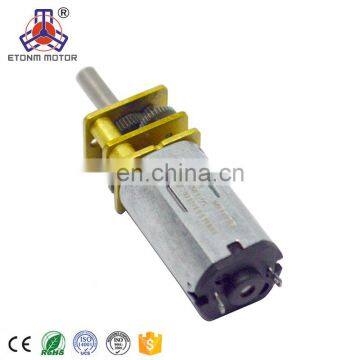

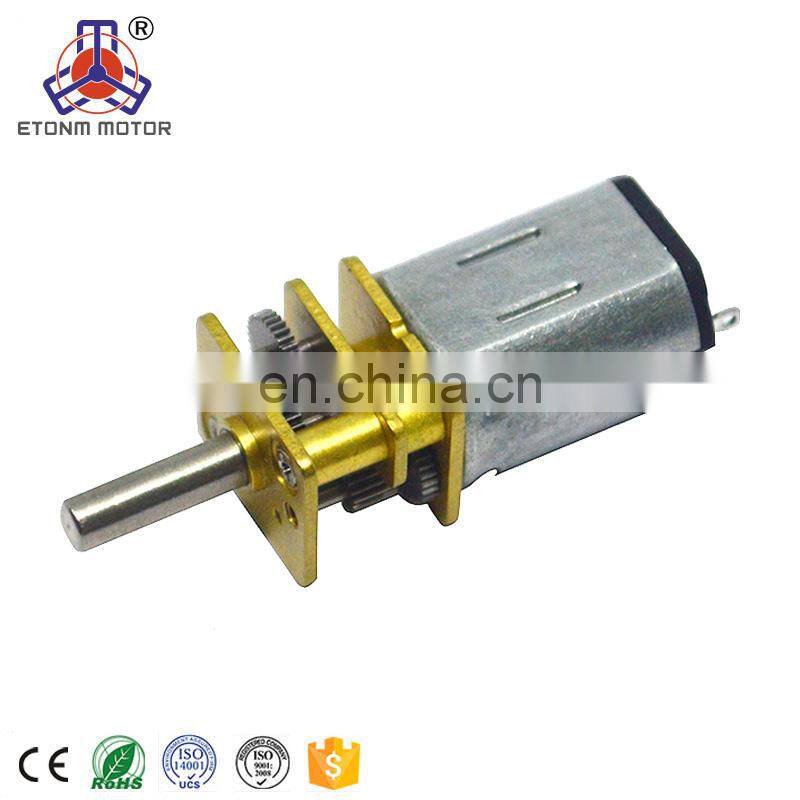

Item Name: N20 DC motor with gearbox

Model Number:  ET-SGM12C

         Etonm Motor is an ISO9001:2008 company, Professionally in R&D and manufacturing Micro DC Motor and Gear Motor. We started our business since 2004, now we have two factories, one is for Mini DC Motor, the other is for Gearbox. With 13 years experience, we have the perfect team, excellent engineers and modernized production line.

          There are 5 series gear motor and 1 series encoder, over 100 types. They are Round Spur Gear Motor, Right Angle Gear Motor, Planetary Gear Motor, Flat Spur Gear Motor, Micro DC Motor and Magnet Encoder. In each series motor, we all have our own strong type.

         ET-WGM58A is very popular used on CNC machine. ET-CGM95C, ET-SGM27A, ET-WGM58C are popular for valve. ET-SGM51B is our another strong product. ET-PGM36, ET-PGM32, ET-PGM28A and ET-PGM28B have a excellent performent, because they are planetary gear motor.

         For round spur gear motor, ET-SGM12C is used on various industry this year. ET-SGM25A, ET-SGM37A, ET-SGM37D2, ET-SGM37E and ET-SGM37F, because their low price and good performance, many clients buy these type motors. ET-CGM95-A has big torque and high rpm, so lots of customers choose this type motor.

         These motors are used on various industries. Home Appliance, Office Equipments, Vending Machine and Bank Equipment, Robotics and Electric Valve, Safe and Security, Sanitary Dispenser. 80% gear motors are exported.

Packing Details  : plastic film bags, foam, carton packing.

Delivery Details : 10-45 days after payment.
