Home > Products > Spur Gear Motor > Electric DC Motor 12V 50W

Electric DC Motor 12V 50W

Name: Electric DC Motor 12V 50W
Brand: ETONM
Availability: InStock

FOB Price

US$ 2.88 - 4.05 / Piece

2 Pieces(Min. Order)

Port shenzhen an dhk
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ETONM		Place of Origin	Guangdong, China
Model Number	ET-SGM12

Product Description

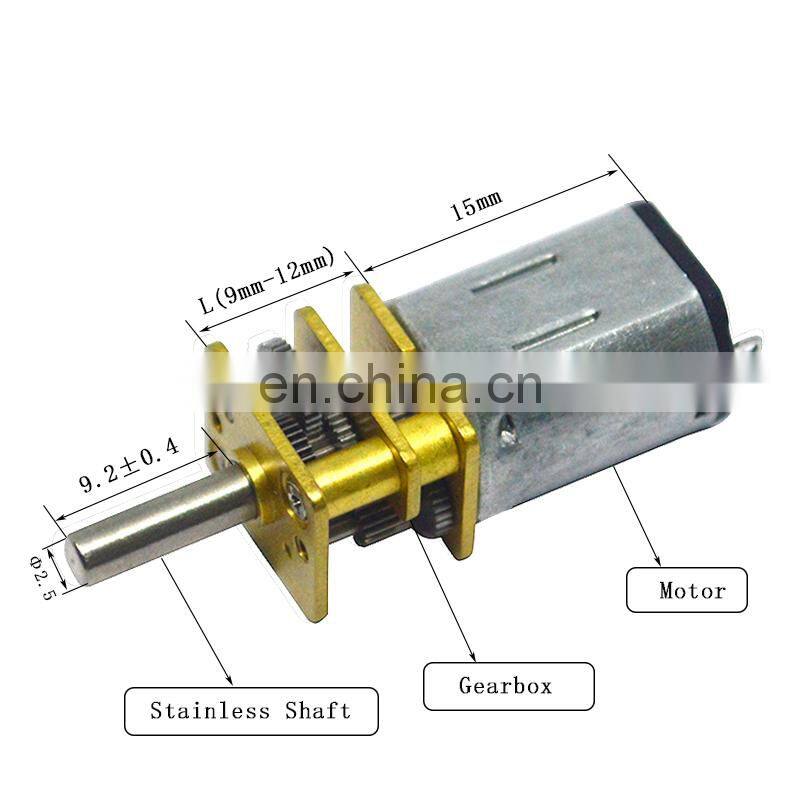

Products Show

Product Parameters

MODEL	VOLTAGE		NO LOAD		AT RATED LOAD
	operation range	nominal	speed	current	speed	current	torque
	operation range	nominal	r/min	A	r/min	A	kgf.cm
ET-SGM12C-1.507	0.8-3.0	1.5	7	≤0.03	4.8	≤0.07	0.40
ET-SGM12C-1.515	0.8-3.0	1.5	15	≤0.03	10	≤0.11	0.18
ET-SGM12C-0330	1.5-5.0	3.0	30	≤0.04	22	≤0.15	0.36
ET-SGM12C-4.545	1.5-6.0	4.5	45	≤0.04	36	≤0.12	0.52
ET-SGM12C-0550	1.5-7.2	5.0	50	≤0.03	40	≤0.21	0.62
ET-SGM12C-0515K	1.5-7.2	5.0	1500	≤0.05	1350	≤0.21	0.03
ET-SGM12C-05750	1.5-7.2	5.0	750	≤0.05	675	≤0.21	0.05
ET-SGM12C-05500	1.5-7.2	5.0	500	≤0.05	405	≤0.21	0.08
ET-SGM12C-05300	1.5-7.2	5.0	300	≤0.05	240	≤0.21	0.13
ET-SGM12C-05150	1.5-7.2	5.0	150	≤0.05	109	≤0.21	0.23
ET-SGM12C-05100	1.5-7.2	5.0	100	≤0.05	72	≤0.21	0.34
ET-SGM12C-0660	1.5-9.0	6.0	60	≤0.04	44	≤0.25	0.71
ET-SGM12C-0696	1.5-9.0	6.0	96	≤0.12	89	≤0.20	0.40

Product Applications

Why choose us

The reason why choose us?.

1. We can provide OEM / ODM services for all types of customers. Our technical team will provide online services to our customers.

2. We provide 100% guarantee for the product. Quality is the most important Each product must be tested for life and noise and checked by a quality inspector and a sales representative prior to shipment.

3.Production capacity

ETONM MOTOR has Two Factories, one for DC Motor, the other for Gearbox.
Unit now we have a production capacity of:
DC Motor 40,000pcs/day
Gear Motor 8,000pcs/day

Continuously apply more and more automatic machines and equipments, we are expecting till end of 2018 have a prodution capacity of:
DC Motor 45,000pcs/day
Gear Motor 15,000pcs/day

4.One-stop purchase
ETONM MOTOR offers DC Gear Motors,DC Motors,Brushless Motor, Encoders. Here you can find motors 1-24VDC, diameter 8mm to 50mm, to rque 0.1kg.cm to 500kg.cm. Beside, ODM, OEM and Cutomizations offered.

We are a factory that offers our customers the most competitive price.

Our Company

Factory

Workshop

Warehouse

Team

Quality control

Undergoing a series of 100% on-site inspection to the rotor, stator, commutator, endplay and performance plus operator's self-checking and QC first and shift inspection

1. Rotor Resistance testing

2. Rotor waveform Testing

3. commutator Inspection

4. Appearance Inspection

5. End play checking

6. Motor performance Inspection

Certifications
