Home > Electrical & Electronics > Electric Motor > Stepper Motor > ET-SGM12A 12mm 3v dc Motor High Rpm 3v Spur Gear Motor 3 Volt dc Micro Motor

ET-SGM12A 12mm 3v dc Motor High Rpm 3v Spur Gear Motor 3 Volt dc Micro Motor

Shenzhen Etonm Motor Co., Limited
ET-SGM12A 12mm 3v dc Motor High Rpm 3v Spur Gear Motor 3 Volt dc Micro Motor thumbnail-1
ET-SGM12A 12mm 3v dc Motor High Rpm 3v Spur Gear Motor 3 Volt dc Micro Motor thumbnail-2
ET-SGM12A 12mm 3v dc Motor High Rpm 3v Spur Gear Motor 3 Volt dc Micro Motor thumbnail-3
ET-SGM12A 12mm 3v dc Motor High Rpm 3v Spur Gear Motor 3 Volt dc Micro Motor thumbnail-4
ET-SGM12A 12mm 3v dc Motor High Rpm 3v Spur Gear Motor 3 Volt dc Micro Motor thumbnail-5
ET-SGM12A 12mm 3v dc Motor High Rpm 3v Spur Gear Motor 3 Volt dc Micro Motor thumbnail-6
ET-SGM12A 12mm 3v dc Motor High Rpm 3v Spur Gear Motor 3 Volt dc Micro Motor photo-1
ET-SGM12A 12mm 3v dc Motor High Rpm 3v Spur Gear Motor 3 Volt dc Micro Motor photo-2
ET-SGM12A 12mm 3v dc Motor High Rpm 3v Spur Gear Motor 3 Volt dc Micro Motor photo-3
ET-SGM12A 12mm 3v dc Motor High Rpm 3v Spur Gear Motor 3 Volt dc Micro Motor photo-4
ET-SGM12A 12mm 3v dc Motor High Rpm 3v Spur Gear Motor 3 Volt dc Micro Motor photo-5
ET-SGM12A 12mm 3v dc Motor High Rpm 3v Spur Gear Motor 3 Volt dc Micro Motor photo-6
US$ 2.35 - 6.32 MOQ: 3000 Pieces
Key Specifications
Get Latest Price
Brand Name:
ETONM
Place of Origin:
Guangdong, China
Model Number:
ET-SGM12-A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen and HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ETONM
Place of Origin Guangdong, China
Model Number ET-SGM12-A
Product Descriptions

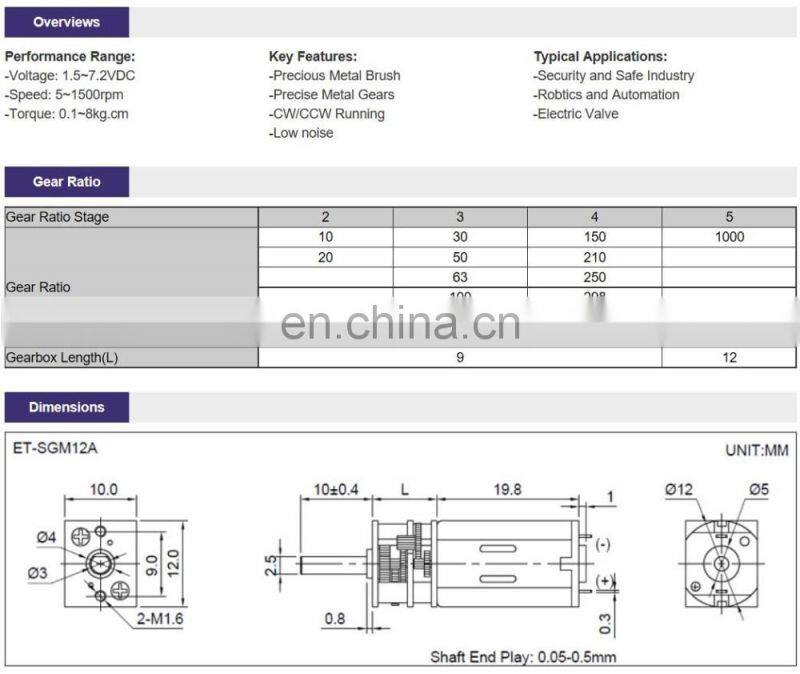

                                                          ET-SGM12A Micro spur gear motor
Model
ET-SGM12A
Motor Voltage(VDC)
1.5V-3V
Gearbox ratio
10, 20, 30, 50, 100, 150, 210, 250, 298, 380, 625, 1000 or Custom
Gearmotor no load speed(rpm)
8rpm - 790rpm, or Custom
Gearmotor rated load speed(rpm)
5rpm - 695rpm or Custom
Gearmotor rated load torque(kgf.cm)
0.05-6kgf.cm
Gearmotor rated current(A)
<0.04A
Gearmotor no load current(A)
<0.10A
Housing material
Stainless Steel
Bearing at output shaft
ball-bearing or  oil-retaining bearing
Certificate
CE,ROHS,ISO
Shaft Shape
D-shape or O- shape
Encoder
3PPR, 7PPR, 12PPR
Gear type
Spur gear, or worm gear, or planet construction
Product Parameters


MODEL
VOLTAGE
NO LOAD
AT RATED LOAD

operation range

nominal
speed
current
speed
current
torque
r/min
A
r/min
A
kgf.cm
ET-SGM12A-03790
1.5-6.0
3VDC
790
< =0.04
695
<=0.10
0.02
ET-SGM12A-03395
 1.5-6.0
3VDC
395
< =0.04
346
<=0.10
 0.04
 ET-SGM12A-03263
 1.5-6.0
3VDC
263
 < =0.04
219
<=0.10
0.06
ET-SGM12A-03158
 1.5-6.0
3VDC
158
 < =0.04
131
<=0.10
0.10
ET-SGM12A-03125
1.5-6.0
3VDC
125
 < =0.04
 99
<=0.10
0.13
ET-SGM12A-0379
 1.5-6.0
3VDC
79
 < =0.04
61
<=0.10
0.19
ET-SGM12A-0353
 1.5-6.0
3VDC
53
 < =0.04
40
<=0.10
0.29
ET-SGM12A-0338
 1.5-6.0
3VDC
 38
 < =0.04
29
<=0.10
0.40
ET-SGM12A-0332
 1.5-6.0
3VDC
32
 < =0.04
23
<=0.10
0.47
ET-SGM12A-0327
 1.5-6.0
3VDC
27
 < =0.04
19
<=0.10
0.54
ET-SGM12A-0323
1.5-6.0
3VDC
23
 < =0.04
16
<=0.10
0.60
ET-SGM12A-0321
1.5-6.0
3VDC
21
< =0.04
14
<=0.10
0.66
ET-SGM12A-0308
1.5-6.0
3VDC
8
< =0.04
5
<=0.10
1.70
Products Show

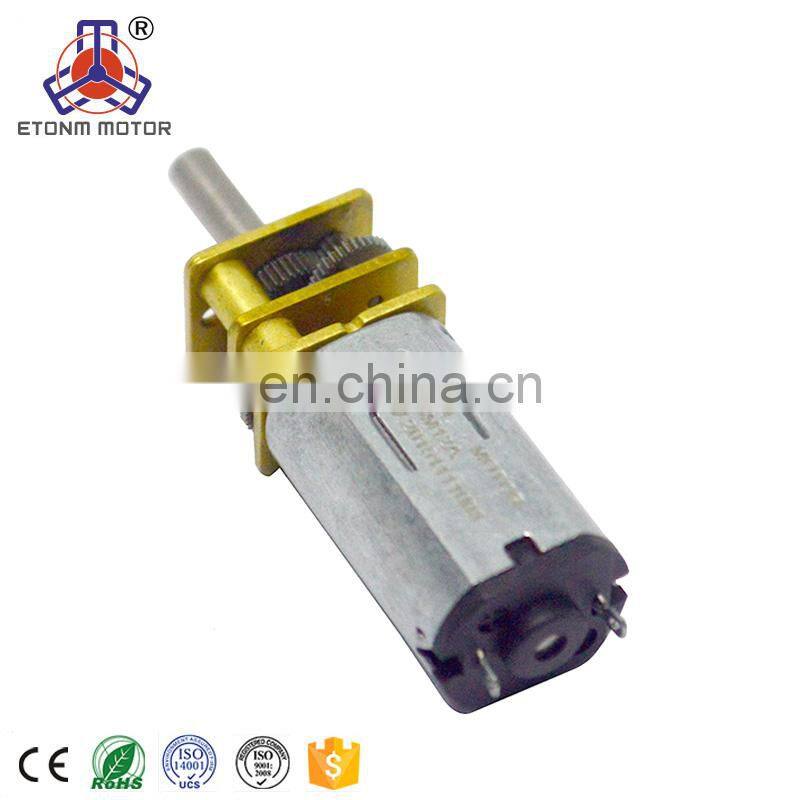

Item Name:   Micro DC spur gear motor

Model Number:  ET-SGM12A

More Products

ET-PGM36

Planetary gearbox motor

ET-SGM51-B

Round gear motor

ET-WGM58A

Worm Gearbox Motor

ET-CGM95C

Flat gearbox motor

ET-SGM12C

Spur gear motor

ET-SGM37A

Spur gear box motor
