Customized dc Electric Brush Reduction dc Gear Worm Motor 12v

ET-WGM58A=== customized dc electric brush reduction dc gear worm motor 12v

Voltage: 6~24VDC
-Speed:1~100rpm
-Torque: 1~70kg.cm

WGM58A(58x40mm) 6-24V 0.8-120rpm 70kg.cm Electric Blinds, Electric Curtain
Very Quiet motor; Small Backlash; small Inertia High Staic Torque(Stand Still Torque)

Right Angle Gear Motor: Right Angle gear motor is also called Worm Gear motor, 90°Gearbox motor, it is a DC motor with Right Angle Gearbox, the gearbox output direction is 90°(Right Angle) with DC motor input. This kind of gearbox is designed change the motor’s output direction, so as to fit some special space requirements.

The biggest advantages:
1. very low noise
2. changed output direction
3. very low inertia
4. very small backlash
5. High Static torque(stand still torque), means cannot turn the shaft by hand or lever.

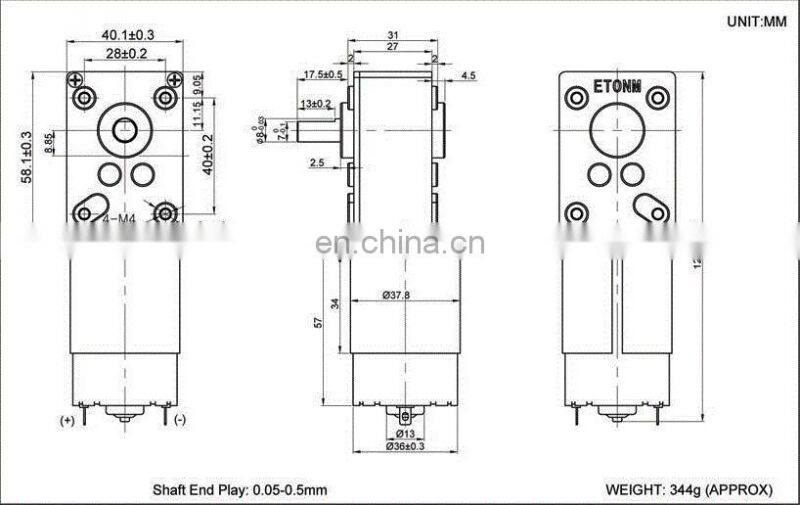

Motor Drawing:
