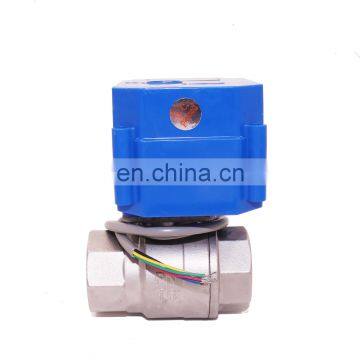

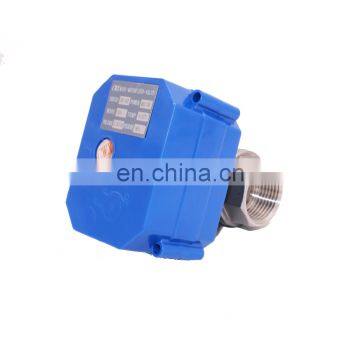

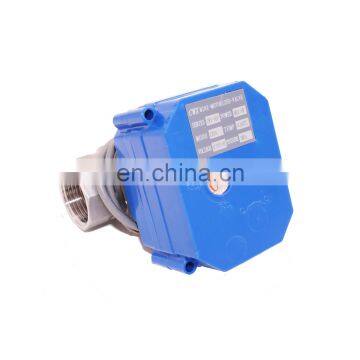

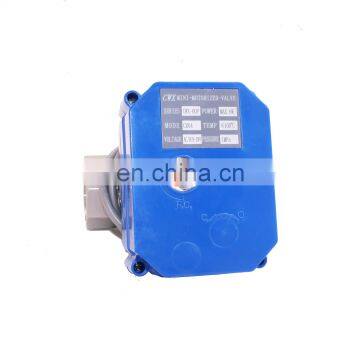

2-way motorized ball valve electric actuator 1" BSP/NPT DC/AC12V DC/AC24V for Irrigation equipment,drinking water equipment
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
6N.M super mini 3-way "L"-port AC/DC9-24V electric motor valve for Air vacuuming system
-
CWX-60P 4nm CR01 CR02 CR03 5V 9V 12V 24V 220V brass 1/2" dn32 motorized valve
-
5v 12v 220v DN15 DN32 brass cwx-60p 6nm motorised ball valve for water
-
CR01 CR02 12V 24V DN15 DN20 UPVC CWX-60P plastic motorized ball valve
-
brass digital thermostatic valve
-
dn15 dn20 dn32 110v 5v 12v 24v 220v CTF-001with manual operation SS304 stainless steel dn 50 2" motorised motorized ball valve
Product Details
Brand Name | CWX | Place of Origin | Tianjin, China | |
Model Number | CWX60P | |||
Application | General | Structure | Ball | |
Standard or Nonstandard | Standard | Pressure | Medium Pressure | |
Port Size | 1/2",3/4",1" | |||
Temperature of Media | Medium Temperature |
Product Description
1,Metal gearbox and metal gear design, low noise, perform reliably
2,Long service life: more than 100000 circles
3,Electric limit and machinery limit design, located accurately, avoid gear run
continuously.
4,Multi-angle assembling, easy to install
5,Float ball structure, no leakage,especially suitable for heavy pollution conditions.
1. IC card smart water meter, heat meter
2. HVAC and fan coil, fire sprinkler, etc.
3. Universities water, automatic control systems, industrial automation and other small devices
4. Environmental protection, water supply and drainage, water treatment
5. Replace the solenoid valve where can not working
6. The water-saving appliances, equipment and other drinking water
Product model | Rated voltage | Working current | Output torque | Open/close time | Control mode |
CWX-60P | DC3-6V DC12V | Max100mA (CR04 except Max150mA) | Max6NM | <8s | CR01 CR02 CR02+ CR03 CR03A CR03T CR04 CR05 CR06 |
Working pressure | Power | Medium temperature | Size | IP Garde | Special function |
Max1.0Mpa | <5W | 0-90℃ | DN8-32 Two-way DN8-25 Three-way | IP65 | CR01 CR02 CR02+ CR03 CR03A CR04(with singal feedback) |
Brass | Connection | Sizes | d | L | H |
Both female thread Full-port | DN8 | 8 | 46 | 31 | |
DN15 | 15 | 57 | 38 | ||
DN20 | 20 | 71 | 45 | ||
DN25 | 23.5 | 72 | 49 | ||
Both feamle thread Reduce-port | DN10 | 8 | 46 | 31 | |
DN15 | 10 | 66 | 38 | ||
DN20 | 15 | 72 | 47 | ||
DN32 | 25 | 86 | 60 | ||
Vertical Three-way | DN15 | 12 | 63 | 49 | |
DN20 | 15 | 66 | 53 | ||
Female-male thread | DN15 | 15 | 63 | 38 | |
DN20 | 15 | 66 | 38 | ||
DN25 | 15 | 81 | 44 | ||
DN32 | 20 | 76 | 50 | ||
Both male thread | DN15 | 15 | 68 | 38 | |
CPVC | Both female thread | DN15 | 15 | 60 | 47 |
DN20 | 20 | 72 | 51 | ||
SS304/316 | Both female thread | DN8 | 8 | 46 | 31 |
DN10 | 8 | 46 | 30.5 | ||
DN15 | 15 | 55 | 38 | ||
DN20 | 15 | 63 | 39 | ||
DN20 | 20 | 71 | 45 | ||
DN25 | 20 | 75 | 47 | ||
DN25 | 25 | 72 | 49 | ||
Horizontal Three-way (Brass) | Sizes | d | L1 | L2 | H |
DN8 | 6 | 52.6 | 39 | 24.5 | |
DN10 | 12 | 72 | 55 | 39 | |
DN20 | 15 | 86 | 63.5 | 44 | |
DN25 | 15 | 97 | 68.5 | 43.5 |
Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve
and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed theISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regionsworldwide.
Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing,
we are confident inproviding you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice.
1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.
2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.
5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
