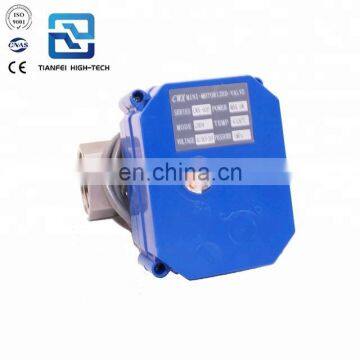

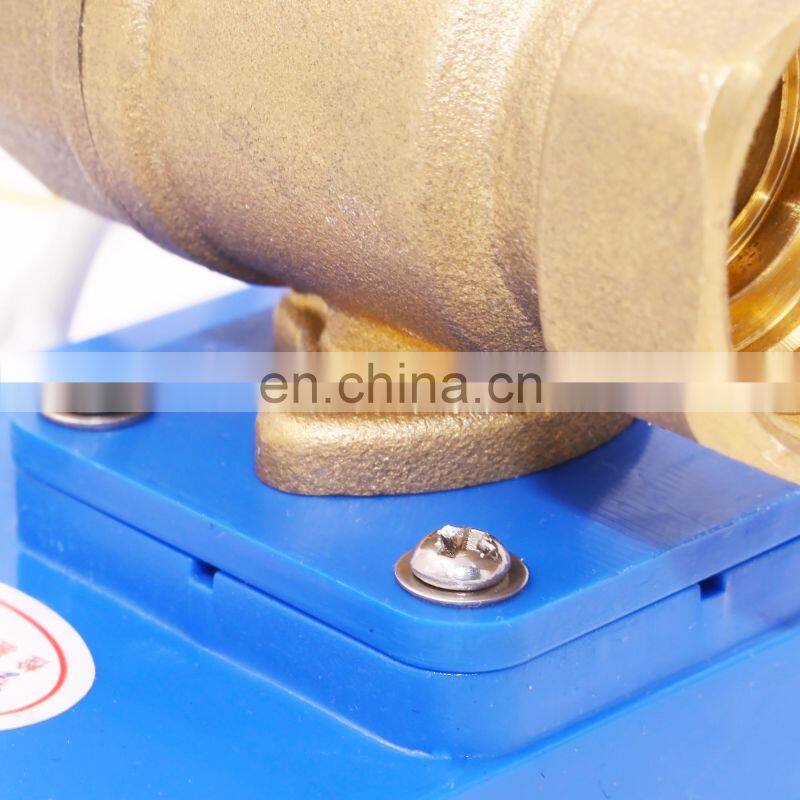

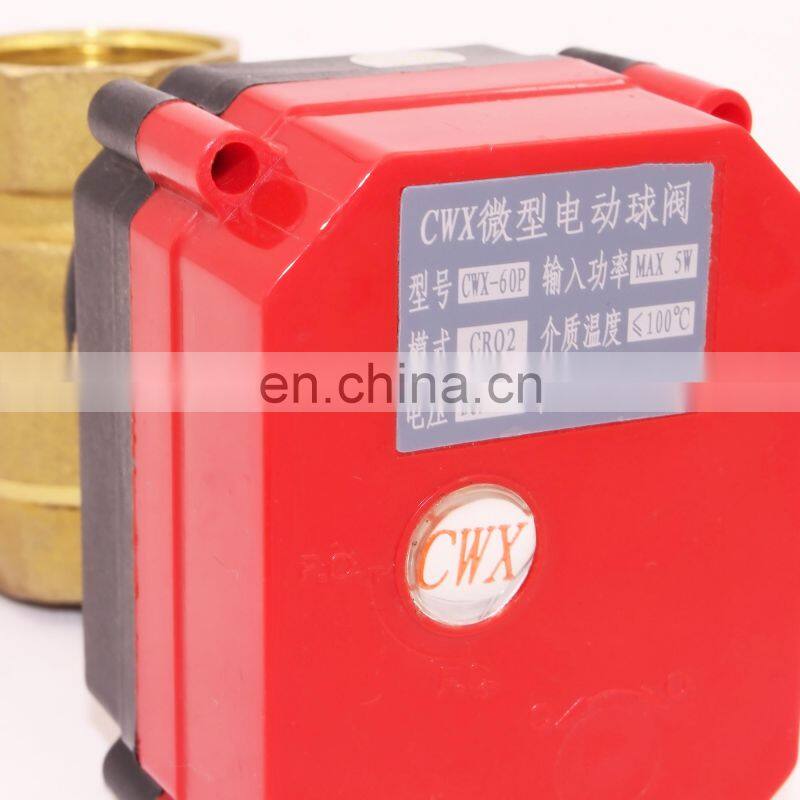

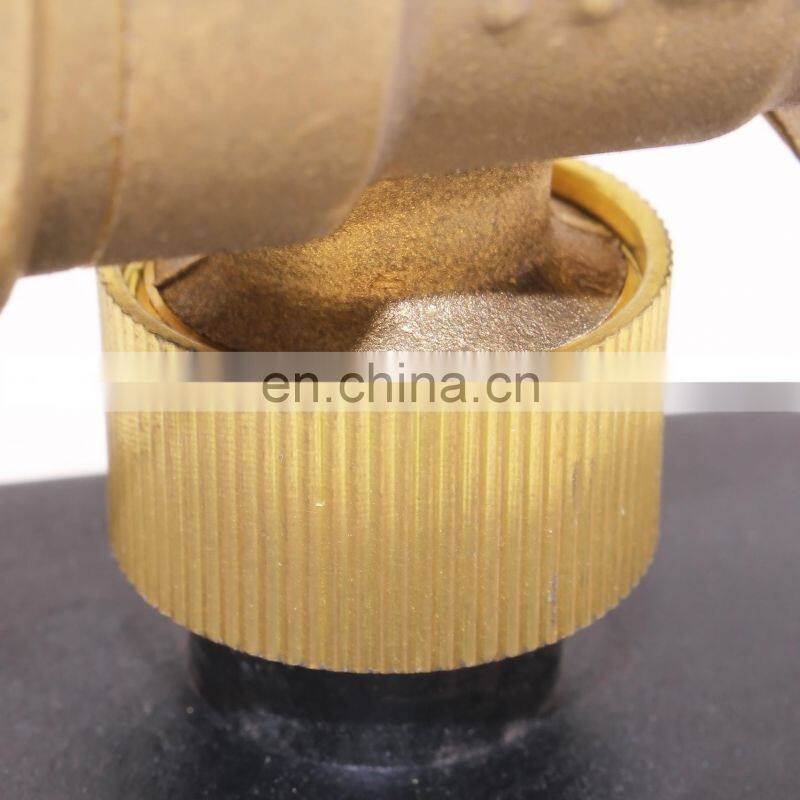

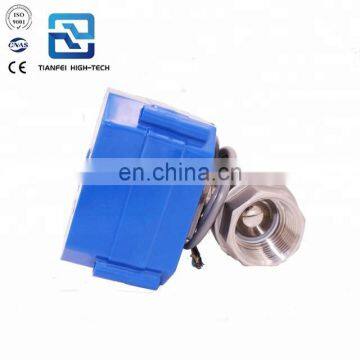

Tianfei CWX60 Large Output Torque Electric Valve Motorized Ball Valve
| Product model | Rated voltage | Working current | Output torque | Open/close time | Control mode | Working pressure | Power | Medium temperature | Size | IP Garde | Special function |
| CWX-60P | DC3-6V DC12V AC/DC9-24V AC220V AC85-265V | Max100mA(CR04 except Max150mA) | Max6NM | <8s | CR01 CR02 CR02+ CR03 CR03A CR03T CR04 CR05 CR06 | Max1.0Mpa | <5W | 0-90℃ | DN8-32 Two-way DN8-25 Three-way | IP65 | CR01 CR02 CR02+ CR03 CR03A CR04(with singal feedback) |
| Brass | Connection | Sizes | d | L | H |
| Both female thread Full-port | DN8 | 8 | 46 | 31 | |
| DN15 | 15 | 57 | 38 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 23.5 | 72 | 49 | ||
| Both feamle thread Reduce-port | DN10 | 8 | 46 | 31 | |
| DN20 | 15 | 66 | 38 | ||
| DN25 | 20 | 72 | 47 | ||
| DN32 | 25 | 86 | 60 | ||
| Vertical Three-way | DN15 | 12 | 63 | 49 | |
| DN20 | 15 | 66 | 53 | ||
| Female-male thread | DN15 | 15 | 63 | 38 | |
| DN20 | 15 | 66 | 38 | ||
| DN25 | 15 | 81 | 44 | ||
| DN32 | 20 | 76 | 50 | ||
| Both male thread | DN15 | 15 | 68 | 38 | |
| CPVC | Both female thread | DN15 | 15 | 60 | 47 |
| DN20 | 20 | 72 | 51 | ||
| SS304/316 | Both female thread | DN8 | 8 | 46 | 31 |
| DN10 | 8 | 46 | 30.5 | ||
| DN15 | 15 | 55 | 38 | ||
| DN20 | 15 | 63 | 39 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 20 | 75 | 47 | ||
| DN25 | 25 | 72 | 49 | ||
| Horizontal Three-way (Brass) | Sizes | d | L1 | L2 | H |
| DN8 | 6 | 52.6 | 39 | 24.5 | |
| DN15 | 12 | 72 | 55 | 39 | |
| DN20 | 15 | 86 | 63.5 | 44 | |
| DN25 | 15 | 97 | 68.5 | 43.5 |
--- Transport requirement
Ensure that the packaging of the equipment meets the requirements of the contract, the logo is clear and unmistakable, and the goods are safety delivered to the site in time.
--- High quality and fast transportation service
To better ensure the normal operation of the valve, answer user questions raised in time, to help users solve the problem, the company sales department and after-sales department have a telephone, is responsible for the valve technology consulting services. The after-sales center is responsible for providing technical consulting services to customers free of charge. Company maintenance center has 8 hours of telephone service,and there is a corresponding professional staff to handle users' communication, so as to ensure timely technical support in the process of using the equipment .Telephone: 022-85685296, (+86) 18920779351.
--- The quality assurance period
Warranty period: the warranty period under the contract is 12 months after the successful installation and commissioning. Warranty period (except natural disasters and man-made damage) parts, components cost,free maintenance of the supplier.
--- Requirements and Suggestions
As user of Tianjin Tianfei High-Tech Valve Co., LTD., we thank you for your trust to our
company, if you have any suggestions about our products and requirements pls inform us in time, at the same time should be use according to the operating instructions and manual of all kinds of products of the company by the regular maintenance, valve malfunction should inform our company maintenancer to do timely found and timely treatment, and make the equipment operation station daily record, we believe that through the communication and cooperation, will maintain good equipment
1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.
2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.
5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
