Home > Products > CWX-15Q/N MINI ELECTRIC VALVE > 3-way DC12V 3/4" Stainless Steel T Flow Electric Ball Valve With Signal Feedback Function for Irrigation System

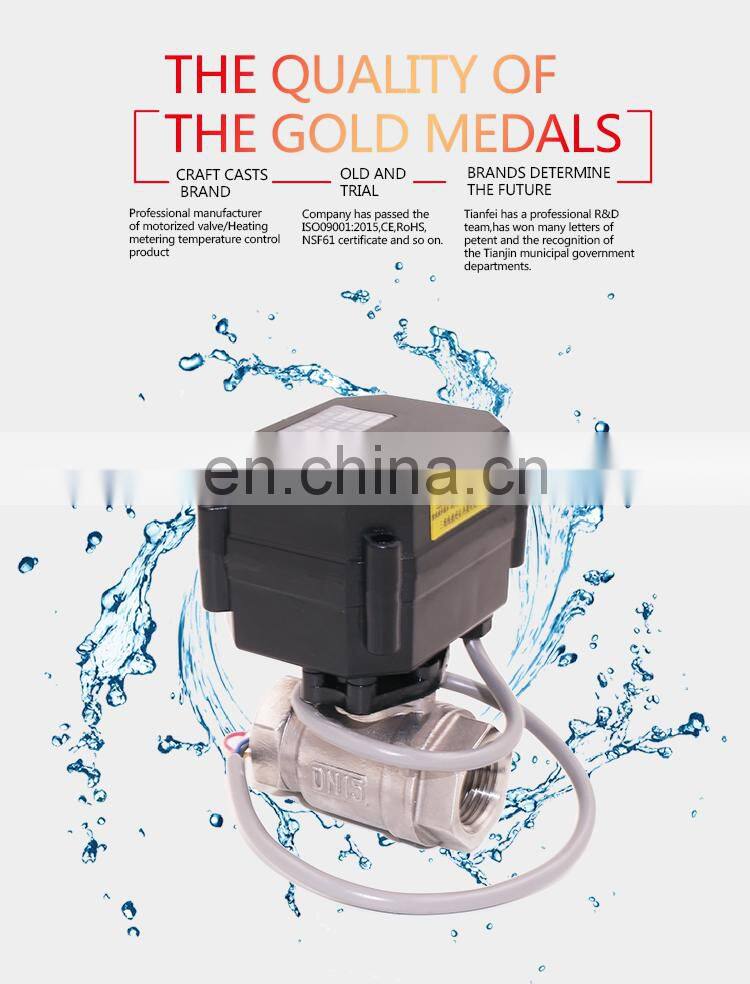

3-way DC12V 3/4" Stainless Steel T Flow Electric Ball Valve With Signal Feedback Function for Irrigation System
- Tianjin Port
- T/T Credit Card
You May Like
-
3-way T Flow DC12V 3/4" Brass Motor Driver Valve
-
CWX-15Q 3 Way 3/4" Solenoid Valve 12v 24v 220v Brass and Stainless Steel Material
-
1" Motor Electric Valve, 12VDC,24VDC Work Voltage With Brass BSP Thread Connection for Small Equipment for Automatic Control
-
CWX-15N SUS304 NSF61 Electric Actuated Ball Valve 1/2" Stainless Steel 12 VDC
-
1/2'' (15mm) Electric Three Way Valve With 3-6V,12V,24V Controlled for Solar Heating
-
Mini Electric Solenoid Water Valve CWX-15Q Motorized Ball Valve for Solar Water Heaters,washing Machines,water Heaters
Product Details
| Brand Name | CWX | Place of Origin | Tianjin, China | |
| Model Number | CWX-15Q | Material | Stainless Steel | |
| Application | General | Structure | Ball | |
| Standard or Nonstandard | Standard | Pressure | Medium Pressure | |
| Port Size | 3/4",DN20 | |||
| Media | Water | Temperature of Media | Medium Temperature |
Product Description
1,Metal gearbox and POM gear design, low noise, perform reliably .
2,Long service life: more than 100000 circles.
3,electric limit and machinery limit design, located accurately, avoid gear run continuously.
4,Mufti-angle assembling, easy to install.
5,Float ball structure, no leakage,especially suitable for heavy pollution conditions.
1.Heat energy meters, fire work, save water system.
2.Auto control system, industrial mini auto control equipment.
3.Water saving equipment, drinking water equipment.
4.Air-conditioning fan coin(HVAC).
| Product Model | Rated Voltage | Working current | Output Torque | Opening time | Caliber adapter |
| CWX-15Q | DC3-6V DC12V AC/DC9-24V AC220V AC85-265V | Max100mA (CR04 except Max150mA) | Max1.5NM | <3s | DN8-DN20 |
| CWX-15N | Max2.0NM | <5s | DN8-DN32 | ||
| Working pressure | Power | Medium temperature | Control Mode | IP Grade | Special function |
| Max1.0Mpa | <3W | 0-90℃ | CR01 CR02 CR02+ CR03 CR03A CR04 CR05 | IP65 | CR01 CR02 CR03 CR04(with singal feedback) |
Brass
| Connection-Way | Sizes | d | H | L |
Double-internal thread Full-Port | DN8 | 8 | 46 | 31 | |
| DN15 | 15 | 57 | 38 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 23.5 | 72 | 49 | ||
| Double-internal thread hole shrinkage | DN10 | 8 | 46 | 31 | |
| DN20 | 15 | 66 | 38 | ||
| DN25 | 20 | 72 | 47 | ||
| DN32 | 25 | 86 | 60 | ||
| Vertica Three-Way | DN15 | 12 | 63 | 49 | |
| DN20 | 15 | 66 | 53 | ||
| Iinternal and external Thread | DN15 | 15 | 63 | 38 | |
| DN20 | 15 | 66 | 38 | ||
| DN32 | 20 | 76 | 50 | ||
| Double-internal thread | DN15 | 15 | 68 | 38 | |
| SS304/316 | Double-internal thread | DN8 | 8 | 46 | 31 |
| DN10 | 8 | 46 | 30.5 | ||
| DN15 | 15 | 55 | 38 | ||
| DN20 | 15 | 63 | 39 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 20 | 75 | 47 | ||
| DN25 | 25 | 72 | 49 |
Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional
R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed the
ISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regions worldwide.
Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing, we are confident in providing you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice.
1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 year. So we have advantage in price. We also could do OEM.
2. What's the Payment Method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.
5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
