Home > Products > ductile iron valves > Ductile Iron BS5163 Sluice Gate Valve
Ductile Iron BS5163 Sluice Gate Valve
- qingdao
- T/T Credit Card
You May Like
Product Details
| Brand Name | VALVFIT | Place of Origin | Shandong, China | |
| Model Number | DN80-600 | Material | Casting | |
| Application | General | Structure | Gate | |
| Standard or Nonstandard | Standard | Pressure | Low Pressure | |
| Power | Hydraulic | Port Size | DN80-600 | |
| Media | Water | Temperature of Media | Low Temperature |
Product Description

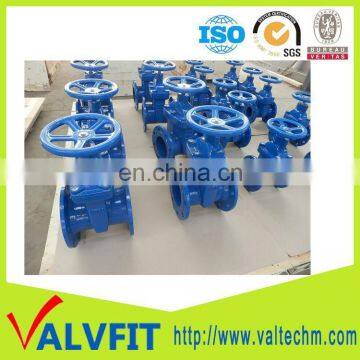

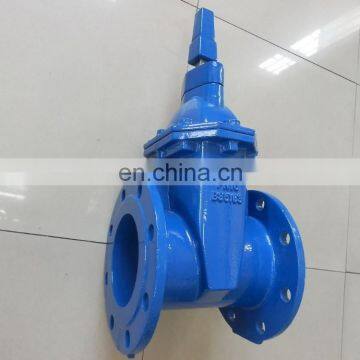

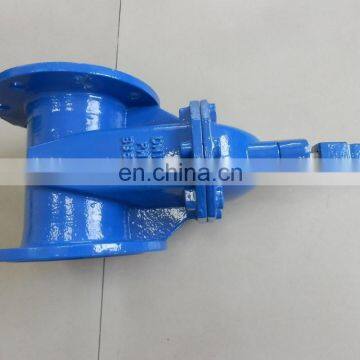

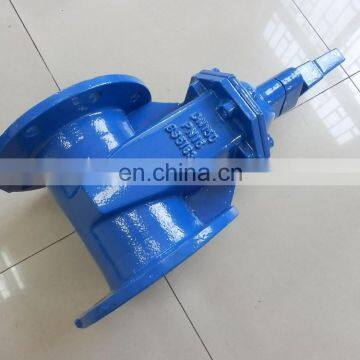

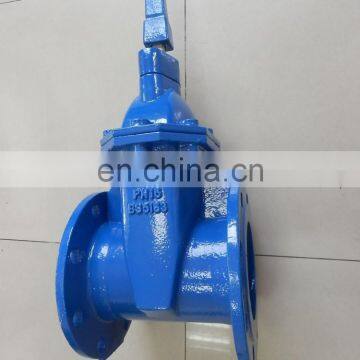

Ductile iron BS5163 Sluice gate valve
We manufacture ductile iron BS5163 resilient seated gate valve according to BS5163 or the requirements of customer.
DN | L | F | K | D | n | d |
50 | 178 | 99 | 125 | 165 | 4 | 19 |
80 | 203 | 132 | 160 | 200 | 8 | 19 |
100 | 229 | 156 | 180 | 220 | 8 | 19 |
150 | 267 | 211 | 240 | 285 | 8 | 23 |
200 | 292 | 266 | 295 | 340 | 12 | 23 |
250 | 330 | 319 | 355 | 400 | 12 | 28 |
300 | 356 | 370 | 410 | 455 | 12 | 28 |
1. Inspection:Foundry in-house; Third Party inspection available upon request
2.Packing: Wooden pallet ; Cases ; As customer ruqirement .
3.Delivery Date:40 days ; According to the quantity .
4.Payment: 30% by T/T in advance, the balance before Shipping . D/P ,L/C .
100% water test before delivery
2. can do third party inspection as requirement
QINGDAO VALTECH MANUFACTURING CO., LTD
We are a joint venture specializing in manufacturing and exporting Ductile Iron pipe fittings,
accessories and their joints for water supply pipeline. Being in the lines since 1992, we can assure you that our products are of good quality and reasonable price.
1.what is the material ?
It is ductile cast iron material
2. what can be used for ?
It is mainly used for water line
3.What is the MQQ
0.5 TON Or 10 pcs per size
