Home > Products > Brand Guide Rail > THK Linear Guide Rail SR 15V/20V/25V/30V/35V Linear Motion For CNC Machine
THK Linear Guide Rail SR 15V/20V/25V/30V/35V Linear Motion For CNC Machine
US$ 14.3 - 50
/ Set
1 Set(Min. Order)
- Guangzhou Qingdao etc
- T/T Credit Card
You May Like
-
Original Rexroth R165142320 Runner Block Bearings R 165142320 Linear Guide Bearing
-
Original THK Linear Motion SHS15V1UU Linear Guide SHS15V1UU Block
-
Rexroth Linear Bearing Runner Block R162442320 R 162442320
-
SR20TB THK Linear Motion Guide Rail Slide Block SR20TB1SS
-
SHS20C THK Linear Guide Slider Rails Linear Bearing
-
The First Agent Bearing SR20TB THK Linear Motion Guide Rail Slide Block SR20TB1SS
Product Details
| Brand Name | THK | Place of Origin | Japan | |
| Model Number | SHS 15C/20C/25C/30C/35C/45C |
Product Description
Products Description
THK Linear Guide Rail SR 15V/20V/25V/30V/35V Linear Motion For CNC Machine
LM Guide
Rails and Blocks are individually Stocked
for Easy/Fast Interchangeability
Rails and Blocks are individually Stocked
for Easy/Fast Interchangeability
LM Guide GK Series includes two radial clearance (preload).
The radial clearance greatly affects the running accuracy, load carrying capacity and rigidity of the LM Guide, it is important to select an appropriate radial clearance according to the application. An appropriate radial clearance reduces vibrations and impact generated during the operation of the device and favorably affects the service life and the accuracy of the LM Guide.
Product Name | THK Linear Guide Rail SR 15V/20V/25V/30V/35V Linear Motion For CNC Machine |
Material | Stainless Steel/chrome steel |
Quality | High-precision, high-rigidity, with long service lives. |
Feature | Energy-saving, high-speed |
Application | CNC machine, 3D Printer |
Brand Name | THK Linear Guide Rail |

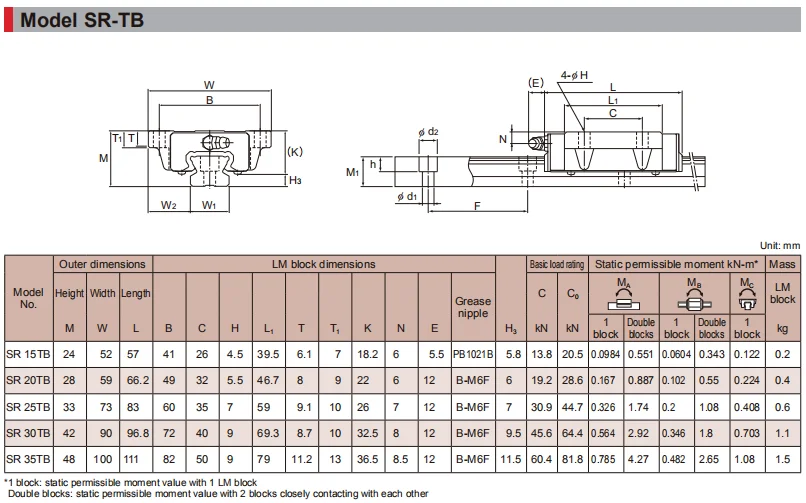

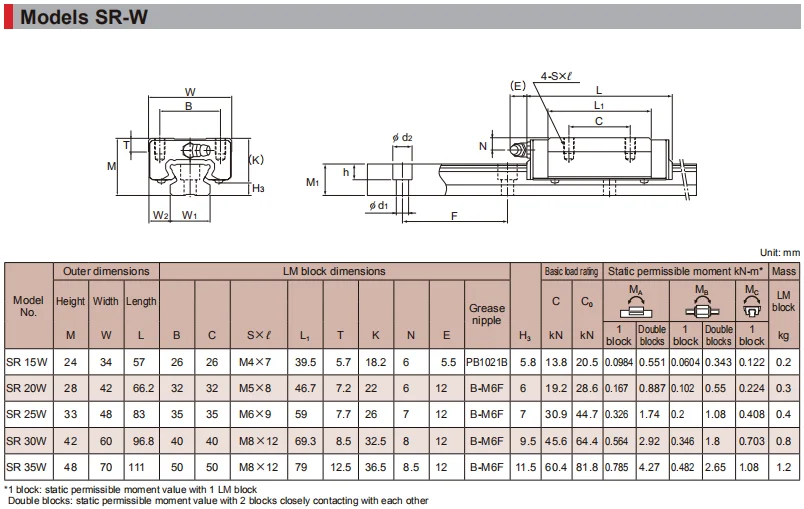

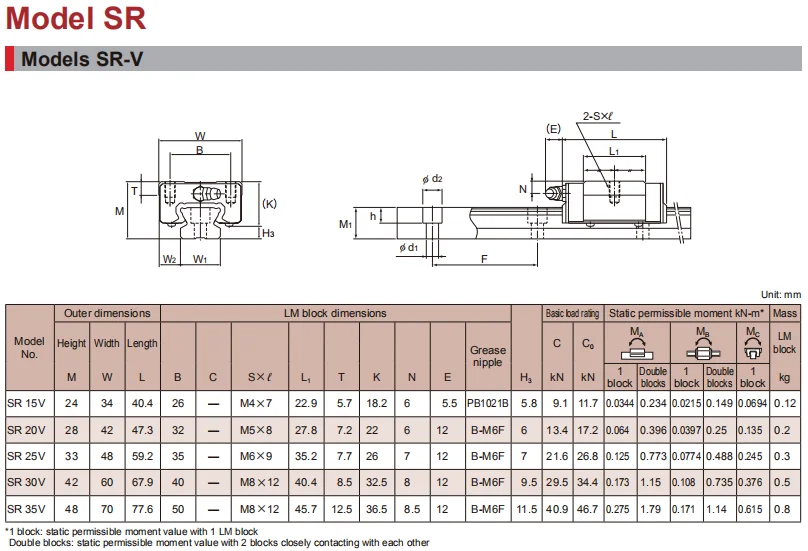

Block Series | THK SR-V, SR-TB, SR-W |
HS CODE | 8483300090 |
Photo Gallery
Technical Specifications
Packing & Delivery
Our package for products
1 . Industrial tube packing + cartons + pallets
2 . Individual colorful or white box + carton + pallets
3 . As per clients' requirements
1 . Industrial tube packing + cartons + pallets
2 . Individual colorful or white box + carton + pallets
3 . As per clients' requirements
Single product box
Cartons
Wooden pallets
Shipping Methods
1 . Less than 45 KGS ,we will send by express .( Door to Door , Convenient )
2 . 45 -200 KGS , we will send by air transport . ( Fastest and safest , but expensive )
3 . More than 200 KGS , we will send by sea . ( Cheapest and common use )
2 . 45 -200 KGS , we will send by air transport . ( Fastest and safest , but expensive )
3 . More than 200 KGS , we will send by sea . ( Cheapest and common use )
Our Warehouse
FAQ
Q: What kind of bearings do you supply?
We supply all specification of bearings: deep groove ball bearings ----tapered roller bearings----- cylindrical roller bearings spherical Roller Bearings, angular contact bearings, thrust roller bearings, thrust ball bearings, spherical
bearings, needle roller bearings, pillow block bearings, sliding guide bearings, wheel hub bearings and high-precision
low-noise high-speed operation of special bearings.
We also agent and supply all world famous brands of bearings: NTN, NSK, NACHI, KOYO, IKO, HIWIN, THK etc
bearings, needle roller bearings, pillow block bearings, sliding guide bearings, wheel hub bearings and high-precision
low-noise high-speed operation of special bearings.
We also agent and supply all world famous brands of bearings: NTN, NSK, NACHI, KOYO, IKO, HIWIN, THK etc
Q: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
quantity.
Q: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes, we provide samples, but need to pay the value of goods and freight
Q: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=1000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have other questions, pls feel free to contact us as below:
If you have other questions, pls feel free to contact us as below:
Q: HOW TO CONTACT YOU?
My whatsapp or wechat:+86 155 0861 9017. Or email me to: sales3@bearingkd.com
Is there any MOQ Required?
No, MOQ is 1 set. We know that sample order is always important to see the quality in the first cooperation.
