Home > Products > Other Bearings > CR24 Cam Follower Stud Type Track Roller Bearing
CR24 Cam Follower Stud Type Track Roller Bearing
- Shanghai or Ningbo or Shenzhen
- T/T Credit Card
You May Like
-
HF3520 One Way Needle Bearing 35x42x20mm
-
HK13.5X19X12 Drawn Cup Needle Roller Bearing 13.5x19x12 mm
-
HK24X30X7.5 TN Drawn Cup Needle Roller Bearing
-
NKS16 Solid Collar Needle Roller Bearing Without Inner Ring 16x28x16 mm
-
NE47170 Automotive Needle Roller Bearings 25.75x36.75x27.6 mm
-
BW-13167 One Way Clutch Bearings
Product Details
| Brand Name | HXHV or OEM | Place of Origin | Jiangsu, China | |
| Model Number | CR24 | Number of Row | Single Row | |
| Seals Type | Open | Precision Rating | P0 P6 P5 P4 P2 | |
| Bore Size | 15.875, 15.885 |
Product Description
Product Description
CR24 Cam Follower Stud Type Track Roller Bearing
|

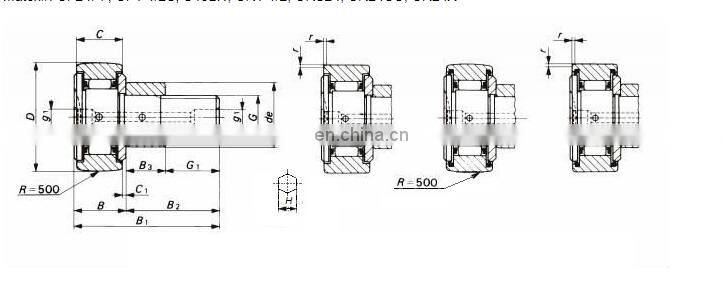

Boundary Dimensions in mm |
Mounting Dimension f Min. mm |
Max Tightening torque |
Basic Dynamic Load |
Basic Static Load |
|||||||||||||
| D | C | d1 | G UNF |
G1 | B | B1 | B2 | B3 | C1 | g1 | g2 | H | rs min | ||||
| 1-1/2 | 7/8 | 5/8 | 5/8-18 | 3/4 | 0.93 | 1-1/2 | 3/8 | 1/32 | 3/16 | 5/32 | 1/16 | 1-3/4 | 55.7 | 18600 | 24300 | ||
Cam Followers are studded bearings with needle bearings/Rollers inside a thick outer ring. They are available in caged, full compliment needles and Full compliment rollers variations and have either a Crowned or Cylindrical outer diameter. They can support high radial and axial loads arising from misalignment and skewed running and are suitable for cam drives, slide-ways, conveying equipment etc. The bearings are available in several designs and with or without an eccentric.
Our Company
Contact Info
Wuxi HXH Bearing Co.,Ltd
Tina Tang
Email & Skype: tina.tang(at)
Mobile & WhatsApp & Telegram & Wechat: 0086 189 2153 2897
QQ:2397548557
Warm Suggestions
1.About payment: We could start business with 30% T/T in advance and L/C . So we could give each other believeable and confidence for the first time . 2.After-sale Service: we are always for here to help you when there is something wrong with bearings based on our more than 15 years experience work team. Give back the solutions as soon as possible.
Packing & Delivery
Packing:
1. Industrial packaging: plastic bag + kraft paper + carton or wooden ; plastic tube + carton
2. Commercial packing: 1pc/plastic bag + color box + carton
3. According to customs' requirements
Shipping:
1).For a small order,we can send you by UPS,DHL,FEDEX,TNTOR EMS. Thracking number will be advised after delivery.
2).If order is big,we will advise deliver by sea or air.
3).The balance payment should be paid before delivery.
4). In generally,we delivery the goods within 5 days.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your advantages?
A: 1. Manufacturer,the most competive price and good quality.
2. Perfect group of technical engineers give you the best support.
3.Well-trained group of international sales provide the best service.
4.OEM brand aviliable.
5.Rich stock and quick delivery. CR24 Cam Follower Stud Type Track Roller Bearing CR24 Cam Follower Stud Type Track Roller Bearing CR24 Cam Follower Stud Type Track Roller Bearing
