ASXN00439-07 Clusters for Schneider HVX Vacuum Circuit Breaker

Name: ASXN00439-07 Clusters for Schneider HVX Vacuum Circuit Breaker
Brand: Schneider
Availability: InStock

FOB Price

US$ 60 - 500 / Piece

10 Pieces(Min. Order)

Port Shenzhen/Hongkong
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Schneider		Place of Origin	China
Model Number	ASXN00439-07

Product Description

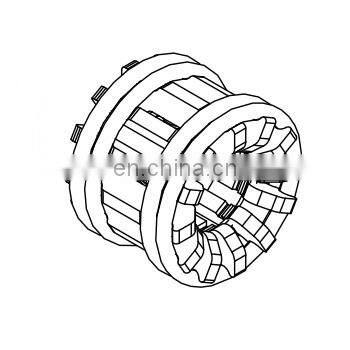

ASXN00439-07 Clusters for Schneider HVX Vacuum Circuit Breaker

Clusters

The shape of HVX contacts is tulip-type. The size depends on the rated current to provide a maximum contact surface optimizing heat dissipation and offering good compensation characteristics for electrodynamic forces. The panel builder needs to provide fixed-type contacts with the correct shape, tolerance, and material characteristics compatible with the HVX tulip-type contacts.

Charateristics

Clusters					Part No.
HVX voltage(kV)	12	17.5	24
	√	√	√	Ir = 630 A, Isc ≤ 31.5 kA	AVXN00372-01
	√	√	√	Ir = 630 A, Isc = 31.5 kA or Ir=1,250 A , Isc ≤ 31.5 kA	ASXN00439-07
	√	√		lr ≤ 1,250 A, lsc = 40 kA or lr = 1600/2000 A, lsc ≤ 40 kA	ASXN00439-02
	√	√		lr = 1250/1600/2000 A, lsc = 50 kA	ASXN00439-03
	√	√		Ir = 2,500/3,150/4,000 A, Isc ≤ 40 kA	ASXN00439-04
	√	√		Ir = 2,500/3,150/4,000 A, Isc = 50 kA	ASXN00439-05
			√	Ir = 1,600/2,000/2,500 A, Isc ≤ 31.5 kA	ASXN00439-02

Packing & Shipping:

Payment methods:

Samples order: Paypal or Western Union

Main order: T/T

Delivery time:

Small orders: 5-7 working days

Bulk orders:15-30 working days
