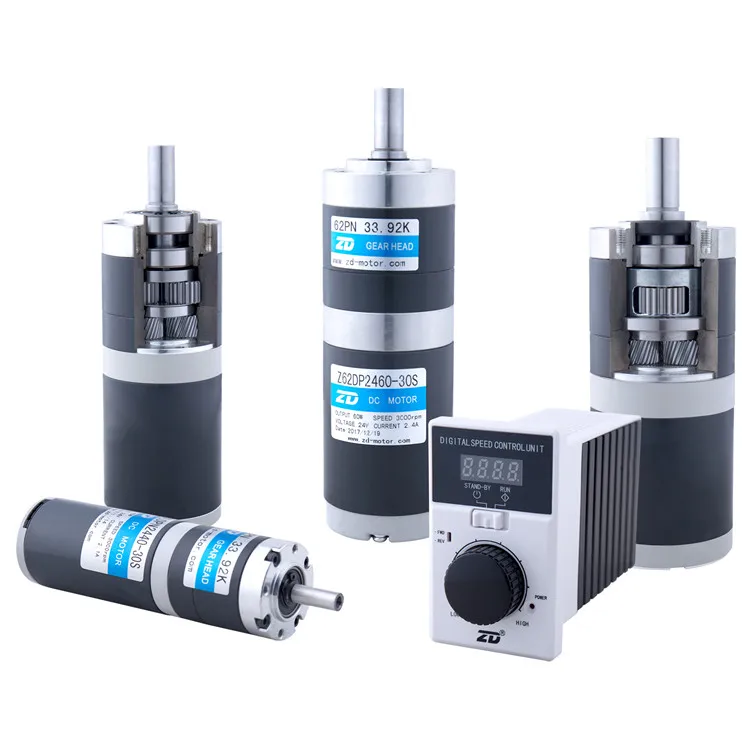

DC Motor Planetary Gearbox,dc Gear Motor
US$ 80 - 85
/ Piece
1 Piece(Min. Order)
- NINGBO/SHANGHAI
- T/T Credit Card
You May Like
-
BLDC ZD MOTOR 62mm,60W/90W,24V Brushless DC Planetary Gear Motor for Packing Machine
-
High Speed ZD MOTOR 32mm,20W/25W,24V Brushless DC Planetary Gear Motor for Fan
-
Speed Control ZD MOTOR 42mm,40W,24V Brushless DC Planetary Gear Motor for Automation System
-
High Torque Low Rpm ZD MOTOR 72mm,120W/150W,24V Brushless DC Planetary Gear Motor for Solar Tracker
-
Quality Stable ZD MOTOR 52mm,40W/60W,24V Brushless DC Planetary Gear Motor for Medical Device
-
300 NM ZD MOTOR 82mm,200W/300W,24V Brushless DC Planetary Gear Motor for Slewing Driver
Product Details
| Brand Name | ZD MOTOR | Place of Origin | Zhejiang, China | |
| Model Number | Z62BLDPN2490-30S/62PN_K | Type | Gear Motor | |
| Certification | CCC, CE, ROHS, UL | Torque | 0.16~300N.m | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 2 | Protect Feature | Waterproof | |
| Continuous Current(A) | 3.5A | Speed(RPM) | 0.1~ 3000 r/min | |
| Commutation | Brushless |
Product Description
ZD BRAND TRANSMISSION PLANETARY DC GEAR MOTOR,BRUSHED AND BRUSHLESS TYPE,HIGH TORQUE,HELICAL GEAR ,ADJUSTABLE-SPEED
Product Paramenters
CONSTRUCTION: | BRUSH / BRUSHLESS | ||||||
MOTOR OUTSIDE DIAMETER: | 32mm / 42mm / 52mm / 62mm / 72mm / 82mm / 105 mm / 120mm | ||||||
PLANETARY GEARBOX DIAMETER: | 32mm / 42mm / 52mm / 62mm / 72mm / 82mm / 105 mm / 120mm | ||||||
Conventional products:62mm motor match with 62mm gearbox. | |||||||
Customized product: 62mm motor match with 52mm gearbox, 72mm motor match with 120mm gearbox( example) | |||||||
VOLTAGE: | 12 V / 24 V / 48 V | ||||||
RATED POWER (watts): | 20 / 25 / 40 / 60 / 90 / 120 / 150 / 180 / 200 / 300 ......750(MAX) | ||||||
MOTOR RATED SPEED(rpm): | 450/540/750/1000/1500/2000/2500/3000 (can be customized) | ||||||
PROTECTION GRADE: | IP 20 / IP 44 / IP 55 / IP 65 (According to customer request) | ||||||
GEAR RATIO: | One Stage | Two stage | Three Stage | ||||
3.65/5.36/6.55/8.63 | 13.53/18.92/24.65/28.05/33.92/44.69/58.22 | 67.08......392.98(can be customized) | |||||
High speed | Medium speed | Low speed | |||||
Output Torque Range:0.16 N.m---300 N.m ( can be customized) | |||||||
SHAFT: | Diameter range:6 mm-32mm , keyway type / D-cut type / Bare type ( can be customized) | ||||||
Accessories: | Encoder/ brake / connector | ||||||
Company Profile
Ningbo Zhongda Leader Intelligent Transmission Co., Ltd (ZD-MOTOR) was established in 1998, which is a national high-tech enterprise, specialized in motor drivers, micro gear motor, precision gearboxes(speed reducer), and integrated the R&D,manufacturing, marketing service.ZD MOTOR has 2 wholly-owned subsidiaries, 3 branches and 1400 employees, covering an area of 66,666 square meters.The company went public on the Shenzhen Stock Exchange SME board (stock code 002896) on 29th August 2017.
Our main products are micro DC gear motor(6w-750w), micro AC gear motor(6w-250w), small AC gear motor(100w-3700w), planetary reducer, precision RV reducer, motor controller and So on. Our products are widely used in industrial robots, intelligent logistics, renewable energy, CNC machine and other fields, as well as special machinery and equipment for food, packaging, textile, electronics, medical treatment, etc. Profit from their differentiation and high cost performance. Through the implementation of market innovation and business model innovation, direct sales and distribution are combined. Not only do we have branches in Dongguan and Tianjin, and sales centers in Shanghai and Jiangsu, but also cooperate with the world’s top 500 companies to create markets. , formed strategic partnerships with customers in North America, Europe, Southeast Asia, Japan, South Korea, South America, achieved localized marketing, and gradually participated in international competition on the basis of domestic substitution of imported products.
The company follows the concept of "substituting imported equipment for production instead of imported products", participates in market competition from a high starting point, continuously introduces international advanced production and testing equipment, and has formed gear processing mainly based on Japan's "Mitsubishi" and "Shigiya"Series of equipment, including Japanese "Makino"and American "HAAS" as the main House and cabinet processing series equipment, the Swiss "Hexagon", the German "ZEISS" and other main product detection series equipment. At the same time, vigorously carry out informatization and intelligent upgrading of traditional equipment, enhance the bearing capacity of production equipment for new processes and technologies, and start a new
intelligent manufacturing mode that combines joint robots and linear robots.
Our main products are micro DC gear motor(6w-750w), micro AC gear motor(6w-250w), small AC gear motor(100w-3700w), planetary reducer, precision RV reducer, motor controller and So on. Our products are widely used in industrial robots, intelligent logistics, renewable energy, CNC machine and other fields, as well as special machinery and equipment for food, packaging, textile, electronics, medical treatment, etc. Profit from their differentiation and high cost performance. Through the implementation of market innovation and business model innovation, direct sales and distribution are combined. Not only do we have branches in Dongguan and Tianjin, and sales centers in Shanghai and Jiangsu, but also cooperate with the world’s top 500 companies to create markets. , formed strategic partnerships with customers in North America, Europe, Southeast Asia, Japan, South Korea, South America, achieved localized marketing, and gradually participated in international competition on the basis of domestic substitution of imported products.
The company follows the concept of "substituting imported equipment for production instead of imported products", participates in market competition from a high starting point, continuously introduces international advanced production and testing equipment, and has formed gear processing mainly based on Japan's "Mitsubishi" and "Shigiya"Series of equipment, including Japanese "Makino"and American "HAAS" as the main House and cabinet processing series equipment, the Swiss "Hexagon", the German "ZEISS" and other main product detection series equipment. At the same time, vigorously carry out informatization and intelligent upgrading of traditional equipment, enhance the bearing capacity of production equipment for new processes and technologies, and start a new
intelligent manufacturing mode that combines joint robots and linear robots.
showroom of Speed Reducers
showroom of Gearmotors
We use equipments from world-famous brands and make every part carefully
Advanced management system makes our products traceable
Experienced skilled workers are our wealth
Automated workshop
We use self-developed motors and reducers and apply them in our own workshops. After a long period of research and improvement, we proudly recommend them to our customers.
Exhibition
Certifications
Recommend Products
Typical Application

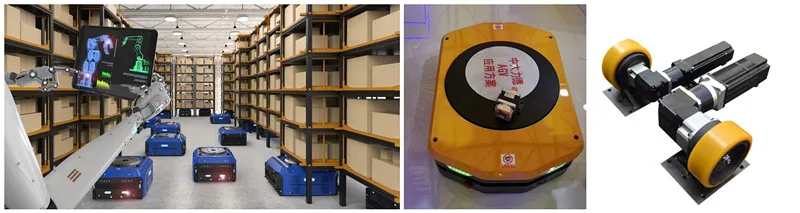

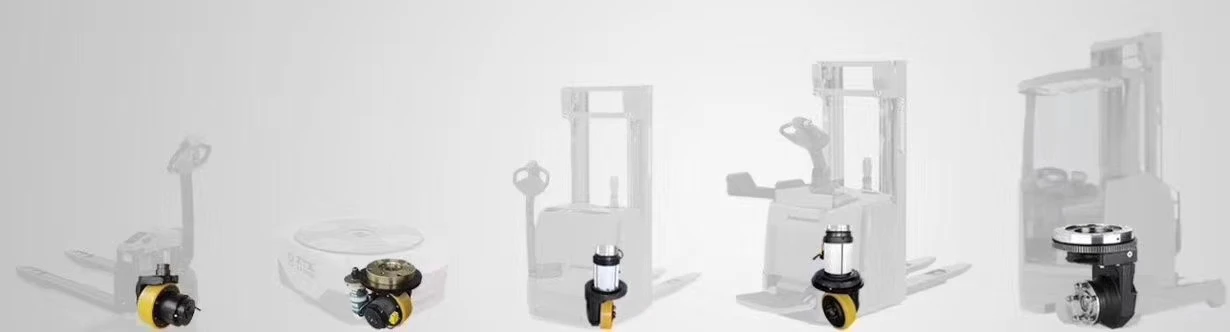

Automatic Guided Vehicle(AGV)
ZD's high-precision reducers and L-type BLDC gear motors are perfectly applied to AGV.

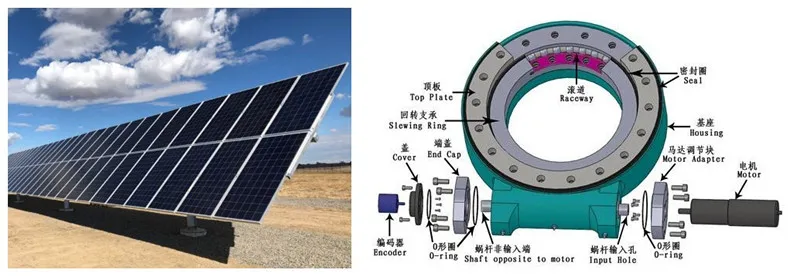

DC Motor with Planetary Gearbox Provide 200-300 N.m to Slewing Driver for SOLAR TRACKING SYSTEM
ZD has been devoted to the motor of solar tracking system for more than ten years and is in the leading position in the industry.

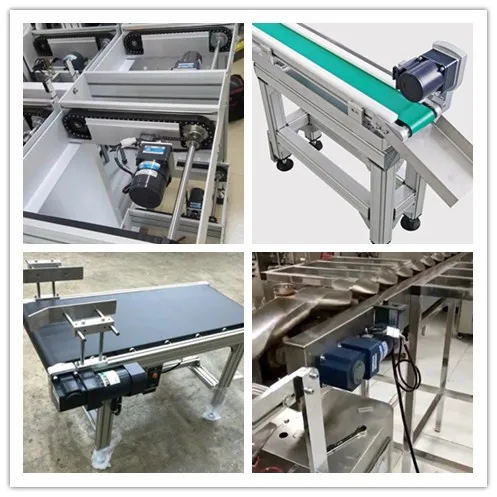

AC Gear Motor for Conveyor
As long as there is a conveyor belt, there is ZD MOTOR Food machine Packing machine
Printing maching
Logistics Sorting machine
Ice machine
Textile Machinery
Face mask making machine
Auto Parking
Mixing Machinery
Access Control System
Hydraulic Pressure
Cutting machine
Security System

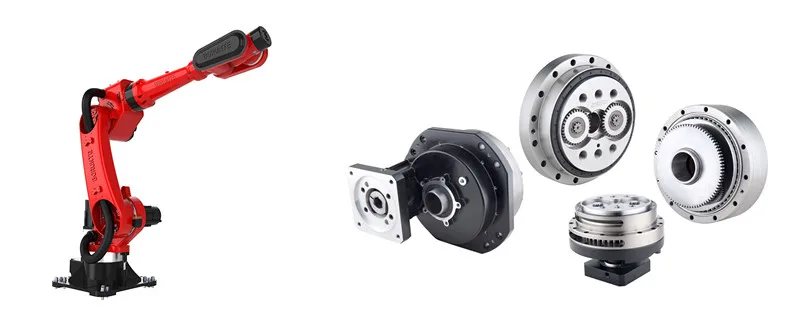

The key components of industrial robots-RV reducer
The success of ZD MOTOR is attributed to continuous R & D and progress, helping our customers realize their dreams in the field of automation.
FAQ
1、Q:Are you a manufacturer or trading company?
A: We ZD are manufacturer of AC/DC gear motor,Planetary gearbox,Motor controller with a R&D Team of 60 engineers.
A: We ZD are manufacturer of AC/DC gear motor,Planetary gearbox,Motor controller with a R&D Team of 60 engineers.
2、Q:What information do we provide when send inquiry?
A: For AC or DC motors, it is necessary to tell us rated power,voltage,output speed,output torque,work
A: For AC or DC motors, it is necessary to tell us rated power,voltage,output speed,output torque,work
conditions,installation way, insulation class,IP class etc.
For Speed reducer，it is perfect that provide servo motor drawing and parameters, gear ratio is needed.
3、Q:How about quality control of your factory?
A:From raw materials to finished products, we have 150 IPQC to ensure the quality of products through professional testing equipment and ISO9001 system.
4、Q:What about your warranty?
A:Follow the user manual ,1 year for conventional products.customized product requires negotiation.
5、Q:What is your MOQ?
A:1 piece is acceptable.
6、 Q:How about your payment term ?
For Speed reducer，it is perfect that provide servo motor drawing and parameters, gear ratio is needed.
3、Q:How about quality control of your factory?
A:From raw materials to finished products, we have 150 IPQC to ensure the quality of products through professional testing equipment and ISO9001 system.
4、Q:What about your warranty?
A:Follow the user manual ,1 year for conventional products.customized product requires negotiation.
5、Q:What is your MOQ?
A:1 piece is acceptable.
6、 Q:How about your payment term ?
A:We accept Alibaba trade assurance ,T/T, Western Union 100% payment in advance for order less $10000, large amount need to be negotiated.
7、Q:How about your packing?
A:Safe packing with foam wrapped,strong inner box and out carton, large quantities will be packaged with pallet.
8、Q:How do you delivery our order?
A:We will choose the most suitable ways of delivery by sea,air or express courier like DHL,FedEx,TNT, UPS.
7、Q:How about your packing?
A:Safe packing with foam wrapped,strong inner box and out carton, large quantities will be packaged with pallet.
8、Q:How do you delivery our order?
A:We will choose the most suitable ways of delivery by sea,air or express courier like DHL,FedEx,TNT, UPS.
9、Q:Can you customize the product?
A:Sure, we can do OEM or ODM.
10、Q:How about your lead time?
A:Sample order below 10 pcs is 1-10 work days,bulk order like 100 pcs is 20-30 work days.Customized product need to be negotiated.
11、Q:What certifications do you have?
A:We currently have CCC,CE,UL,ROSH certifications for most of our products.
A:Sure, we can do OEM or ODM.
10、Q:How about your lead time?
A:Sample order below 10 pcs is 1-10 work days,bulk order like 100 pcs is 20-30 work days.Customized product need to be negotiated.
11、Q:What certifications do you have?
A:We currently have CCC,CE,UL,ROSH certifications for most of our products.
