6A2 Metal Bond Diamond Grinding Wheel, Cup Wheel For PCD Grinding, PCBN Grinding

6A2 Metal Bond Diamond Grinding Wheel, Cup Wheel For PCD Grinding, PCBN Grinding thumbnail-1
6A2 Metal Bond Diamond Grinding Wheel, Cup Wheel For PCD Grinding, PCBN Grinding thumbnail-2
6A2 Metal Bond Diamond Grinding Wheel, Cup Wheel For PCD Grinding, PCBN Grinding thumbnail-3
6A2 Metal Bond Diamond Grinding Wheel, Cup Wheel For PCD Grinding, PCBN Grinding thumbnail-4
6A2 Metal Bond Diamond Grinding Wheel, Cup Wheel For PCD Grinding, PCBN Grinding thumbnail-5
6A2 Metal Bond Diamond Grinding Wheel, Cup Wheel For PCD Grinding, PCBN Grinding photo-1

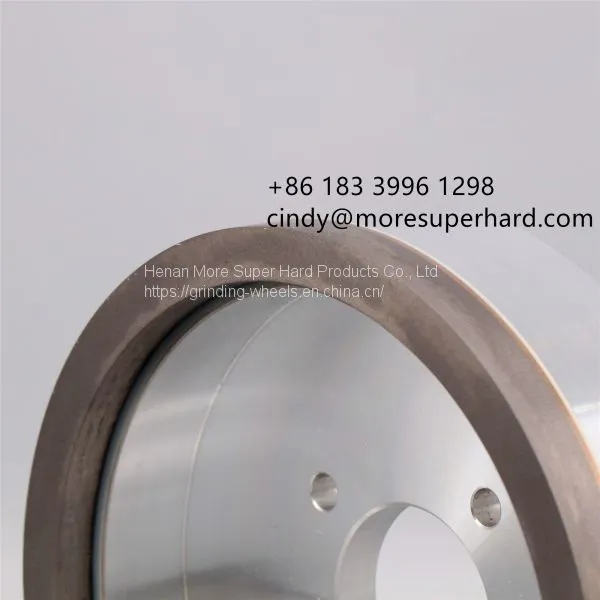

6A2 Metal Bond Diamond Grinding Wheel, Cup Wheel For PCD Grinding, PCBN Grinding photo-2

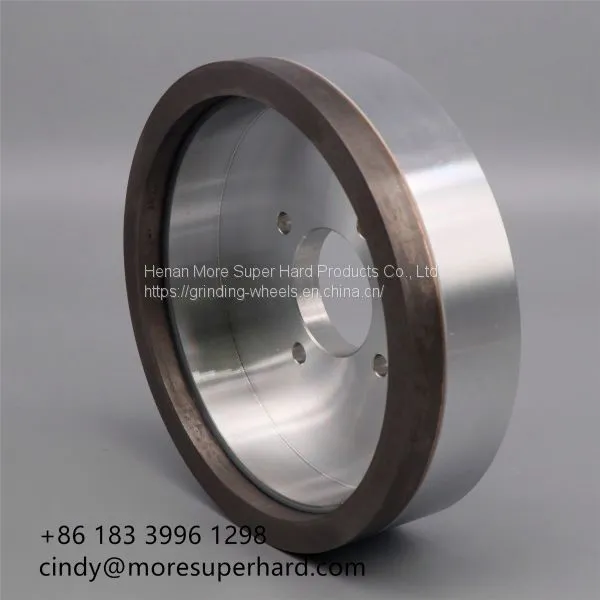

6A2 Metal Bond Diamond Grinding Wheel, Cup Wheel For PCD Grinding, PCBN Grinding photo-3

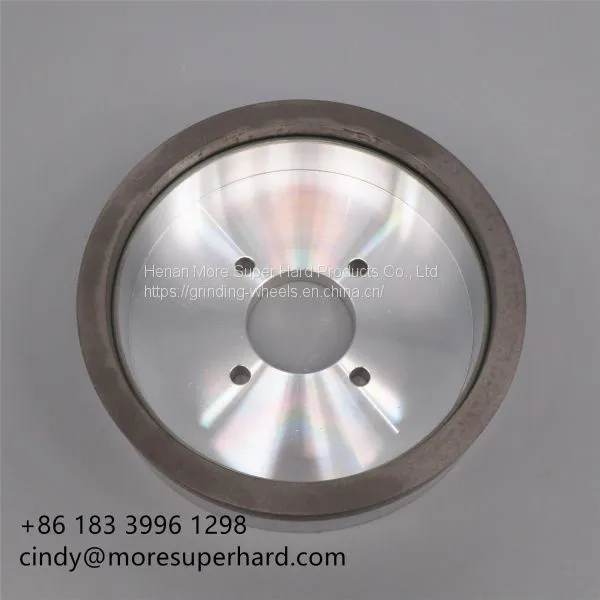

6A2 Metal Bond Diamond Grinding Wheel, Cup Wheel For PCD Grinding, PCBN Grinding photo-4

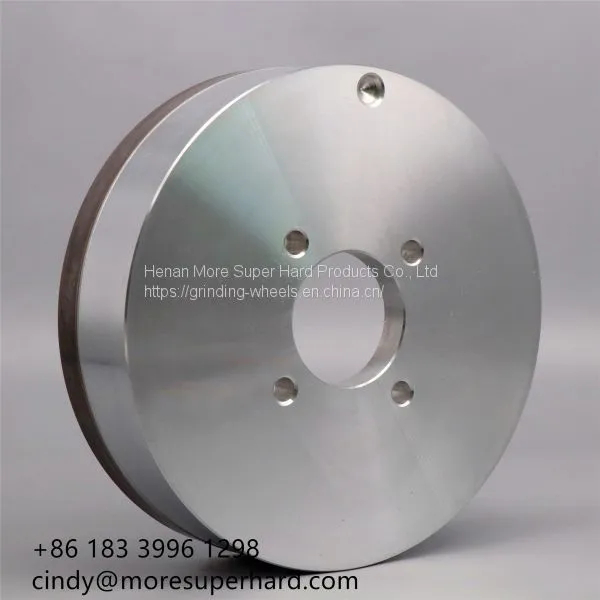

6A2 Metal Bond Diamond Grinding Wheel, Cup Wheel For PCD Grinding, PCBN Grinding photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Moresuperhard
Place of Origin:
China
Model Number:
6A2
Contact Supplier Request Quote Chat Now
Henan More Super Hard Products Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen, Beijing
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Moresuperhard
Place of Origin China
Model Number 6A2
Size 150*40*40*10*10 (Other specification please requirements)
Type Abrasive Disc
Metal Diamond Cup Wheel for PCD Grinding

► Customized PCD & CBN & CVD cutting, grinding, sharpening, brazing, regrind and retipped solution and service

► Bonded: vitrified bond, resin bond, metal bond

► Model: diamond cup wheel (6A2, 11A2, 1A2)

► Width: 3mm - 20mm

► Grain Size up to super finish #3000

► Cutting-edge chipping 5 μm

PCD grinding - metal bond diamond cup wheel

PCD and CBN cutting tools are widely used in metal cutting and processing nowadays.“More Super Hard Products” devotes to offer an efficiency and economic solution in PCD and CBN cutting tools grinding.

Diamond grinding wheels are used for grinding PCD cutting tools, PCBN cutting tools, CVD tools, MCD tools, milling cutter, reamer, drill and regrinding, etc

Suitable PCD Grinding Machines: COBORN,EWAG, Anca, FARMAN, MYTECH...

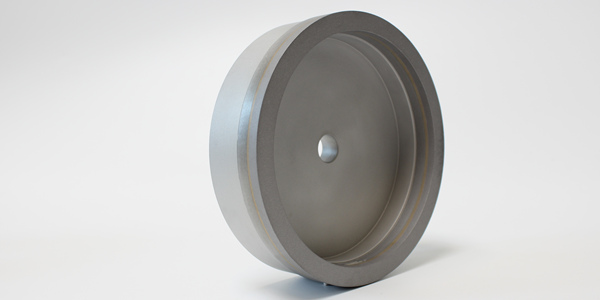

metal diamond cup wheel for pcd grinding

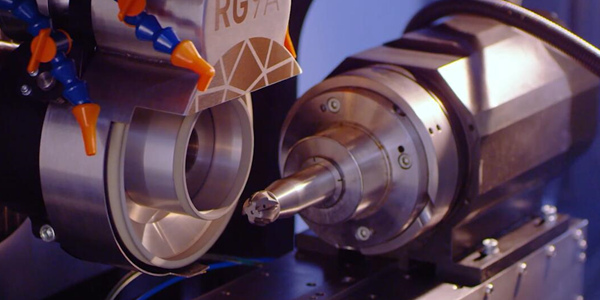

pcd tool grinding

Specifications of pcd tool grinding wheel

6A2    11A2

Model

D(mm)

T (mm)

H (mm)

W (mm)

X (mm)

6A2 / 11A2

150

40

32 40

3 5 10 15 20

10

125

40

32 40

3 5 10

10

100

40

32 40

3 5 10 20

10

Grit: 325/400, W40 (500#), W28 (600#), W20 (800#), W10 (1500#), W5 (3000#), W3 (5000#)

Application Example 1: PCD Inserts Grinding Vitrified Bond Diamond Grinding Wheel

Grinding machine

EWAG EasyGrind

Coolant

Emulsion

Workpiece

PCD insert (brazed, include carbide )

Grinding Parameters

Feed Rate

Vf = 2mm/min

Stock

0.3mm

Cutting Speed

Vc=15m/s

Advantage

1, 35%-time savings
2, 20% working life time increase
3, Chipping


Product Tags: 6A2 , Metal diamond , For PCD
