dc Cable 16mm Single Core Solar pv Cable
- NINGBO/SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Brand Name | HOLDEN | Place of Origin | Zhejiang, China | |
| Model Number | solar cable | Type | High Voltage | |
| Application | Construction | Insulation Material | XLPE | |
| Jacket | PVC | Conductor Material | Copper |
Product Description

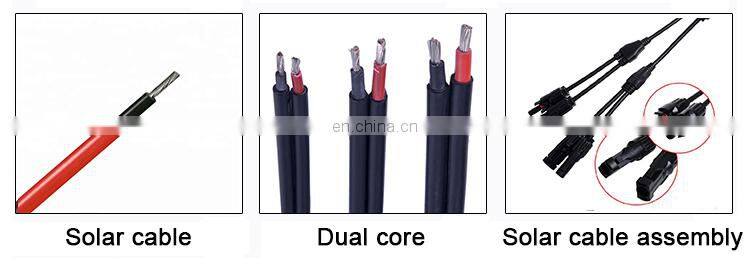

dc cable 16mm single core solar pv cable
Cross Section (mm²) | Conductor Construction (n/mm) | Conductor OD(mm) | Cable OD(mm)
| Insulation Min.Wall Thickness(mm) | Sheath Min.Wall Thickness(mm) | Current Araaing Capacity AT 60°C(A) |
| 1.5 | TXR30/0.25 | 1.58 | 4.90 | 0.67 | 0.73 | 30 |
| 2.5 | TXR50/0.25 | 2.02 | 5.45 | 0.67 | 0.73 | 41 |
| 4 | TXR56/0.30 | 2.60 | 6.10 | 0.67 | 0.73 | 55 |
| 6 | TXR84/0.30 | 3.42 | 7.20 | 0.8 | 0.80 | 70 |
| 10 | TXR142/0.30 | 4.56 | 9.00 | 0.9 | 0.90 | 98 |
| 16 | TXR228/0.30 | 5.60 | 10.20 | 1.00 | 0.90 | 132 |
| 25 | TXR361/0.30 | 6.95 | 12.00 | 1.19 | 0.92 | 176 |
| 35 | TXR276/0.40 | 8.74 | 13.80 | 1.20 | 1.00 | 218 |
Construction:Tinned copper + XLPE insulation.
Test voltage:6500V 5min.
Rated voltage:1000/1800V DC.
Halogen free and low smoke.
Tenperature rating:-40°C to 125°C,cold resistance.
UL and TUV certification.



Q1:Are you a trading company or manufacturer?
A1: Ningbo Holden Cable Co., Ltd. is a professional manufacturer,not a trading company,Thus,we can control your order from the first begining to the last.
Q2: What kinds of products does Ningbo Holden Cable manufacture?
A2: We specialize in supplying 300V/500V solid/stranded general PVC cable, coaxial cable, security cable, telephone cable, speaker cable, networking cable, H05RN-F/H07RN-F flexible rubber cable, YH/YHF welding cable, submersible pump cable, aluminium conductor cable, copper/aluminium high-middle-low voltage PVC/XLPE cable and other products.
Q3:Which standards do you comply with when you produce the electrical wires and cables ?
A3: We can provide the products according to ASTM, ICEA, BS, DIN, IEC and GB standards. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.
Q4:Can we have our logo or company name to be printed on your products or the package?
A4:Yes,you can.Logo and company name can be printed on our products by silk screen printing.
You can send us the artwork by email in JPEG or TIFF format.
Q5:How much the Courier freight will be for the samples?
A5:Courier freight depends on the quantity,weight and carton size and your area.
