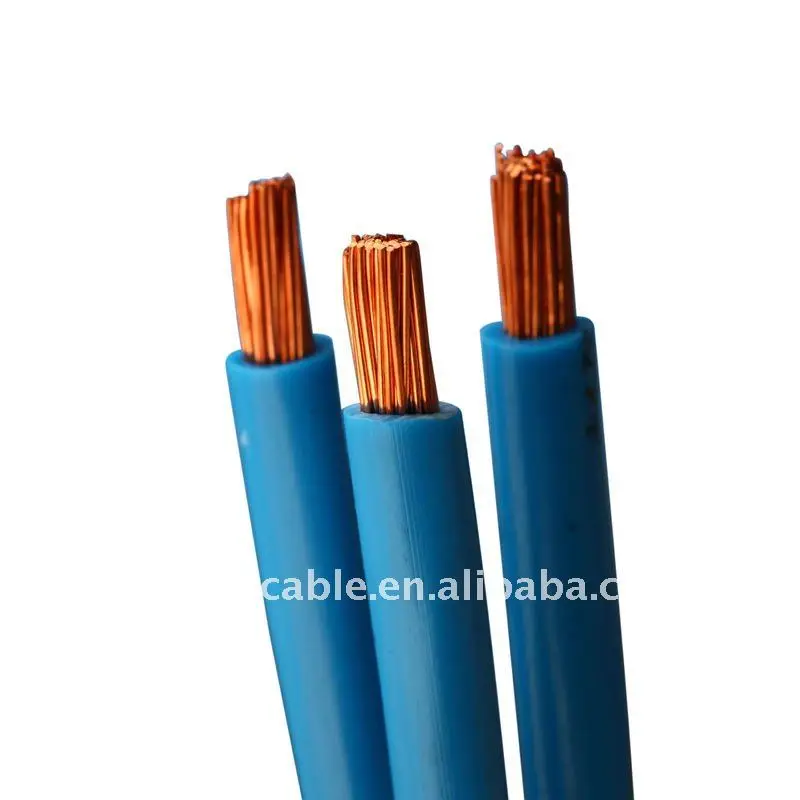

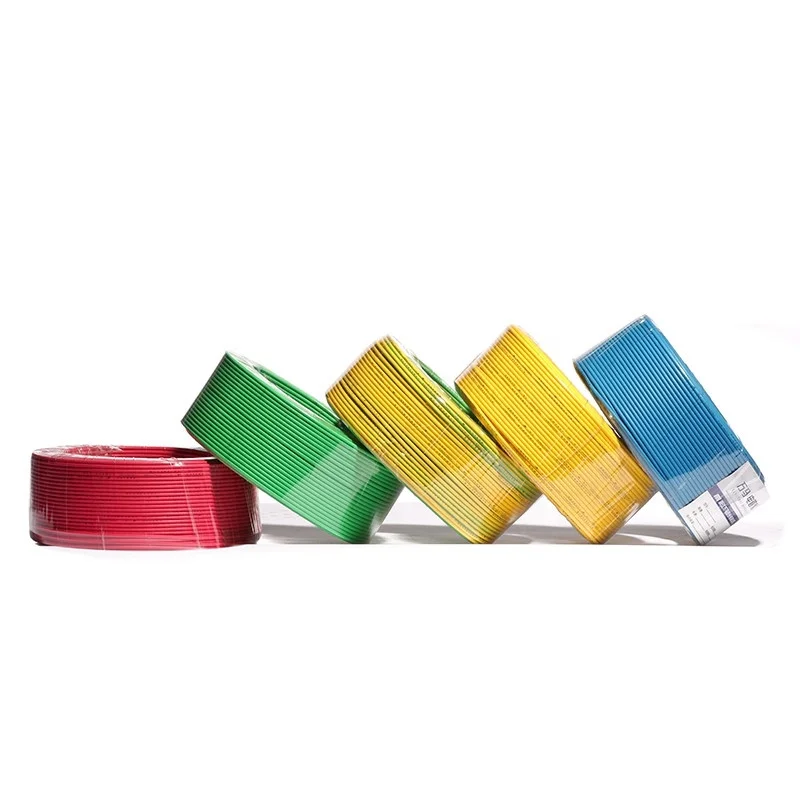

H05V-K H07V-K PVC Coated Electrical Building Wires

FOB Price

US$ 37 - 83 / Roll

5 Rolls(Min. Order)

Port Qingdao Tianjin Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	RMjT	Place of Origin	Henan, China
Model Number	building wire	Type	Insulated
Application	Heating	Insulation Material	PVC
Conductor Material	Copper

Product Description

Application of PVC coated electrical building wires

H05V-K H07V-K copper conductor PVC coated electrical building wires are used for electricity transmission for building, construction, lighting and so on.

H05V-K H07V-K copper conductor PVC coated electrical building wires to BS 6004 Standard Single Core PVC Insulated

Notes
Rated voltage: 300/500V 450 / 750v Conductor: BS 6360 Class 5,stranded, annealed copper wire Insulation: BS 7655TII PVC Compound Insulation Color: Red, Yellow, blue, black, green, white, purple, grey, orange, pink Operating temperature: 0 to 70 degrees C Min bending radius: 6xoverall insulated diameter Standard: BS 6004 Code: H05V-K, H07V-K

Nominal cross-sectional area mm2	Conductor (No./mm)	Approx. Dia. of cable (mm)	Mass of wire (Kg/km)	Conductor DC resistance at 20°C (Ω/km)	Conductor DC resistance at 70°C (Ω/km)
H05V-K
0.5	16/0.2	2.5	9.5	39	0.014
0.75	24/0.2	2.7	13.1	26	0.013
1	32/0.2	2.8	16	19.5	0.011
H07V-K
1.5	30/0.25	3.4	21.3	13.3	0.01
2.5	49/0.25	4.1	32.5	7.98	0.009
4	56/0.3	4.8	49.6	4.95	0.007
6	84/0.3	5.3	69.3	3.3	0.006
10	84/0.4	6.8	117.8	1.91	0.0056
16	126/0.4	8.1	171.2	1.21	0.0046
25	196/0.4	10.2	268.8	0.78	0.0044
35	276/0.4	11.7	359.2	0.554	0.0038
50	396/0.4	13.9	505.3	0.386	0.0037
70	360/0.5	16	720.5	0.272	0.0032

_Notice

_{In addition, we have other models and sizes, please contact us if you need, thank you.}

_HO7V-U

450/750 PVC Insulated Building Wire, BS Standard

H03VVH2-F、HO5VVH2-F

_{PVC Insulated/PVC Sheathed Flat Wire}

H05V-K、H07V-K

_{PVC Insulated Flexible Wire}

HO3VVH2-F、H05VVH2-F

_{PVC Insulated/PVC Sheathed Flat Wire}

HO7Z-U

_{450/750 LSHF Compound Insulated Building Wire. BS Standard}

HO5Z-K、HO7Z-K

_{LSHF Compound Insulated Flexible Wire，BS Standard}

ECC Cables

_{Flat Twin and Earth Wire-ECC Cables, BS Standard}

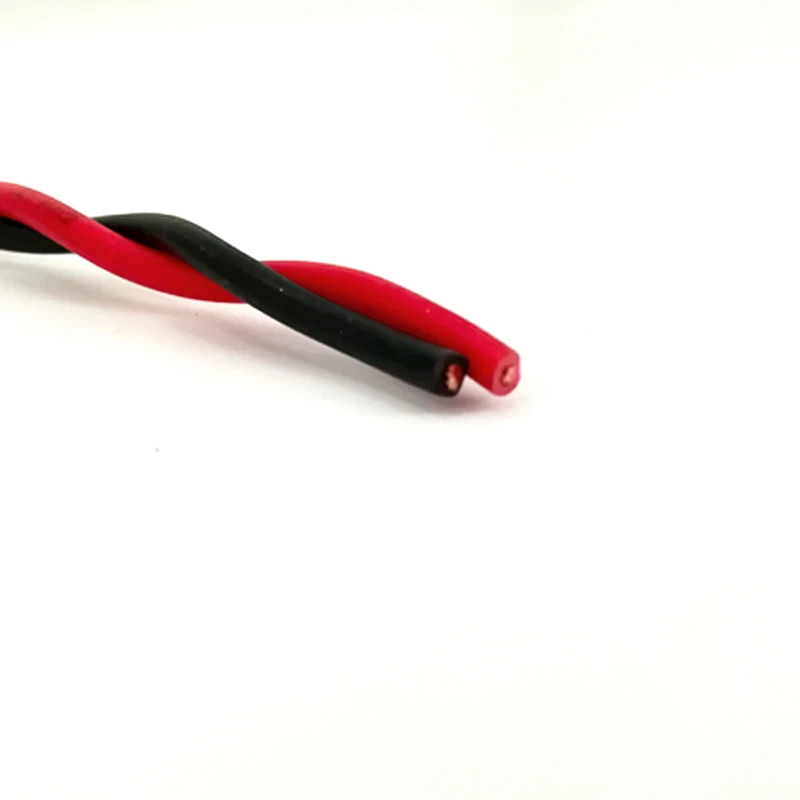

H05V-S

_{300/300V PVC Insulated Flexible Twisted Cord}

RVVP

_{PVC insulated PVC sheathed screened flexible wire}
