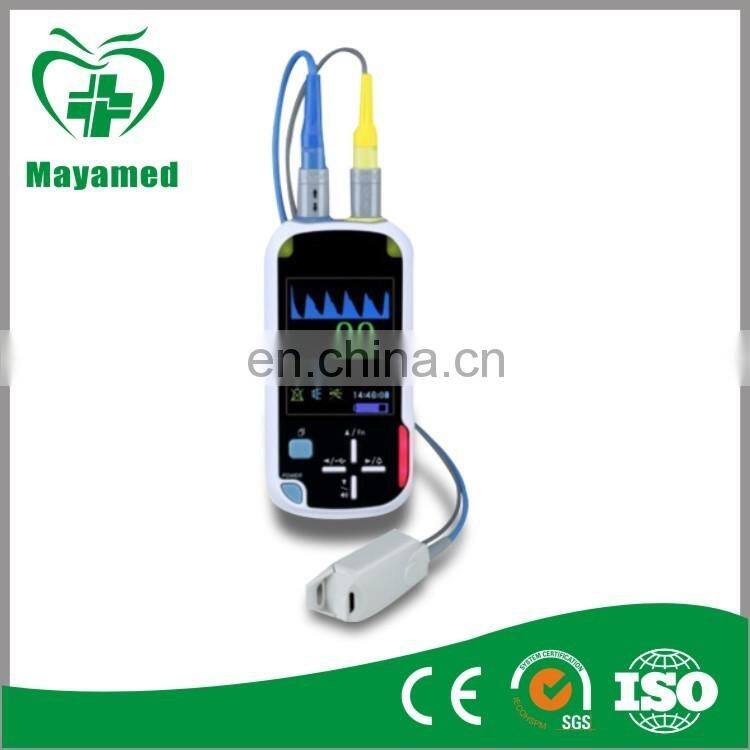

MY-C014 Bluetooth Blood Pressure Monitor With Pulse Oximeter Spo2 and TEMP Handled Pulse Oximeter

Parameters:

Three Parameters:SPO2,TEMP and Pulse Rate

Waveforms:

Waveform: SPO2 waveform-PLETH

Features:

² Monitoring SPO2, TEMP, PR & PLETH

² 2.8 inch color TFT LCD in real time display, displayable in big font and big screen

² BlueTooth wireless is very convenient to realize reviewing the measurements in big screen via connecting PC and to upload history data to PC for review, printing or storage

² Unique software for telemonitoring by transmitting data synchronously via internet

² Long time monitoring and sleeping monitoring

²

² Storage/Review trend data up to 3888 groups, data save time interval settable

² Audio and visual alarm when parameters exceeded and sensor-off

² Built-in rechargeable Li-ion battery, up to 15-hour running time

² Battery capacity indicator. Automatic shutdown for power saving

Applications:

The oximeter could be applied in the hospital’s operation room, ICU, clinic section office,

Out-patient department, sickroom and emergency treatment.

Standard Packing List:

Oximeter main unit 1unit

Adult finger SpO2 sensor 1pc

Skin surface skin TEMP probe 1pc

USB communication cable 1pc

BlueTooth Radio

VSDV/Guardian/BuleTooth Software disk 1 pc

The operator’s manual 1pc

Selectable Accessory:

Pediatric finger/Neonatal Wrap SpO2 sensor

H.S.Code: 90189090

Dimension: 125x65x28mm

Net Weight: 160g

Gross Weight: 900g

Package Size: 220x160x75mm

Color: Gray with white

Specifications:

1. General

Monitoring Parameters: SpO2,PR,PLETH,Pulse strength,TEMP

Signal sockets:SpO2 socket,TEMP socket,USB socket(for charge battery and transmit data)

2. Display screen

Type: 240 × 320 dot matrix color TFT LCD screen

Display area: 43mm×58mm

3. Functions

PLETH: The monitor can display PLETH waveform

Intelligent parameter monitoring screen: The monitor automatically selects the parameter measurements to display according to the probes connected to the monitor.

Audio and visual alarm: The speaker sounds the alarm and the parameter’s measurement will become in red to flash on the screen. Also the same when sensor-off.

Prompting: Icons of battery capacity, pulse sound switch and alarm sound switch.

Power saving: The monitor will automatic shut down to save power. The time is settable.

Trend: Storage/Review trend data up to 3888 groups, data save time being set freely

Data storage: The saved data will never be lost even if the monitor is powered off.

Communication: Transmitting the patient’s trend to a PC for display, observation, saving and printing via USB or Bluetooth wireless

4. Electrical specifications

Working Voltage: D.C. 3.7V/3000mAH

AC power adaptor

Input: AC 100 V~240V, 50/60Hz, 5VA

Output: D.C. 5V

Internal battery

Type: D.C. 3.7V/3000mAH Li-ion rechargeable battery

Run Time: 15-hour continuous operation with a new, fully charged battery (environment temperature is 25℃)

Recharge time: 8 hours

5. Environment

Temperature

Operation: 0°C ~ 45 °C

Transportation and storage: -20°C ~ 60 °C

Humidity

Operation: 15% - 95 %( noncondensing)

Transportation and storage: 10% - 95 % (noncondensing)

Altitude

Operation: 86 KPa ~106 KPa

Transportation and storage: 50KPa~106 KPa

6. Parameter Specifications

SpO2

Patient: Adult, pediatric,neonate

Range: 0% - 100%

Resolution: 1 %

Accuracy: 70% - 99%: ±2 %

 0% - 69%: Unspecified

PR

Range: 0 bpm ~250bpm

Resolution: 1bpm

Accuracy: ±2bpm

TEMP

Channel: 1

Input: Body surface thermal-sensitive resistor temperature sensor

Range: 0℃~50℃

Resolution: 0.1℃

Accuracy: ±0.2℃
