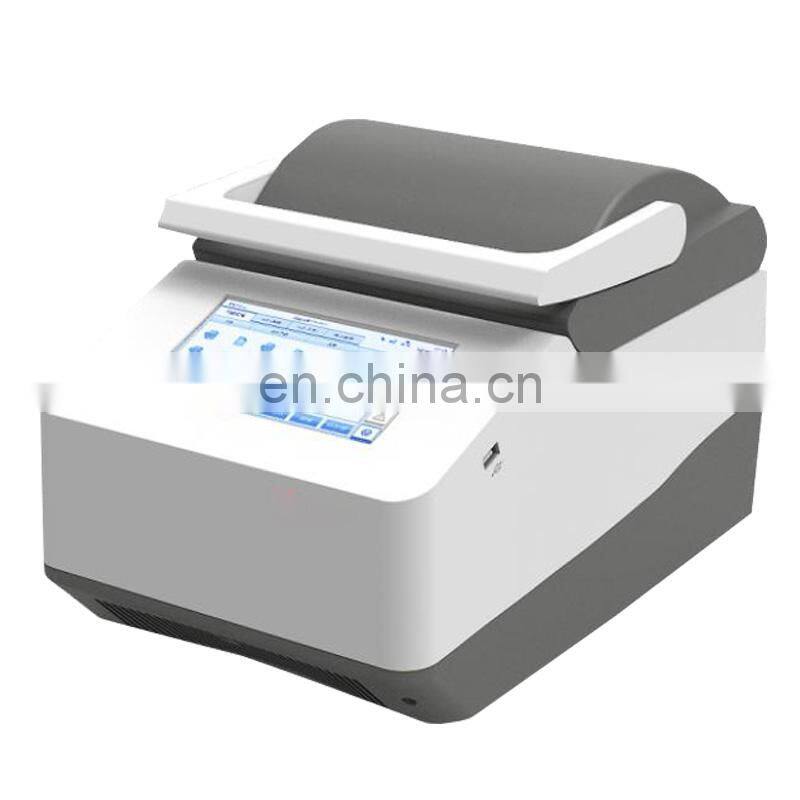

2 Seconds Detection Time 48 Wells Pcr Machine Price Real Time Pcr Detection System

Maya Medical have rich experience to build up the new hospital and new clinic , our one-stop service is your best choice !

We concentrate on African market and set up two branches in Nigeria and Madagascar. Meanwhile, we have already established after-sale service office in Lagos Nigeria, Islambad Pakistan and also Neirobi Kenya.

2 seconds detection time 48 wells pcr machine price real time pcr detection system

Sample capacity(wells) 48
Reaction Volume 5-100 μL
Consumables 0.2ml 8-strip tubes ,0.2ml PCR single tube(Optical flat cap,clear tube)
Temperature range 0°C-100°C
Heating/cooling method Peltier
Max heating rate 8.0°C/sec
Average heating rate 6.2°C/sec
Max cooling rate 6.2°C/sec
Average cooling rate 4.5°C/sec
Temperature accuracy ±0.1℃
Temperature uniformity ±0.2℃
Gradient Range 1°C-40°C
Gradient block 8 row
Special temperature portocol: Gradient PCR,Long PCR,Touch Down PCR
Heat Lid
Temperature range Room Temperature–110°C
Optical System
Excitation Source 4LEDs
Detector Photodiode
Detection Position Excitation and scan from lateral
Detection method 4 channels scanning at the same time, no edge effect.
Detection time 2 seconds for 48 wells for all channels
Range of excitation/emission wavelengths
(nm):
1 465 /510 (FAM,SYBR Green I,SYTO9,EvaGreen,LC Green)
2 527/ 563 (HEX,VIC,TET,JOE)
3 580 /616 (ROX,Texas Red)
4 632/ 664( Cy5)
Probe: Taqman Probe,Molecular beacons probe,Scorpion probe
Multiplexing Up to 4 targets
Fluorescence Linearity r≥0.990
Fluorescence Dynamic Range Adjustable
Performance
Sample Linearity /r/≥0.999
Sample repeatability Ct value CV≤0.5%
Sample Dynamic Range 1-1010 copies
Software Funtions
