Hospital Medical 0.3T MRI Scanner/scan/machine Equipment Price With Mri Film for Sale

Hospital Medical 0.3T MRI scanner/scan/machine equipment price with mri film for sale

*Excellent price performance ratio

Comprehensive application suite and powerful software included in standard configuration

*Patient friendly appearance

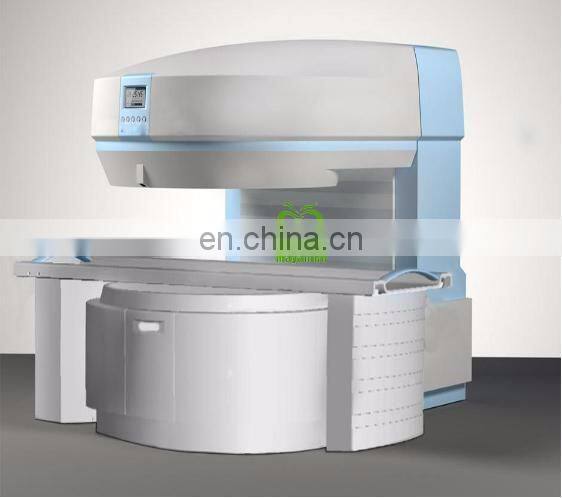

Most open C-shaped magnet

*Minimal sitting requirements

About 46 m²

*Low operating Costs

Permanent magnet – no helium

*Higher revenues

Attractive to more patients and referring physicians

*Excellent Return On-Investment

 Decreased costs-optimized profitability

*Efficient and Professional service team

24 hours service hot-line

Specifications of 0.3T System

UUUUUUUUU1.0  Magnet:

Operating Field Strength         0.30 Tesla (3000 Gauss)

Magnet Type                    Full open C-shape, eddy current free, self-temperature control

Magnetic material                Permanent Nd-Fe-B magnet

Homogeneity                    (400mm DSV) ≤ 2.5ppm (Vrms)

Shimming                       Passive & active shimming

Patient gap                      400mm

Dimension                      1760cmx1200cmx1530cm

Net Weight                      12,000KGS

UUUUUUUUU2.0  Gradient System:

Gradient strengh                max. 18mT/m (Gx/Gy/Gz)

Slew rate                       60mT/M/ms (Gx/Gy/Gz)

Gradient linearity               <5%(400mm×400mm×380mm)

UUUUUUUUU3.0  RF System:

Frequency range                DC~32MHz

Spectrometer                   Digital (Single channel)

Transmitting coil                Flat planar coil

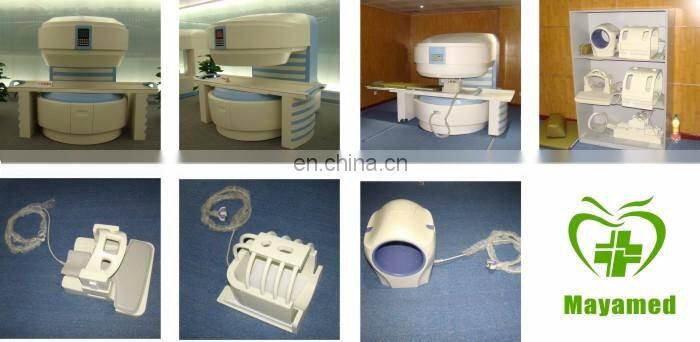

Receiving coils                phase array coil(Neck coil,  Head coil,  Large body coil,  Small body coil,  Knee coil)

Optional coils                   spine coil,  breast coil,  ankle coil, etc.

Max. receiver bandwidth         1.25Mhz

Power of transmitter amplifier     5KW

UUUUUUUUU4.0  Computer System:

Operating system               Windows2000/NT/XP

CPU                           ≥2.8GHz(Dual Core Processor)

Hard disk                      ≥160GB

RAM                          1024MB (1GB)

Display Device                 ≥20’’ TFT

Network & laser printer interface   DICOM3.0

Software                       BASDA 0.3T Software

5.0 Auto Pre- scan

6.0  Pulse Sequence:

Standard IR

Spin Echo ( SE 2D/3D)

Multi-slice multi-echo (MSME)

Gradient Echo (GRE 2D/3D)

Steady state process gradient echo( SSPGRE)

Fast spin echo (FSE)

Single shot fast spin echo(SSFSE)

Multi shot fast spin echo (MSFSE)

Inversion recovery (IR)

Inversion recovery fast spin echo (IRFSE)

Short time inversion recovery (STIR)

Fluid attenuated inversion recovery ( FLAIR)

MRM ,MRU ,MRCP

TOF 2D/3D MRA

Diffusion weighted imaging (DWI)

Echo planar imaging(EPI)

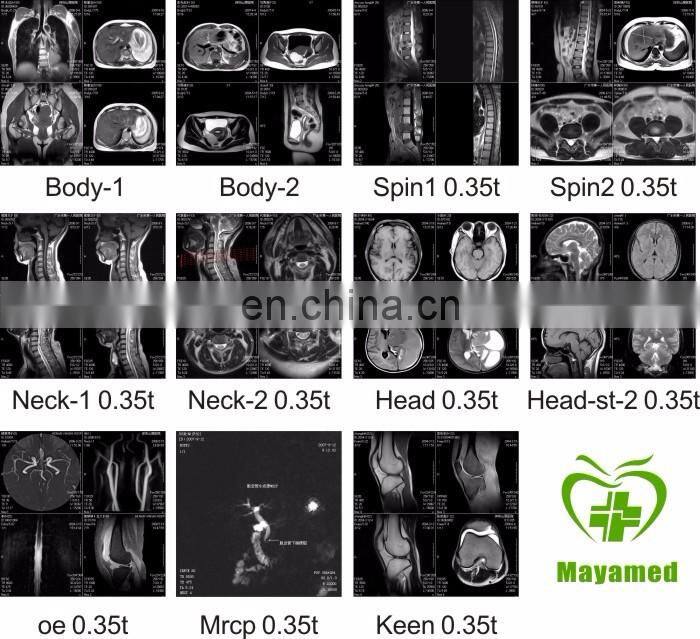

7.0 Image:

Acquisition matrix               64/128/256/512

Resolution                      1mm(head 24cm FOV 256X256)

                                1.5MM(body 30cm FOV 256X256)

                                0.5mm(head 24cm FOV 512X512)

                                0.75mm( body 30cm FOV 512X512)

Maximum display matrix         1024x1024

FOV                           20 ~ 400mm

Slice thickness                  (2D/3D)Min.1mm(1mm increment)

 Slice Orientation                Sagittal, coronal, transversal, any angle any oblique

Image Type                 T1 Weighted imaging , T2 weighted imaging ,T2* weighted imaging , proton density imaging;Water Suppressed Imange,Fat Suppressed Image, MRM, MRU,MRCP; Magnetic Resonance angiography (MRA), Diffusion Weighted Imaging (DWI)

UUUUUUUUU8.0  Patient Table System:

Max. Patient load about 220kg;

Available with laser light localizer for patient positioning

Intercommunication between patient and operator: available

9.0  Power Supply

3N~380/400V 50/60Hz 10KVA

10.0  Typical Layout:

Magnet Room                          About 30 Square meters(5m×6m);

Equipment Room                       About 12 Square meters(4m×3m);

Control Room                          About 4 Square meters(2m×2m);

Total MRI-System area                  About 46 Square meters.

1. For all your inquires about us, we will reply you in  detail within  24 hours.

2. We own professional team with professional attitude to recommend products and services  for you.

3. The  products  have one year free warranty,  after which they  can still be provided after-sales service.

4. We offer OEM services. And we can print your own logo on the product.

5. We have well-experienced engineers, who can help you better use our products.

Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.

Q: How to buy your products ?

A: We have some products in stock , you can take away the products after you arrange the payment ; If we don’t have the products in stock you want, we will start  production once getting the payment.

Q: What’s the warranty for the products ?

A: The free warranty is one year from the date of commissioning qualified.

Q: Can we visit your factory ?

A: Of course, welcome to visit our factory if you come to China.

Q: How long is the validity of quotation ?

A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the price fluctuation of raw material in the market.

Q: What’s the production date after we confirm the order ?

A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production.

Please contact us for more detail information.
