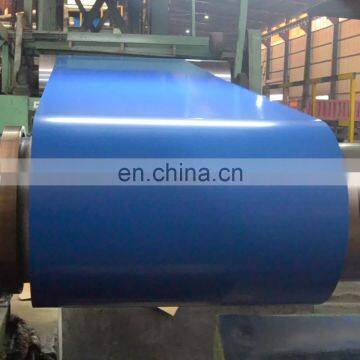

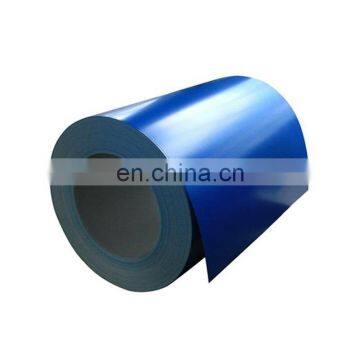

Low Price Prepainted Ral 6023 Design Pattern Ppgi Steel Coils

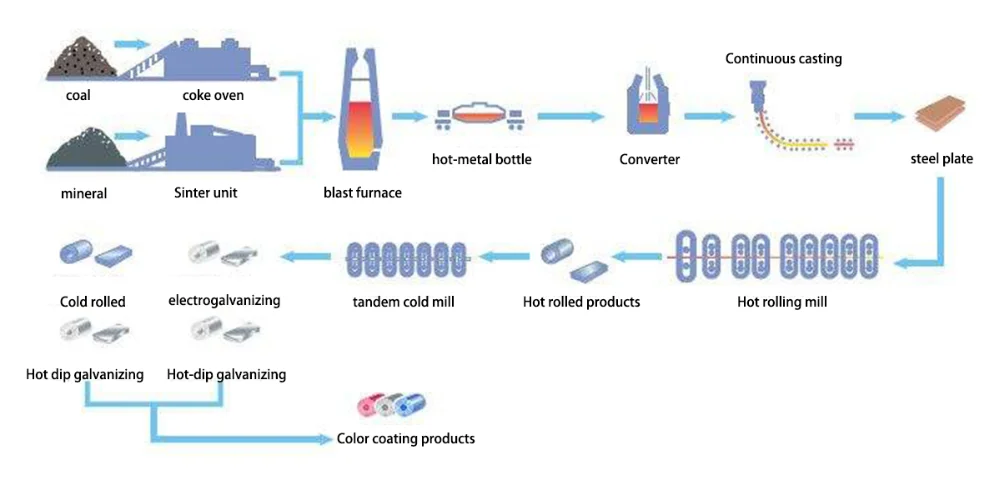

Low price prepainted ral 6023 design pattern ppgi steel coils Poducing process

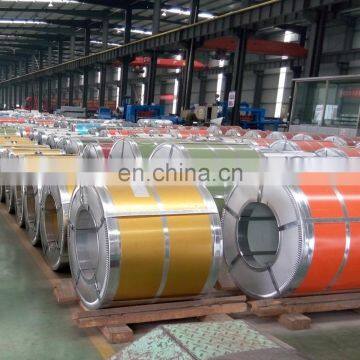

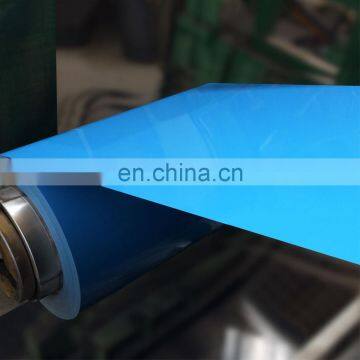

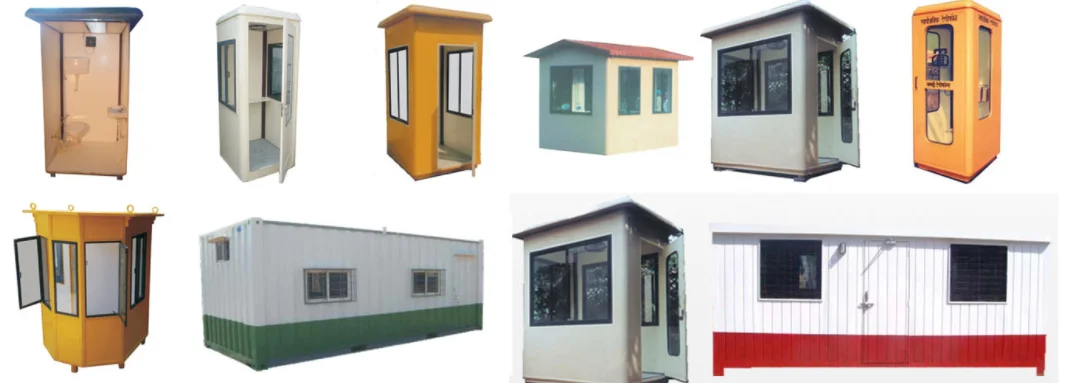

Color Prepainted Galvanized PPGI Steel Coils is a product made of cold rolled steel plate and galvanized steel plate by surface pretreatment (degreasing, cleaning, chemical conversion), continuous coating (roll coating), baking and cooling. Coated steel sheet has light weight, beautiful appearance, good corrosion resistance and can be processed directly. It provides a new raw material for construction, shipbuilding, vehicle manufacturing, household electrical appliances, electrical industry, etc. It has played a good role in replacing wood with steel, efficient construction, energy saving, pollution prevention and other good results

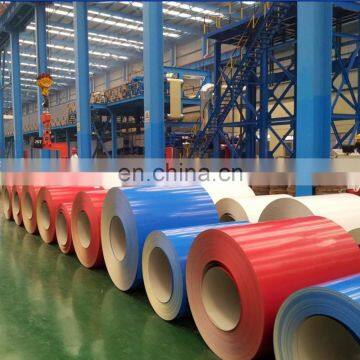

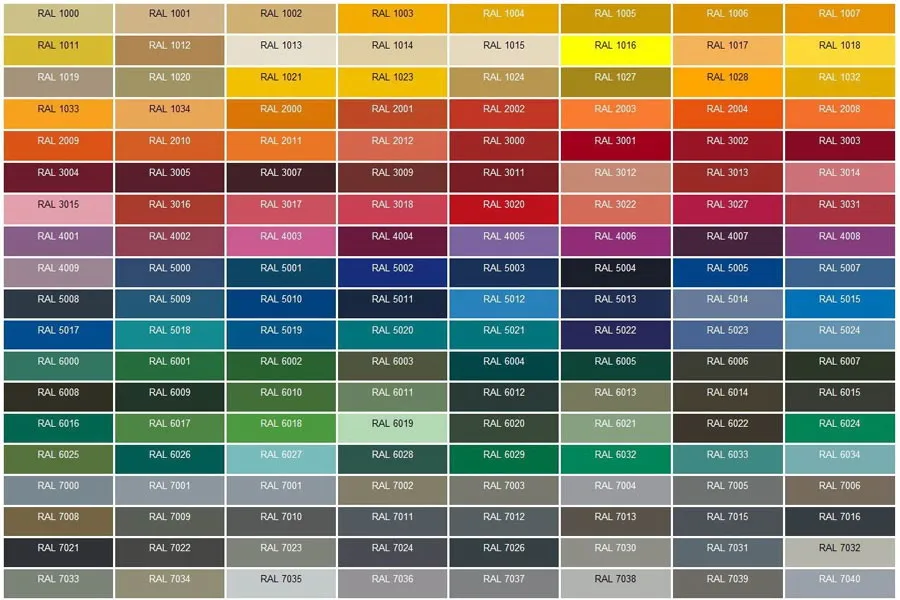

The color could be customized according to  your requirements

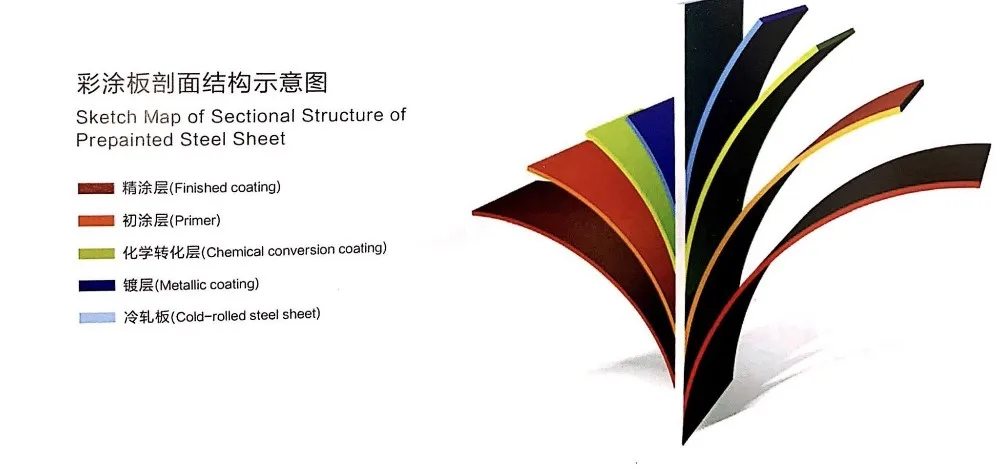

PPGI coating film introduction

❀Top paint film:

RPE, SMP, HDP,PVDF,Other paints.
Function: It functions as a sunlight proof cover, especially prevent the destroy by the ultraviolet rays. When the top paint film reaches a certain thickness, it forms a compact cover, and reduce the water and oxygen permeability.

❀Primer paint film:

Polyurethane, Epoxy, PE
Function:Strengthen the adhesiveness between the top paint film and the basemetal. Even permeable water happens, the top paint film will not peel off. There is corrosion inhibitor which is corrosion resistance. Polyurethane is necessary for higher processing flexibility and weather resistance requirements.

❀Passivation layer

Function:Increase the adhesion between the metallic layer and coating film. Extend life span also.

❀Metallic coating

Function:The metallic coating provides the fundamental protection for the steel.
The popular coating metal are galvanize, galvalume and other alloyed metals.

❀Substrate steel

Cold rolled steel is usually used as substrate, it decides the mechanical properties and the steel shape and flatness.

❀Back paint film

Epoxy, Modified PE.
Back paint can sustain color in good condition and has good binding.

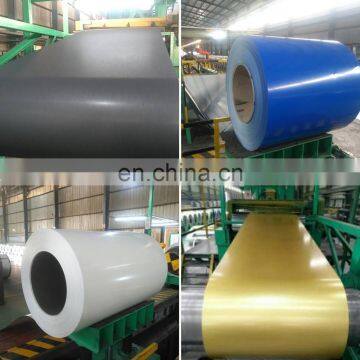

More Products

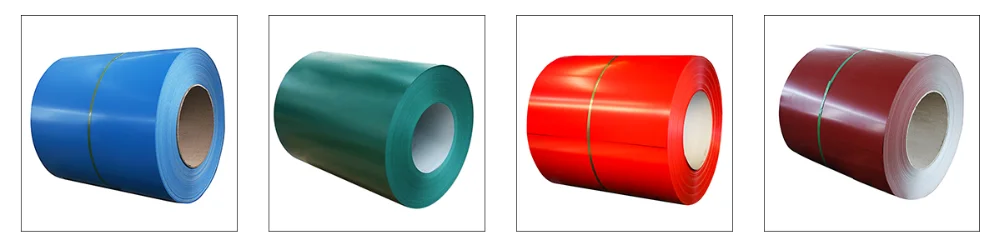

      PE Prepainted Steel

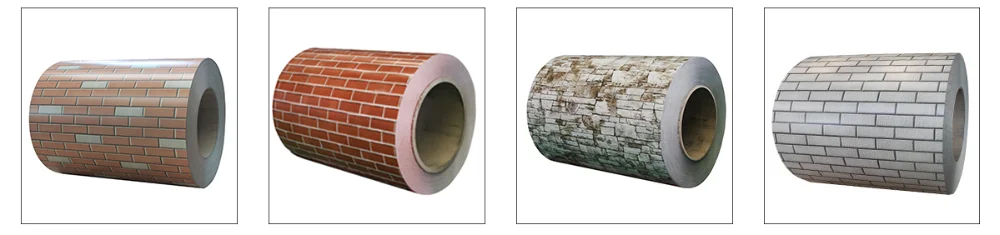

     Stone Pattern Prepainted Pteel

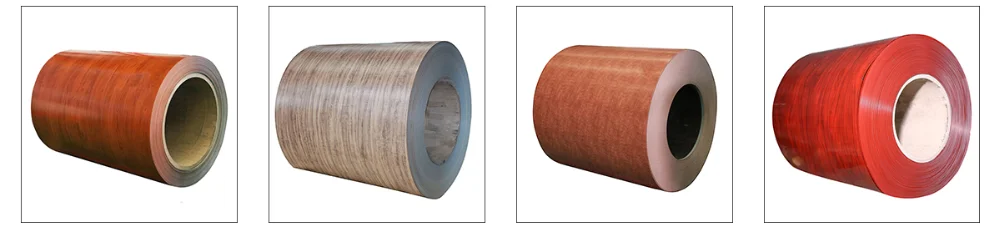

    Wood Pattern Prepainted Steel

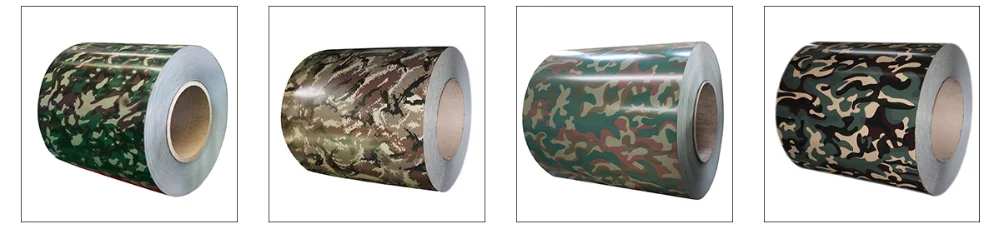

    Camouflage Pattern Prepainted Steel

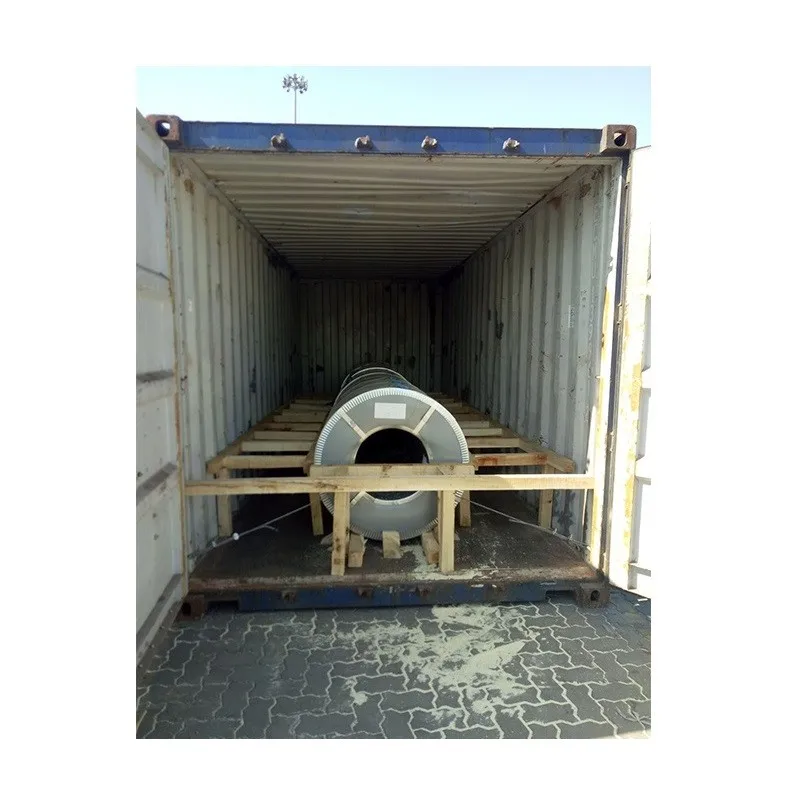

Packing Details : waterproof paper+plastic film+iron packing+bundling, or as per customers request.

Delivery Details : 15 days after receipt of LC or deposit.

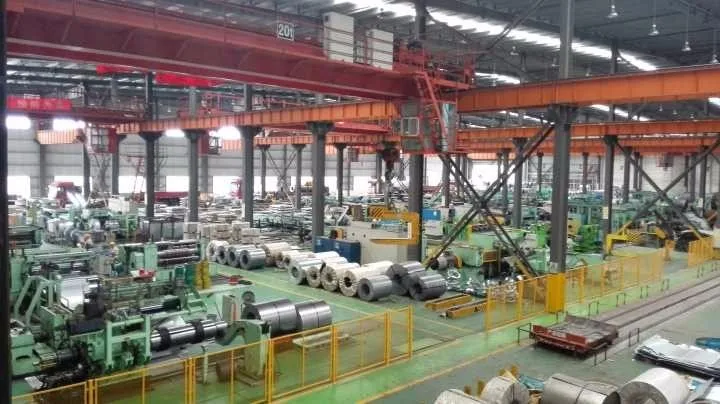

Tianjin Zhanzhi Steel Corporation Limited founded in 2008.It is a branch of Shanghai Zhanzhi Industry Group Co.,LTD. It is founded in early 1990s,located in Shanghai Yangpu Distrist, is a large-scale comprenhensive enterprise group, combining steel trade,processing and distribution of steel,steel raw materials,real estate development,financial investment and other industries. The registered capital is 200 million RMB.
