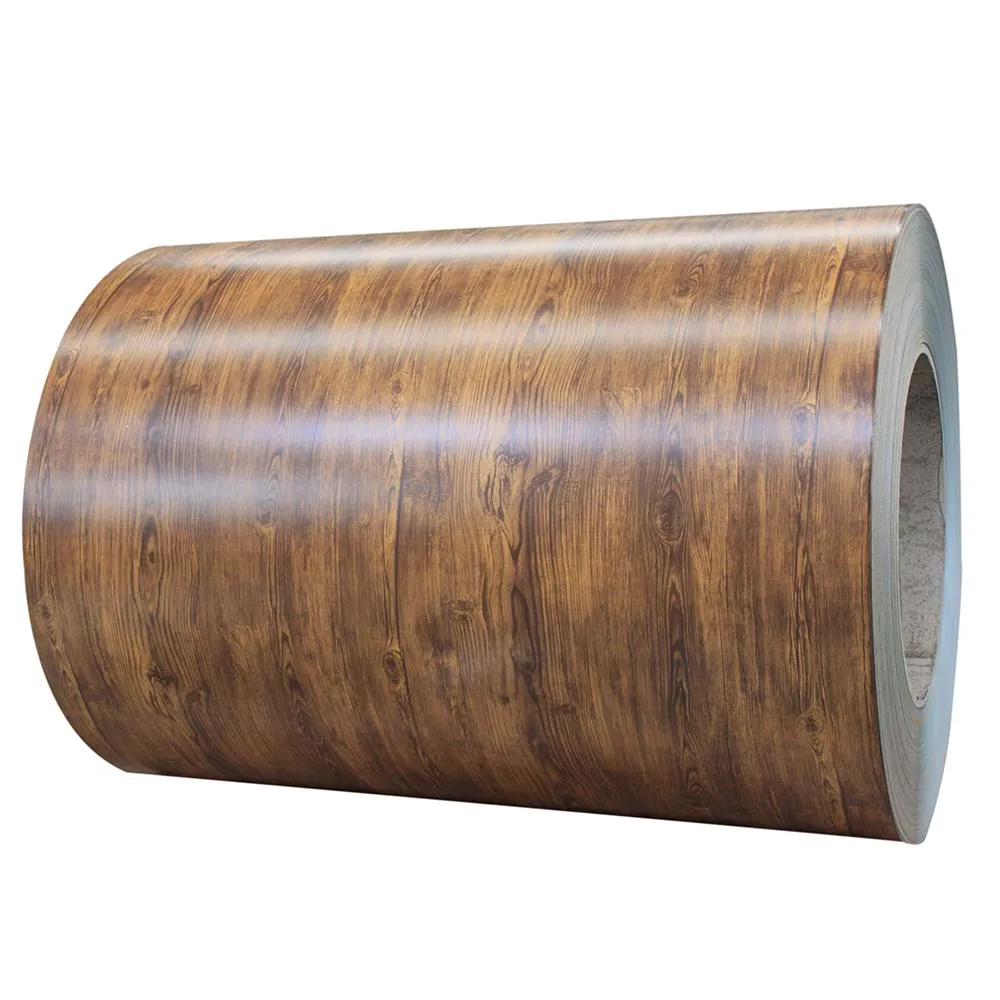

Cold Rolled Prepainted Galvanized Wooden Pattern Printed Ppgi Steel Coils for Home Decoration
- Tianjin
- T/T Credit Card
You May Like
-
GI Plain Roofing Sheet in China
-
Prepainted Aluzinc Gavalume Alloy Coated Steel Coils
-
Ppgi Ppgl gi gl Color Coated Prepainted Galvanized Roofing Sheet
-
HDP Galvalume AZ 150 Aluzinc Steel Coil Roofing Sheet
-
Anticorrosive Laminating PVDF Green Grass Pattern Pre Painted PPGL Steel Coils Sheet
-
Hot Dipped Galvanized Steel Coil/cold Rolled Steel Prices/cold Rolled Steel Sheet Prices Prime PPGI/GI/PPGL/GL
Product Details
| Brand Name | ZHANZHI | Place of Origin | Tianjin, China | |
| Model Number | ZH-W-056 | Length | Customer's Requirement | |
| Width | 600/1000/1250/1500mm | |||
| Technique | Cold Rolled | Standard | AISI, ASTM, BS, DIN, GB, JIS | |
| Grade | DX51D | Special Use | High-strength Steel Plate |
Product Description








Capacity | about 15000 tons per month for the steel sheet and coil product |
Material | Hot-dipped galvanized steel coil |
Standard: | JISG3312/ASTM/EN10169/GBT12754 |
Thickness | 0.18mm - 3.5mm |
Width | 600/1000/1250/1500 (mm) or per customer's request |
Coil ID | 508mm/610mm or per customer's request |
Coil weight | from 2-10MT, according to the customer's request |
Surface coating type | PE,SMP,HDP,PVDF |
Zinc coating weight | 30g/m2-600g/m2, double side |

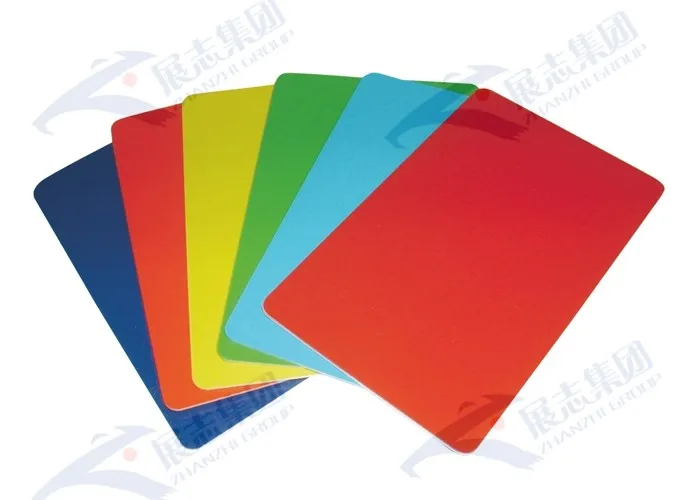

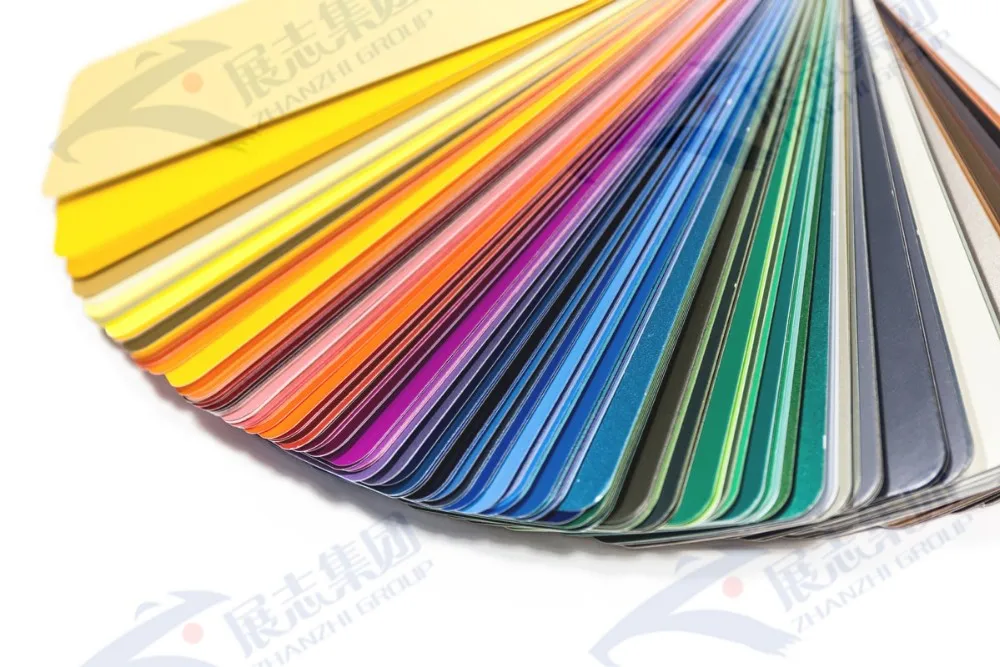

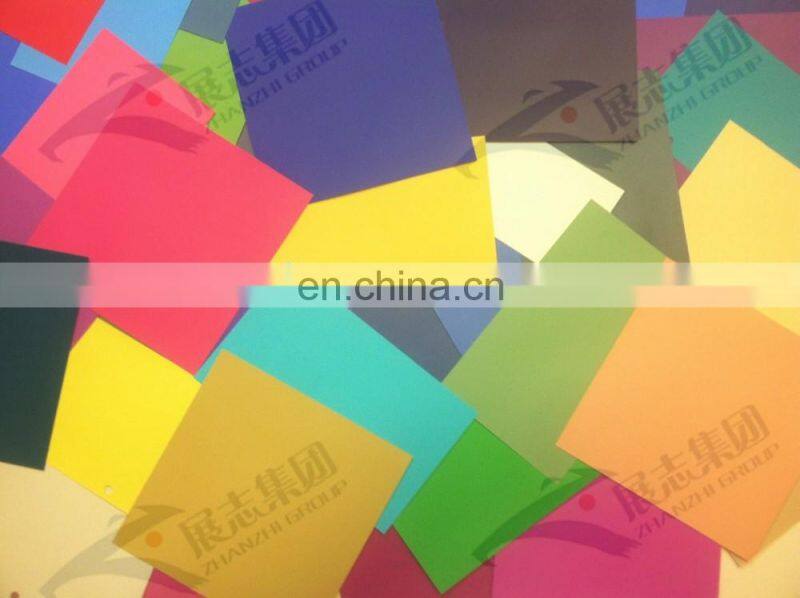

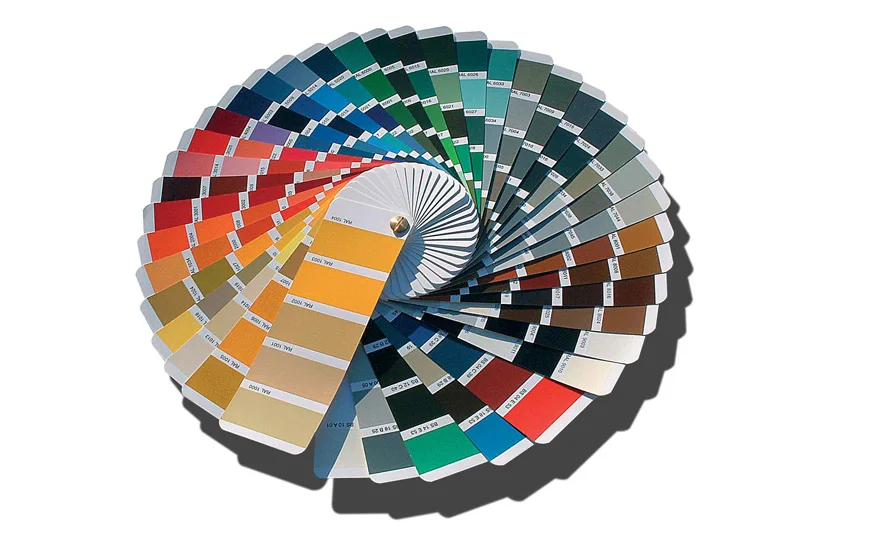

Color | All colors according to RAL color system |
Packing | Fully mill's sea-worthy export standard packing or as clients' requirement |
MOQ | Min trial order 25 MT each thickness, 1x20' per delivery |








Structure of Prepainted Galvanized Steel Coil:
*Topcoat (finishing) which provides color, pleasing appearance and appearance and a barrier film to enhance long-term durability.
*Primer coat to prevent undercutting of paint and enhance corrosion resistance.
*Pretreatment layer applied for good adhesion and to enhance corrosion resistance.
*Base steel sheet.


Production Facility and Production line of Prepainted Galvanized Steel Coil
Production Facility of Prepainted Galvanized Steel Coil
Pay-off Section
The operating principles and functions are similar to the galvanizing process, except that it uses a joiner to fasten the steel sheets together.
Clean, Pre-treatment and Chemical Coating
The GI coil is cleaned at the degreaser tank, where oil and dust are removed by chemical means. The white rust formed on the surface can be removed at the brush assembly. The clean coil will then be coated with conditioner and chromate at the conditioner and chromate tank respectively, to provide better adhesion and corrosion resistance ability.
Prime and Finish Coating
A basic layer of paint, called primer, is applied on the chemical coater in order to strengthen the corrosion resistance and paint adhesion ability. The requested colours and specifications of paint will be applied at both the top and bottom of the primer coated coil to complete the painting work.
Prime and Finish Oven
The primer coating is further cured at the primer oven and cooled at the primer water quench to ensure the painted coil is completely cured. Similarly, the finish oven and finish water quench also serve to ensure that the paint applied is completely cured and cooled.
A typical Horizontal PPGI Line would comprise with the following steps:
Process Flow Diagram:
Pay off reel → double cut shear → welder-notcher → entry accumulator → pre cleaning section → furnace → hot bridle → zinc pot → air knife → after cooler → water quench → dryer → skin pass mill → dryer → tension leveler → dryer → chemical coater → chemical oven → cooler → exit accumulator → oiler → exit shear → tension reel.


What are advantages of Prepainted Galvanized Steel Coil?
Major Characteristics of Prepainted Galvanized Steel Coil:
Because of permanently and successive zinc/iron alloy and color painting layers, prepainted galvanized steel offers many benefits than traditional steels.
>>Corrosion Resistance: the zinc and color coating surface protects the base steel not only by providing barrier to corrosion elements, but also by the sacrificial nature of the coating. Galvanized steel often remains in working order with little maintenance for 40 years or more.


>>Formability
it can be simply bend to parts with various requirements.


>>Aesthetic
Excellent Surface Appearance


>>Eco-friendly
Enviromental and non-pollution

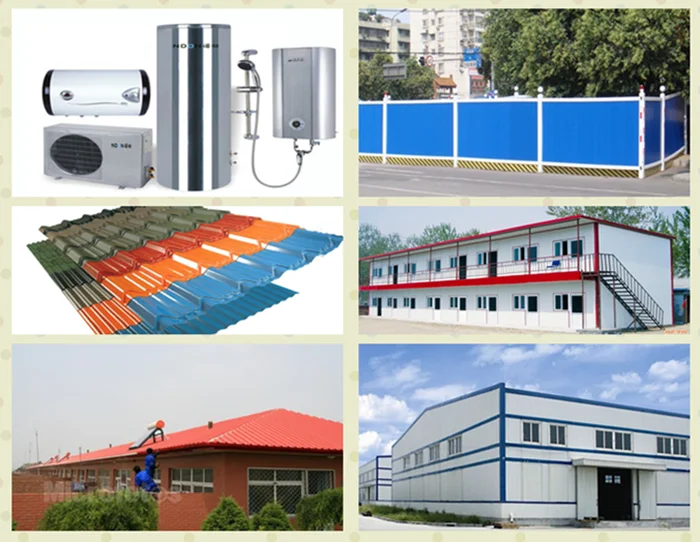

Application of Prepainted Galvanized Steel Coil
1. Contruction and building: roofing; ventilating duct; handrail; partition panel; etc.
2. Electric appliance: refrigerator; washing machine; microwave; DVD;etc.
3.Transportation:oil tank; road sign; etc.
4.Agriculture:barn; etc.
5.Others:vending machine; game machine; etc.

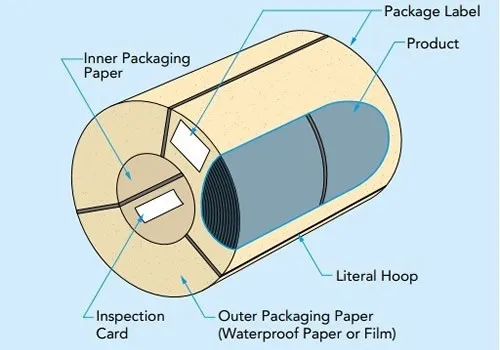

Tianjin Zhan Zhi Steel Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
Packaging Details:
a.Mill's Standard Export Sea-worthy Packing
b.As customer's requirement
Delivery Detail: Shipped in 15-35 days after payment

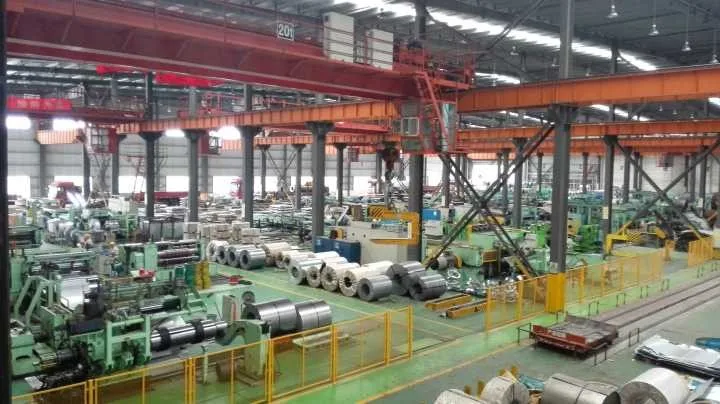

Factory


Workshop
Our Workshop


Our office and sparetime life




TIANJIN ZHAN ZHI STEEL CO., LTD
EXPORT,PROPERTY DEVELOPMENT, FINANCING INVESTMENT AND MANY OTHER ENTITY INDUSTRIES.


Our Services & Strength
We have very strong capbility of financing,prime services in steel stocking-processing and distribution
ZZ is rated and awarded as the LEADING STEEL ENTERPRISE by CHINA NATIONAL ASSOCIATION OF METAL MATERIAL TRADE(CAMT) ,which is an official organization under guidance of MINISTRY OF COMMERCE OF CHINA(MOFCOM)
--Top 100 comprehensive-service enterprises
--Top100 private-owned in Shanghai
--Top 50 steel trading enterprises in China
--Five stars Faith-creation enterprise in China
Q: What would you get from us ?
B. High and prime Quality products
C. Excellent Service:always online ,you can always get response within 24 hours
D. Free Samples to check the quality
E. Excellent shipping Freight ,fast delivery


Sincerely looking forward to your visiting and cooperation,best wishes for you !
---By all members of Zhan Zhi Group
