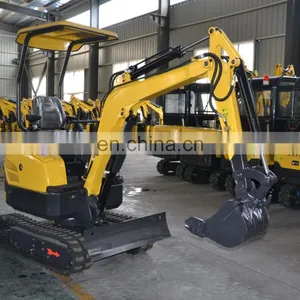

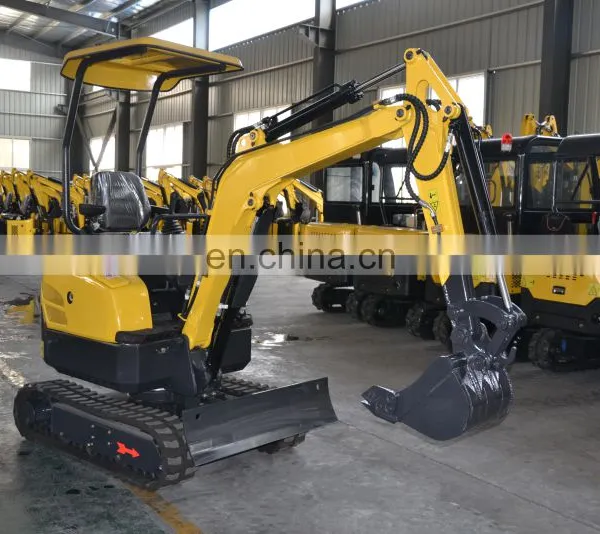

Price of NM-E17 Mini Excavator Three Cylinder Water Cooled Engine Mini Digger
US$ 11,230 - 11,275
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Nuoman
Place of Origin:
Shandong, China
Certification:
CE ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Price of NM-E18 Mini Crawler Excavator 1.8 Ton Mini Pelle With the CE CertificateUS$ 10,255 - 10,290MOQ: 1 Set -
Water Cooling Double Cylinder Engine Narrow Bucket Mini Excavator 1 Ton for SaleUS$ 5,000 - 8,000MOQ: 1 Set
-
Price of NM-E20 Mini Hydraulic Crawler Excavator Mini Digger With CEUS$ 10,879 - 11,405MOQ: 1 Set
-
NM-E21 Hydraulic Crawler Mini Excavator Smart Mini DiggerUS$ 14,440 - 14,495MOQ: 1 Set
-
Price of NM-E22 Mini Hydraulic Crawler Excavator 2.2 Ton Mini Pelle With Swing ArmUS$ 16,375 - 16,450MOQ: 1 Set
Brand Name
Nuoman
Place of Origin
Shandong, China
Certification
CE ISO
Condition
New
Moving Type
Crawler Excavator
Rated Speed
1.5km/h
Max Digging Radius
3470mm
Maximum Digging Depth
2150mm
Maximum Digging Height
3275mm
Bucket capacity
0.045m3
Operating Weight
2200kg
1.6 ton mini excavator for sale
Product Description
This excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.
specifictions
| Engine | Unit | Specificatin | |
| Vehicle weight | kg | 1550 | |
| Standard shovel capacity | m³ | 0.045 | |
| Working device form | backhoe | ||
| Model | Yanmar 3TNV70 | ||
| displacement | L | 0.854 | |
| Rated output power / speed | kw/r/min | 10/2200 | |
| Maximum torque | N.M/r/min | 51.9/1600 | |
| Maximum walking speed | km/h | 1.5 | |
| Gyration speed | rpm | 11 | |
| Max Climb Capability | 30° | ||
| Excavating power of dug | KN | 10.5 | |
| Bucket excavating force | KN | 6.5 | |
| Maximum traction | KN | 13.5 | |
| Ground specific pressure | kgf/cm² | 35 | |
| Caterpillar material | rubber | ||
| type of rising device | Butter cylinder | ||
| pump form | gear pump | ||
| Working pressure | MPA | 16 | |
| flow | L/min | 23.3 | |
| Hydraulic tank capacity | L | 15.3 | |
| Maximum engine oil capacity | L | 2.8 | |
| Fuel tank capacity | L | 16.4 | |
| Dimendions | Unit | Specificatin | |
| Wheelbase | mm | 1130 | |
| Caterpillar chief | mm | 1450 | |
| Platform clearance | mm | 437 | |
| Platform end radius of gyration | mm | 740 | |
| Chassis width | mm | 1130 | |
| track width | mm | 230 | |
| Track Height | mm | 320 | |
| Transport length | mm | 3160 | |
| Full vehicle height | mm | 2377 | |
| Operating range | Unit | Specificatin | |
| Maximum ground mining radius | mm | 3470 | |
| Maximum mining depth | mm | 2150 | |
| Maximum mining height | mm | 3275 | |
| Maximum unload height | mm | 2310 | |
| Maximum vertical excavator depth | mm | 1740 | |
| Minimum radius of revolution | mm | 1440 | |
| Maximum lift height of earth shovel | mm | 262 | |
| Maximum digging depth of earth shovel | mm | 192 | |
