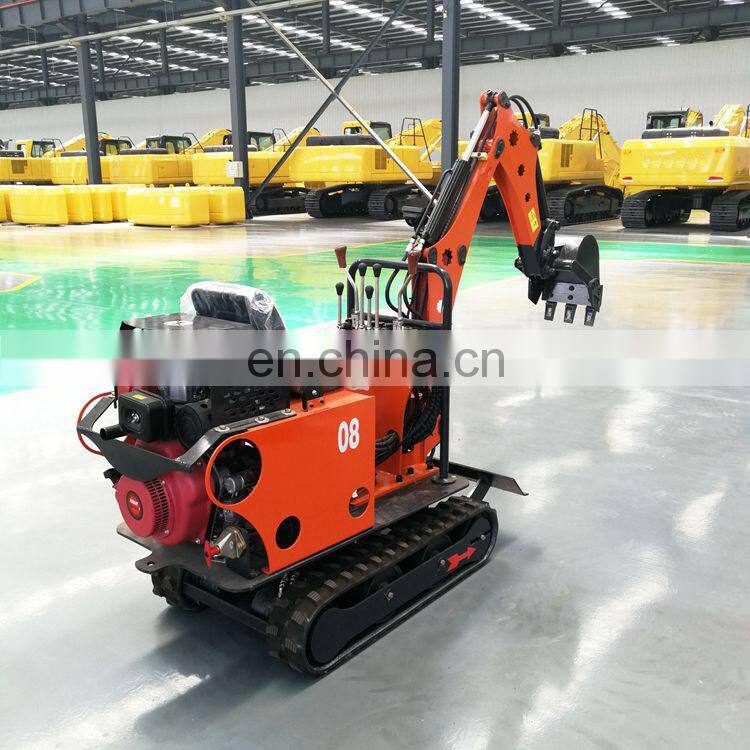

NMMG-E08 Mini Pelle 800kg Excavator 08t Mini Excavator

FOB Price

US$ 3,786 - 3,846 / Set

1 Set(Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	nuoman	Place of Origin	Shandong, China
Certification	CE ISO
Condition	New	Moving Type	Crawler Excavator
Rated Speed	1.5km/h	Max Digging Radius	2450mm
Maximum Digging Depth	1200mm	Maximum Digging Height	2350mm
Bucket capacity	0.02m3	Operating Weight	800kg

Product Description

As an experienced manufacturing company with a group of professional and responsible employees,all our product descriptions on all our details pages are guaranteed to be accurate!!!

Low fuel consumption, wide scope of operation, suitable for loose land in vegetable shed, landscaping in municipal departments, planting of trees and pits in orchard nurseries, broken concrete pavement, agitation of sand and stone, construction of narrow space, etc., Can equipped with rotary drilling, broken hammer, loading bucket, grab, etc., reduce maintenance and operation costs, liberate labor force, improve mechanization, low investment, high return.

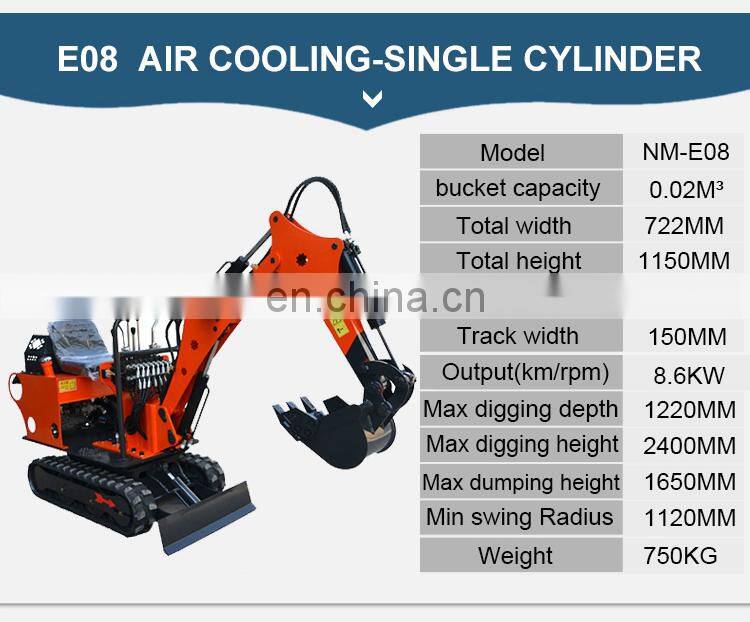

Technology parameter

Model				NM-E08
Type of tracks				Rubber

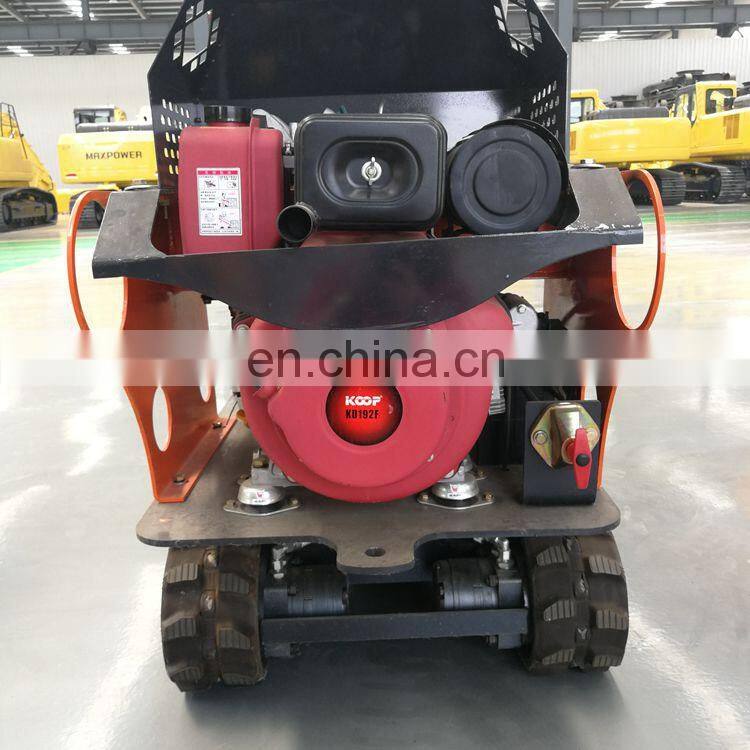

Engine	Model			KP-192F
	Output		HP (kW)/rpm	11.5 (8.6) / 2200
	Displacement		cu.in. (cc)	20 (569)

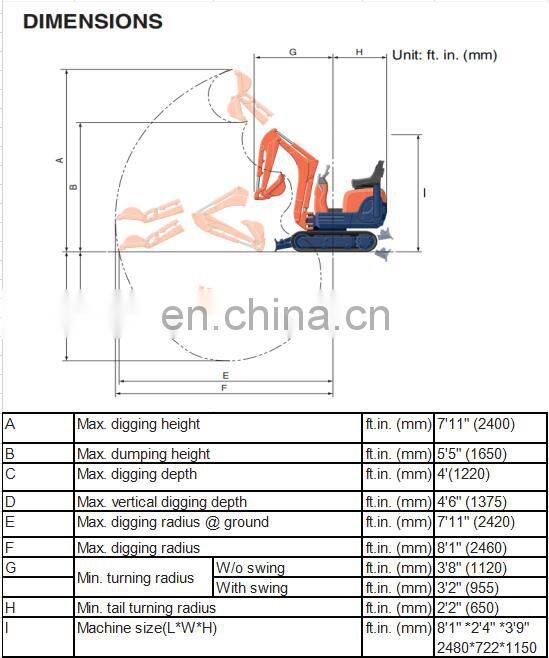

Dimensions	Overall length		ft.in. (mm)	8'2" (2480)
	Overall height		ft.in. (mm)	3'9" (1150)
	Overall width		ft.in. (mm)	2'6" (722)
	Platform clearance		in. (mm)	15" (380)
Hydraulic system	Pump capacity		gpm. (l/min)	5.55 (21.0)
	Auxiliary hydraulic flow		gpm. (l/min)	5.55 (21.0)
	Max. breakout force	Bucket	kn. (kgf)	7.5 (760)
		Arm	lbs. (kgf)	1010 (460)
Drive system	Travel speed		mph (km/h)	1.2 (2.0 )
	Max. traction force		kn. (kgf)	6.5 (660)
	Tumbler distance		ft.in. (mm)	2'72" (800)
	Crawler length		ft.in. (mm)	3'8" (1140)
	Shoe width		in. (mm)	7.1" (180)
	Ground contact pressure		Kpa(kgf/cm2)	20 (0.20)
Swing system	Unit swing speed		rpm	8.3
	Boom swing angle	Left	degree	55
		Right	degree	60
Blade	Dimensions	Width	in. (mm)	2'4" / (700 )
		Height	in. (mm)	7.9" (200)
	Max. lift above ground		in. (mm)	8.0" (210)
	Max. drop below ground		in. (mm)	4.9" (125)
Hydraulic oil (reservoir/system)			gpm. (l/min)	3.30 / (12.5)
Fuel reservoir			gpm. (l/min)	3.17 (12.0 )
Operating weight			lbs.(kg)	1804 (820 )
Including operator’s weight 175 lbs.

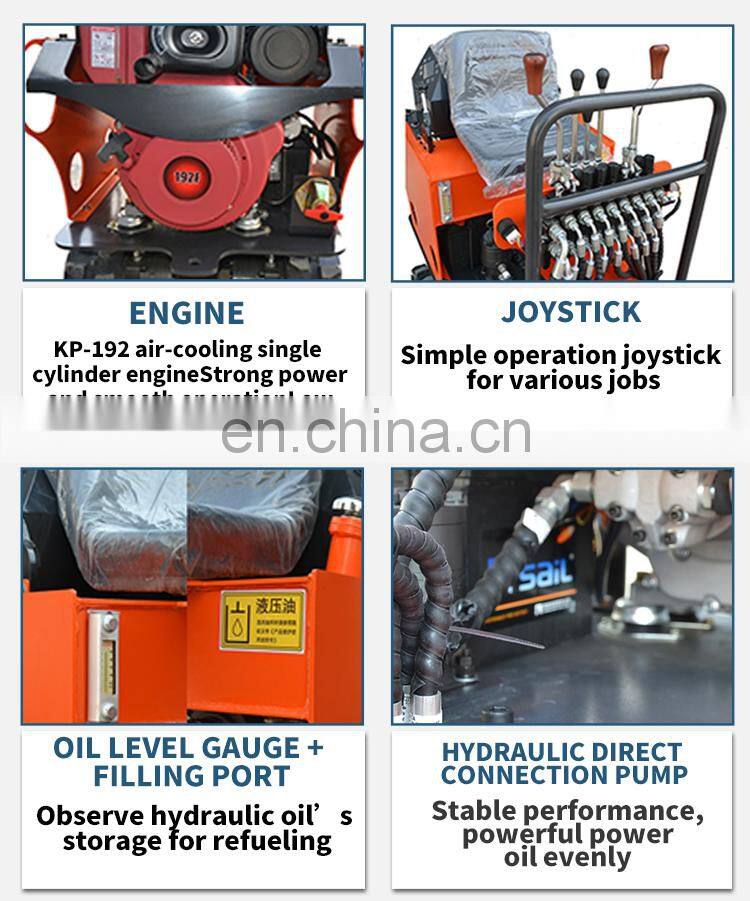

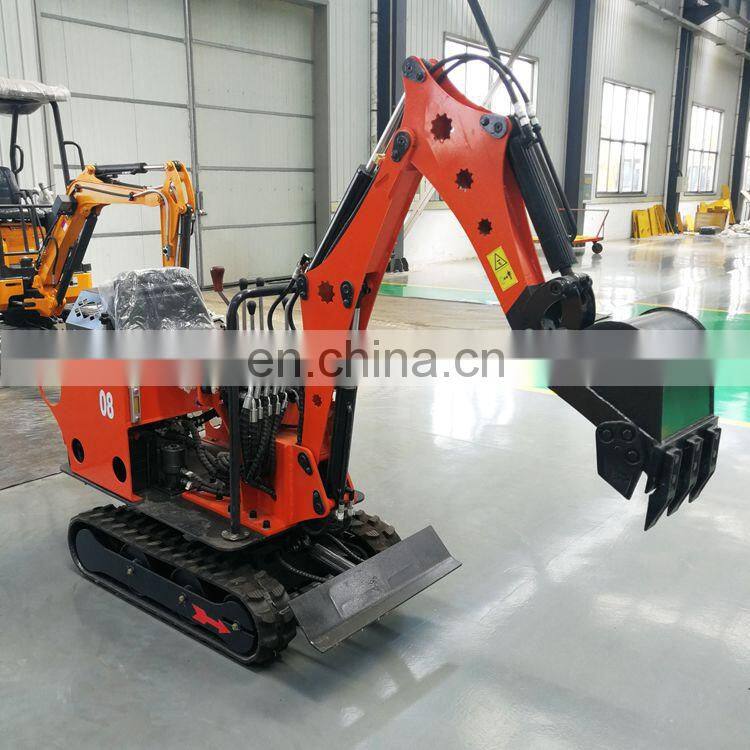

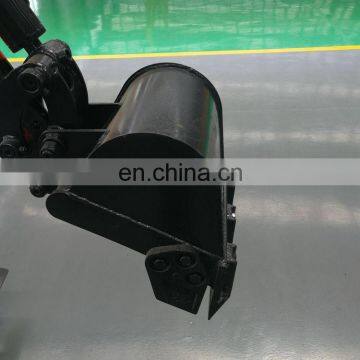

Detailed Images
